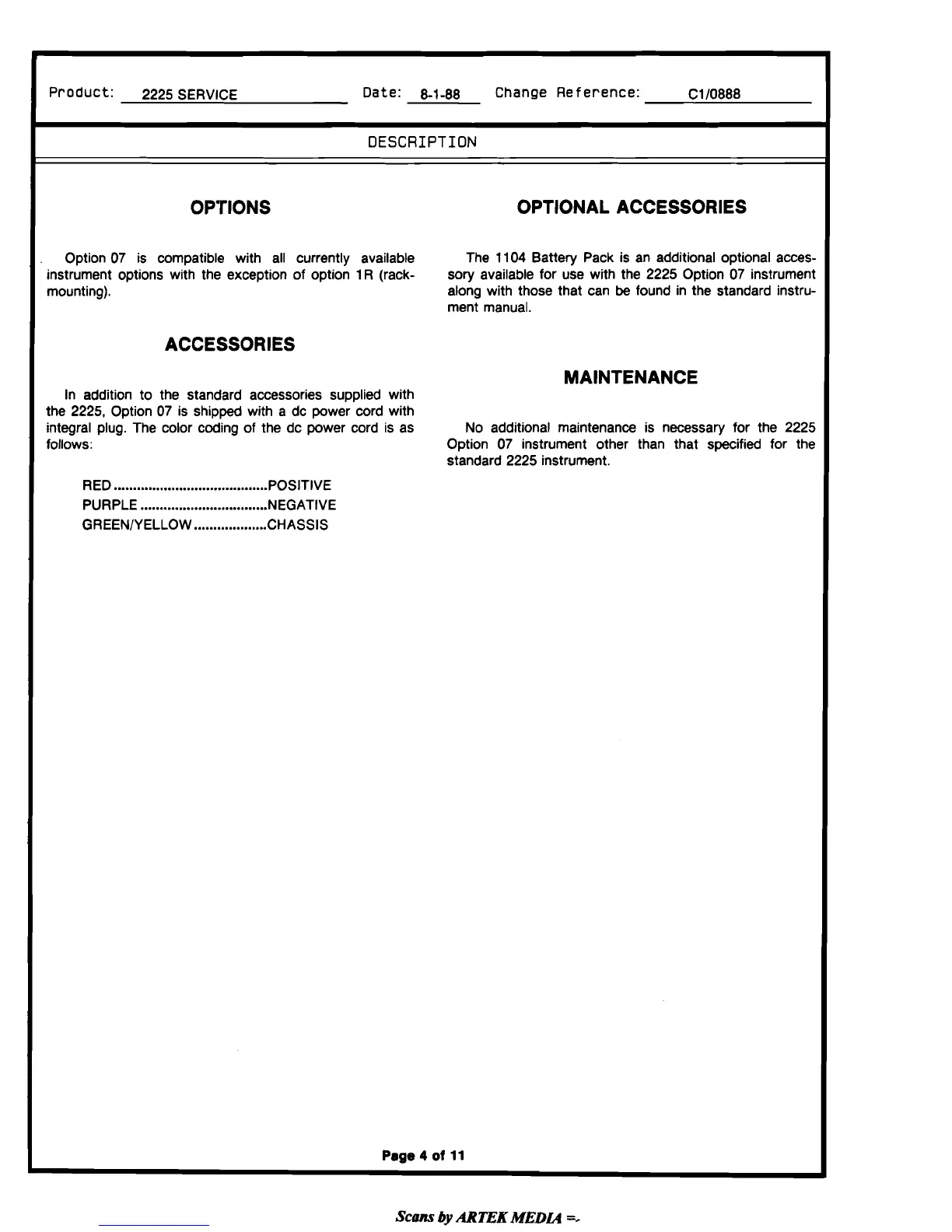

TEK 2225 - Page 206

L
Product: 2225 SERVICE Date: 8-1-88 Change Reference: C110888
DESCRIPTION
OPTIONS OPTIONAL ACCESSORIES
Option 07 is compatible with all currently available The 1104 Battery Pack is an additional optional acces-
instrument options with the exception of option 1 R (rack-
sory available for use with the
2225 Option 07 instrument
mounting).
along with those that can
be found in the standard instru-
ment manual.
ACCESSORIES
MAINTENANCE
In addition to the standard accessories supplied with
the
2225, Option 07 is shipped with a dc power cord with
integral plug. The color coding of the dc power cord is as
No additional maintenance is necessary for the
2225
follows:
Option
07 instrument other than that specified for the
standard
2225 instrument.
RED
........................................ POSITIVE
PURPLE
................................. NEGATIVE
GREENIYELLOW ................... CHASSIS
Page 4 of 11
