Service Manual
TKS1 710 C – TKS 850 C
Service Manual: MSWM15031 - 3 -

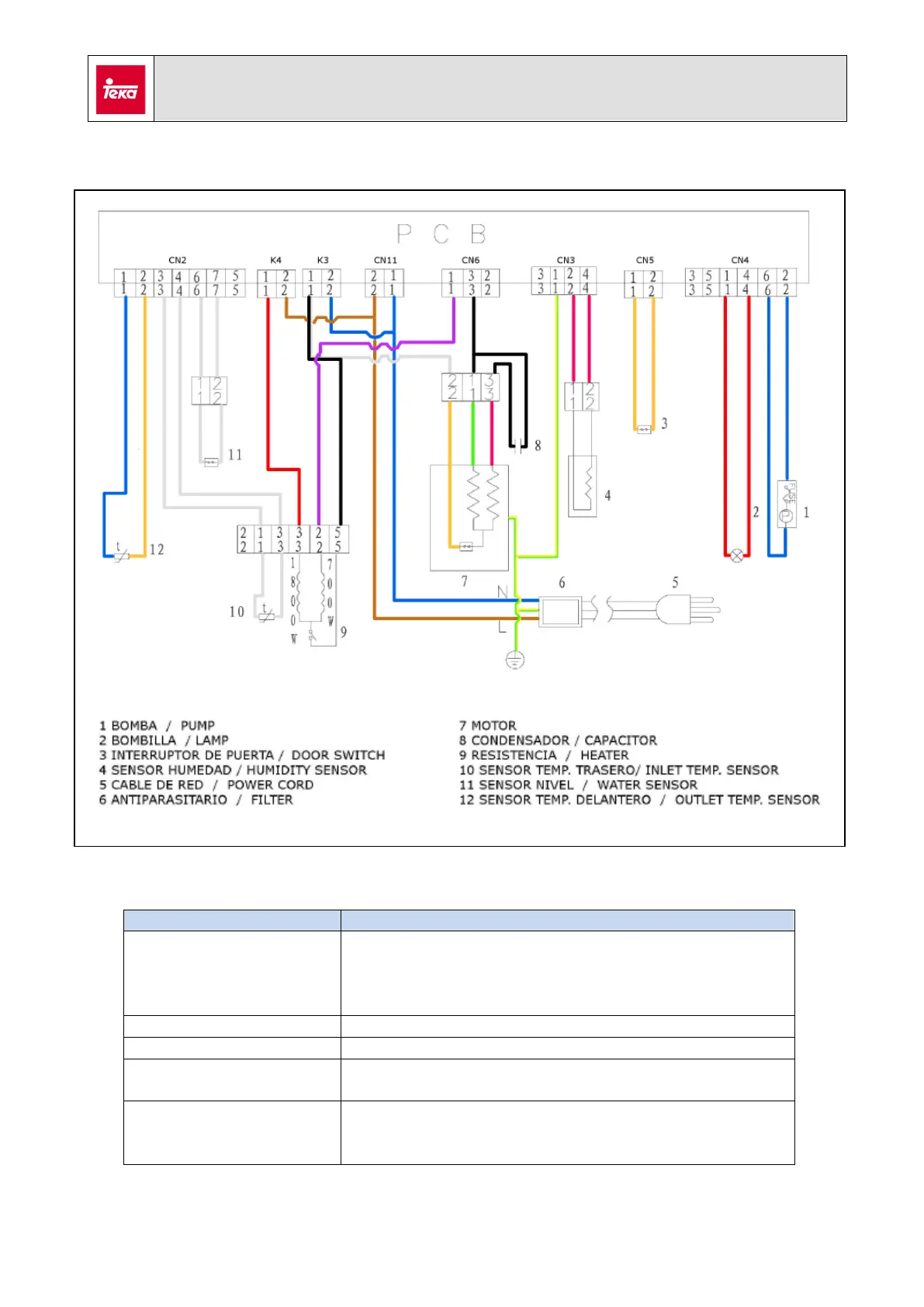

5. Connections and wiring diagram.
6. Components testing.
Components
Measure
Dryer temperature sensor
5℃:12KΩ 25℃:4.8KΩ
10℃:9.5KΩ 30℃:3.9KΩ
15℃:7.5KΩ 35℃:3.1KΩ
20℃:6KΩ
Heater sensor
15ºC ≈ 65KΩ
Motor capacitor
7.5 uF ±10%
Drain pump
Voltage: 220 - 240 V
Windings ≈0,78KΩ±10%
Motor
Supply voltage: 220 - 240 V
Main winding (Green-Orange) ≈25Ω±10%
Secondary winding (Red-Orange) ≈25Ω±10%
