2.Connect it to the branch drain pipe of the trough.
Electrical Connection
- As the maximum current through the unit is 10A when you are using its heating function,
please make sure the power supply system (current, power voltage and wire) at your
home can meet the normal loading requirements of the electrical appliances.
- Please connect the power to a socket which is correctly installed and properly earthed.
- Make sure the power voltage at your place is same to that in the machine's rating label.
- Power plug must match the socket and cabinet must be properly and effectively earthed.
- Do not use multi-purpose plug or socket as extension cord.
- Do not connect and pull out plug with wet hand.
- When connecting and pulling out the plug, hold the plug tightly and then pull it out. Do
not pull power cord forcibly.
- If power cord is damaged or has any sign of being broken, special power cord must be
selected or purchased from its manufacturer or service center for replacement.
Min.60cm
Max.100cm
Position outlet hose properly so that the floor will not be damaged by water leakage.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
- If outlet hose is too long, do not force
it into washing machine as it will cause
abnormal noises.
Notes:
If the machine has outlet hose support, please install it like the following pictures.
Install Washing Machine
Max.100cm
Min.60cm

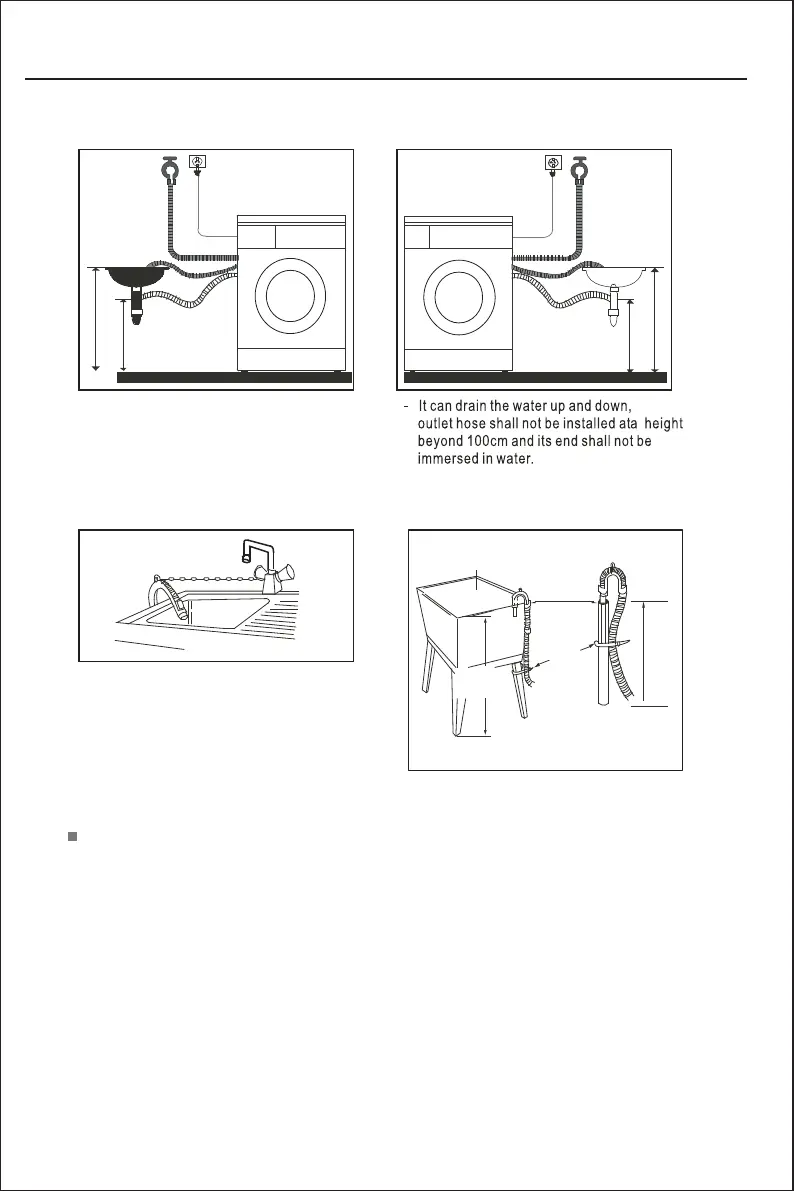

- When installing outlet hose, fix it
properly with a rope.
- Position outlet hose properly so that
the floor will not be damaged by water
leakage.
To Next Page
