117-0815-0028

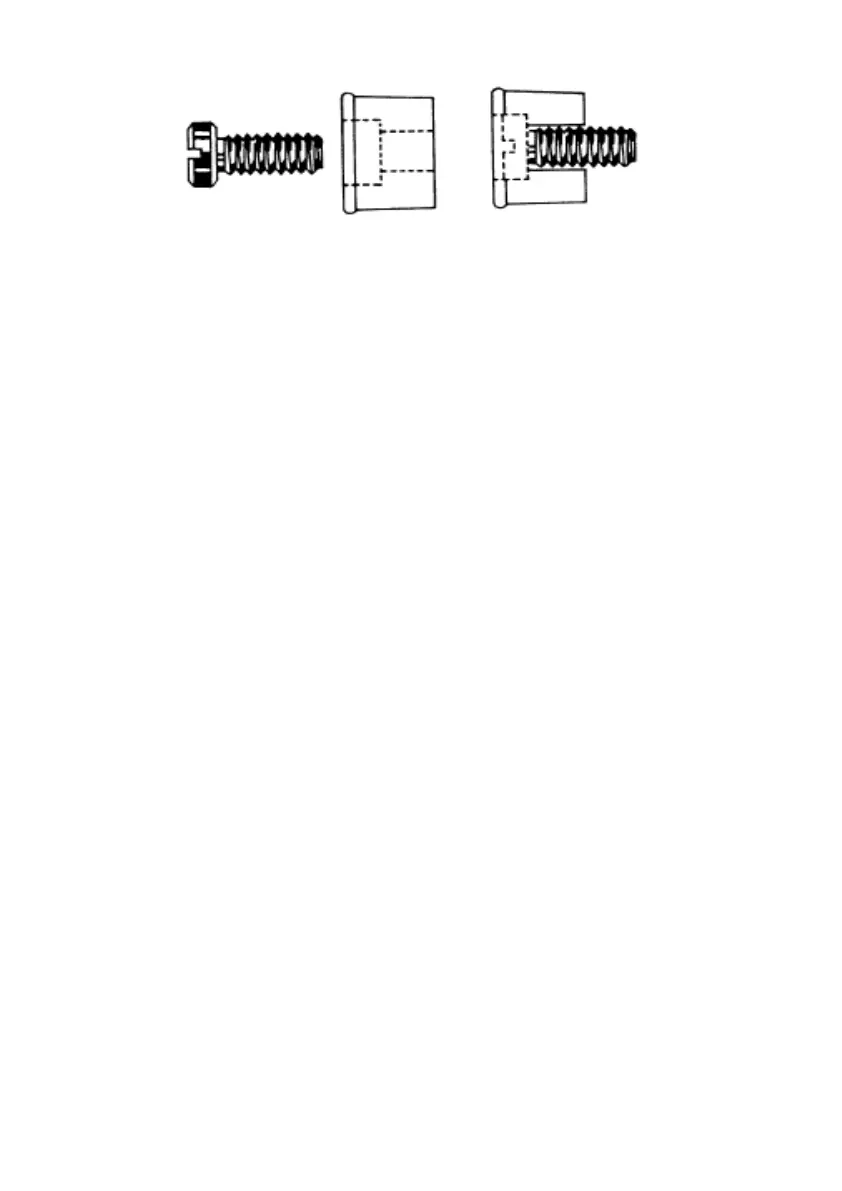

SPECIAL INSTRUCTIONS FOR COLE JAW RUBBERS
WARNING!!!
DO NOT EXCEED 600 RPM WITH COLE JAWS OR 800 RPM WITH MINI
COLE JAWS IN ANY OPERATIONAL MODE.
OUT OF BALANCE STOCK MUST BE TURNED AT THE SLOWEST
SPEED POSSIBLE BELOW 600 RPM.
DO NOT ATTEMPT TO USE THESE JAWS IF YOUR LATHE DOES NOT
HAVE A USABLE SPEED OF 600 RPM OR BELOW.
MAKE SURE THAT JAW SLIDES DO NOT PROJECT BEYOND CHUCK
BODY WHEN JAWS ARE EXPANDED.
DO NOT STAND DIRECTLY OPPOSITE REVOLVING BOWL. STAND ON
ONE SIDE INSTEAD.
USE SPECIAL OPTIONAL WOODWORM SCREW DESIGNED FOR COLE
JAWS. THE NORMAL WOODWORM SCREW CAN NOT BE USED WITH
THE COLE JAWS.
THE 25MM AND PIN JAW SET CAN NOT BE MOUNTED ON THE MINI
COLE OR COLE JAWS.
OPERATIONAL MODES
A. Contracting and Dovetail Modes
Both the contracting and dovetail modes are available when the other
accessory jaw sets (e.g. 50mm, 75mm,100mm) are mounted onto the Cole
Jaws and used in the normal way. The longer M6x20mm screws (not
providedwith the Cole Jaws) must be used to secure the optional jaws to the
Cole Jaws. Follow the usual operational directions and safety requirements
for the particular jaw set used (e.g. 50mm, 75mm, 100mm).
THESE INSTRUCTIONS AND SAFETY REQUIREMENTS CAN BE FOUND
IN THE ASSOCIATED JAW INSTRUCTION BOOKLET.
B. Re-Chucking Using The Cole Jaw Facility
The Cole Jaw segments can be mounted onthe chuck by themselves without
the use of any other jaw sets. Normal M6x10mm Countersunk screws
provided with your Teknatool chuck to mount the other accessory jaw sets
can be used.
