C
LEAR
P
ATH
-SC
U
SER
M
ANUAL
R
EV
.
1.36
55
T
EKNIC
,
I
NC
. T
EL
.
(585)
784-7454
S
OFT
S
COPE
O
VERVIEW
The ClearView Soft Scope takes real-time streaming data from your
ClearPath-SC motor and plots it on a scope display in an intuitive, easy-to-
interpret manner. The Soft Scope can display your motor’s actual torque
output, position error, commanded velocity, acceleration, and more. This
is a great tool for engineers, technicians, or maintenance professionals
tasked with the analysis or troubleshooting of motors, motion, and
mechanical performance.

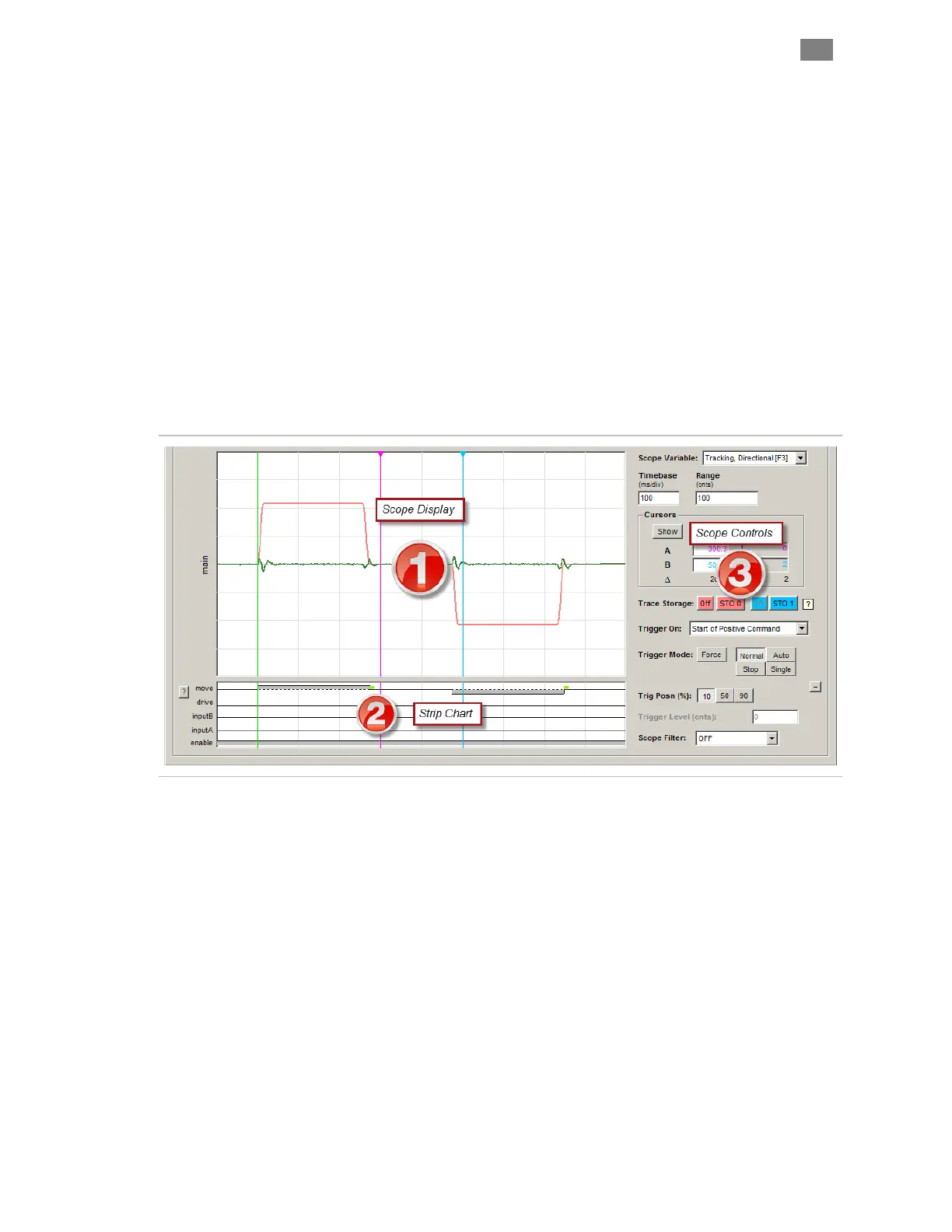

The Soft Scope consists of three main sections: the Scope Display (1),
Strip Chart (2), and Scope Controls (3). Together, these components
emulate much of the functionality of a digital storage oscilloscope and
data analyzer.
ClearView Soft Scope
S
OFT
S
COPE
F
EATURES
• 13 scope variables that can be plotted in real time
• Four trigger modes
• Adjustable timebase, range, and trigger position
• Simultaneously display two stored traces + one live trace
• 13 trigger presets (Example: trigger at end of settled move)
• Interactive cursors for precise timing and amplitude
measurements
• Strip Charts for a consolidated view of motor status, input
states, and move timing
