tekton 24340 - Torque Wrench Specifications

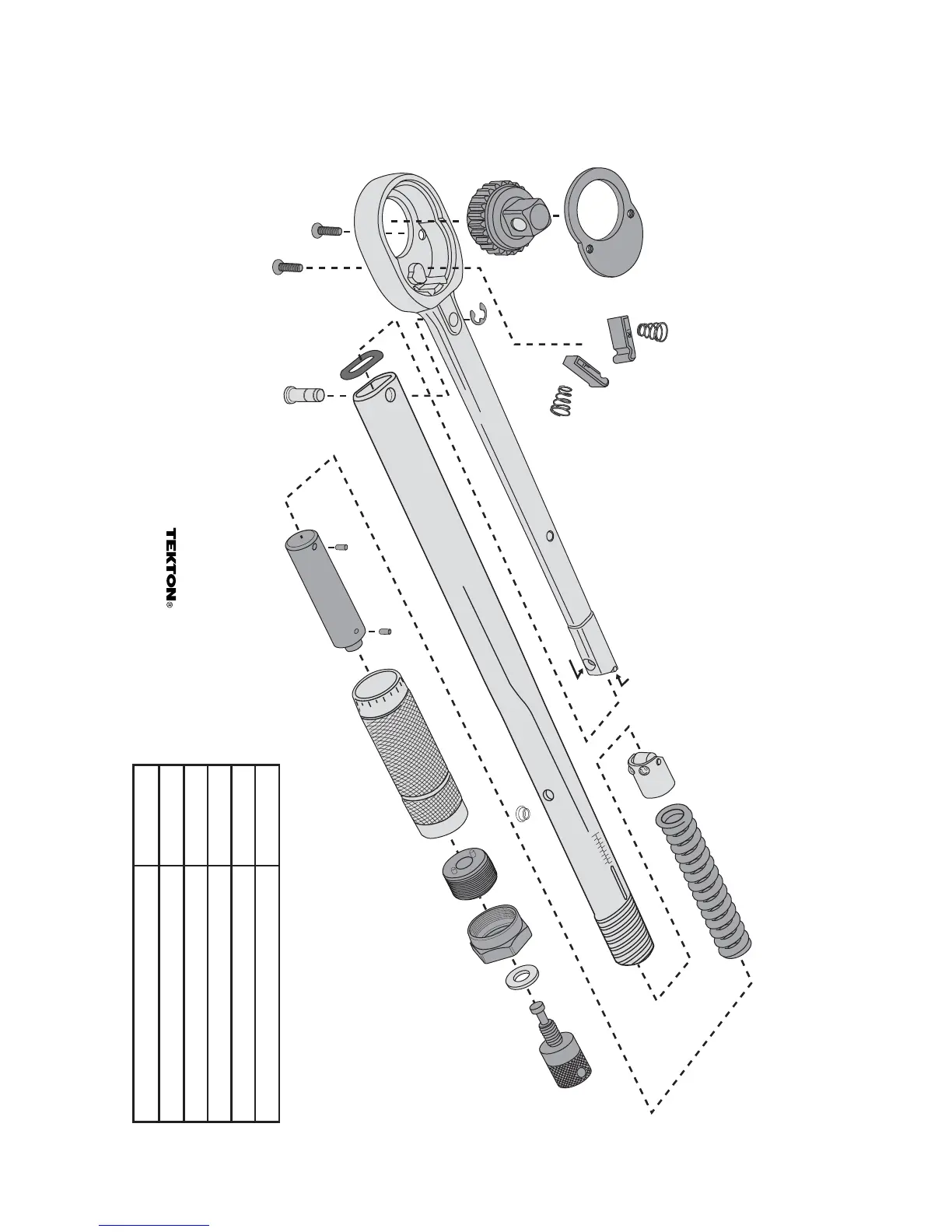

NOTE: Exploded view diagram provided for illustration purposes only. Do not disassemble any part of torque wrench. There are no user serviceable parts on
or inside wrench. Parts shown and assembly may differ slightly based on model.
0
2
4
RATCHET PAWLS AND SPRINGS
RATCHET ARM
RETAINING
RING
HANDLE BODY
ROLLER BEARING
ROLLER PIN
ADJUSTMENT SPRING
RATCHET FACE PLATE
RATCHET GEAR/DRIVE
RATCHET SCREWS
PIVOT PIN
RUBBER O-RING
LOCKING SHAFT
KNURLED HANDLE
LOCKING LUG ASSEMBLY
WASHER
LOCK NUT
POMMEL NUT
CALIBRATION
SCREW
PIN
PIN
PLASTIC
CAP
Drive 1/2 in. Ratchet 24 Tooth Length 25 in. Dual Range 25 - 250 .-lb. and 33.9 - 338.9 Nm Increment 1 .-lb. (1.35 Nm) Accuracy +/- 4%
© 2017 TEKTON.COM
3707 Roger B Chaffee SE Grand Rapids, MI 49548 Made in Taiwan
