DO NOT
TURN
page 10

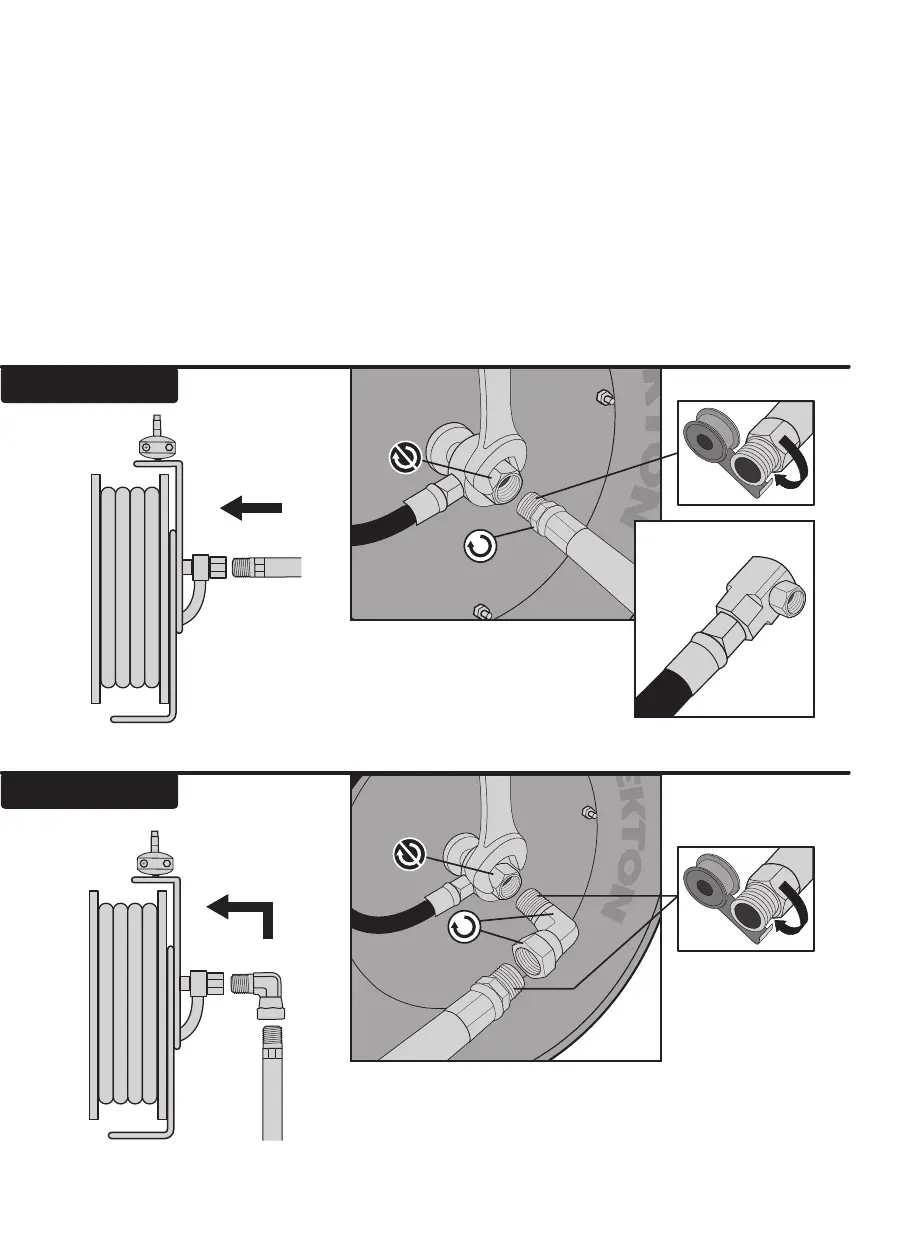

ATTACHING INCOMING AIR
For maximum leak-free performance, air inlet valve is made of solid brass. Brass is a soft metal and overtightening or rough
handling can cause damage or breakage. Use care when working with air inlet valve. For a tight, leak-free connection, follow all
instructions carefully.
Option 1
Wrap incoming hose end with thread sealing tape. AIR INLET VALVE CANNOT ROTATE, do not attempt to turn. To prevent
rotation, hold air inlet valve with wrench to stabilize it while connecting air hose. Thread air hose into air inlet valve. Using second
opposing wrench, tighten connection just until snug.
Option 2
Locate included 90˚ connector. Wrap threaded end with thread sealing tape. AIR INLET VALVE CANNOT ROTATE, do not
attempt to turn. To prevent rotation, hold air inlet valve with wrench to stabilize it while connecting air hose. Thread 90˚ connector
into air inlet valve. Using second opposing wrench, tighten connection just until snug. Next, wrap incoming hose end with thread
sealing tape. Thread into swivel end of 90˚ connector. Using two opposing wrenches, tighten connection just until snug.
To ensure optimum performance and efficiency, check all connections for leaks. With air system pressurized, brush
each connection with soapy water. Inspect closely. Air bubbles indicate leaking air. Tighten any leaking fittings.
OPTION 1
Incoming
Air
0º
OPTION 2
Incoming
Air
90º
46848
air inlet design
DO NOT
TURN
