tekton 46845 - Page 2

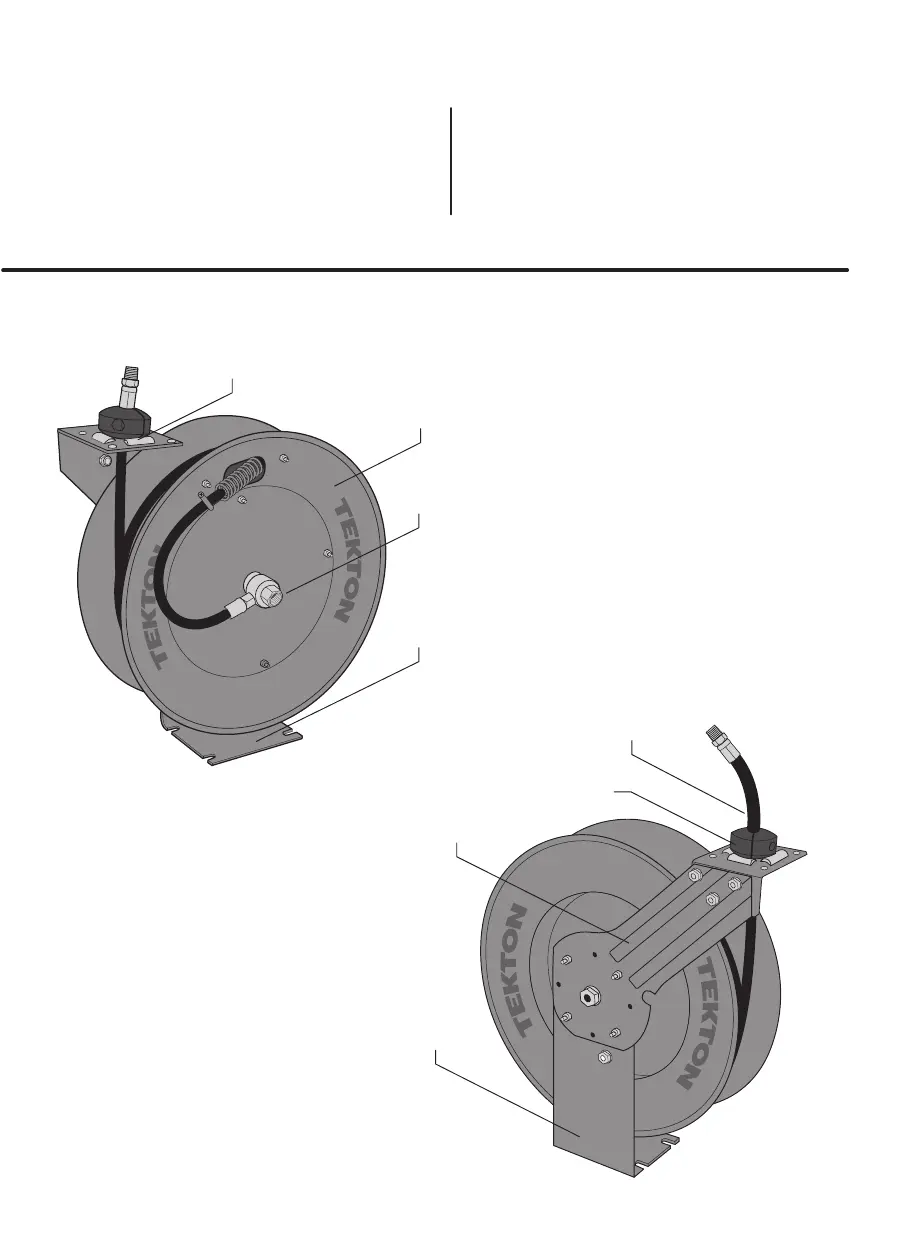

Air Hose
Hose Stopper
page 2
For complete parts diagram, see
page 6-7, centerfold of book
Guide Arm
Support Leg
Air Inlet Valve
Guide Roller
Collar
Drum
Base
Model #
46848
• Air Hose Size: 1/2" x 50'
• Reel Air Inlet (F): 1/2" NPT
• Air Hose Outlet (M): 1/2" NPT
• Max Working Pressure: 250 PSI
• Maximum Air Flow: 35 CFM
Model #
46845
• Air Hose Size: 3/8" x 50'
• Reel Air Inlet (F): 1/4" NPT
• Air Hose Outlet (M): 1/4" NPT
• Max Working Pressure: 250 PSI
• Maximum Air Flow: 25 CFM
