MAKING ADJUSTMENTS

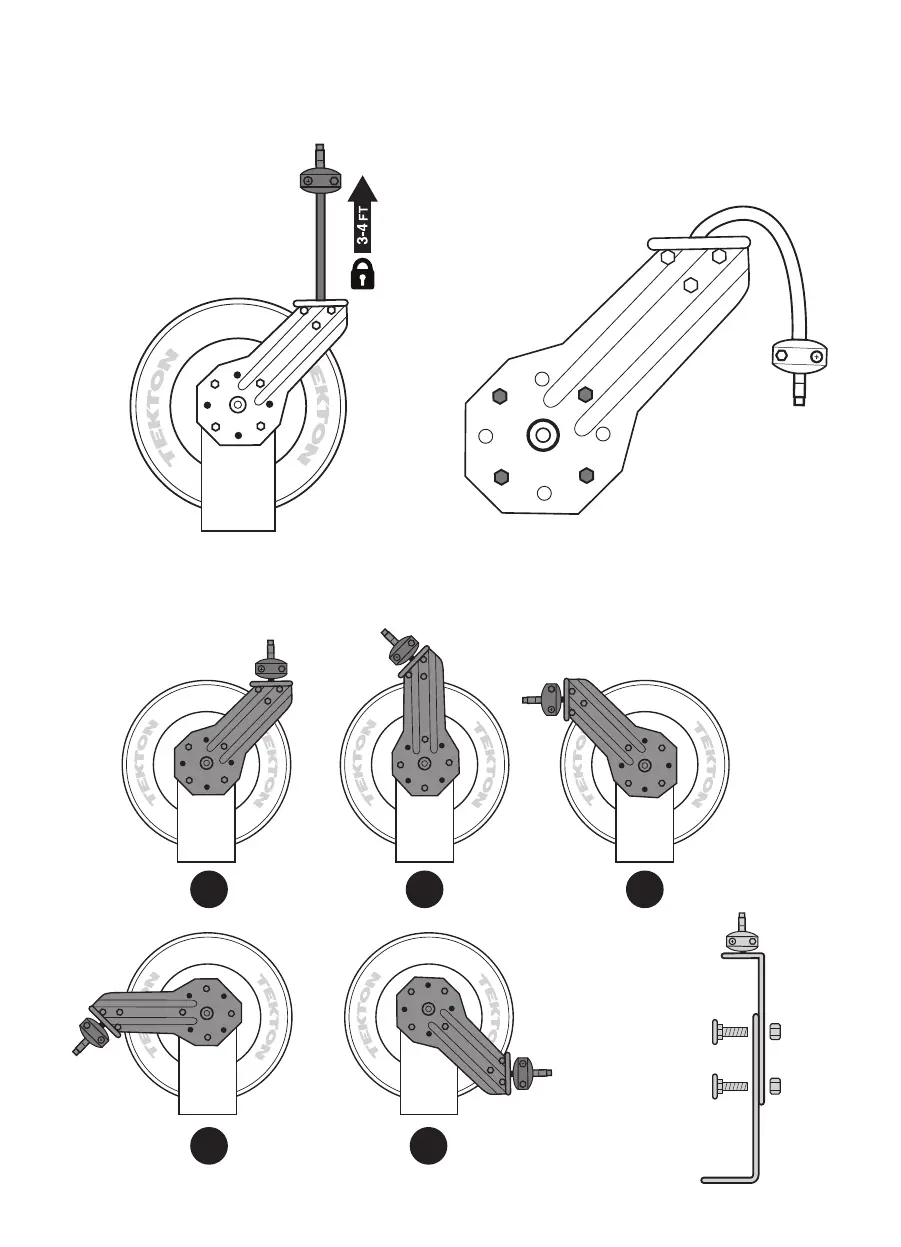

Adjusting the Guide Arm
1. Pull out 3-4 feet of hose and
lock reel in position.
3. Rotate guide arm to one of five positions desired. Replace four bolts and tighten.
2. Remove the four bolts connecting
guide arm to base.
1
2
34
Assemble bolts
as shown
BASE
GUIDE ARM
OUTSIDEINSIDE
1
4 5
2 3
