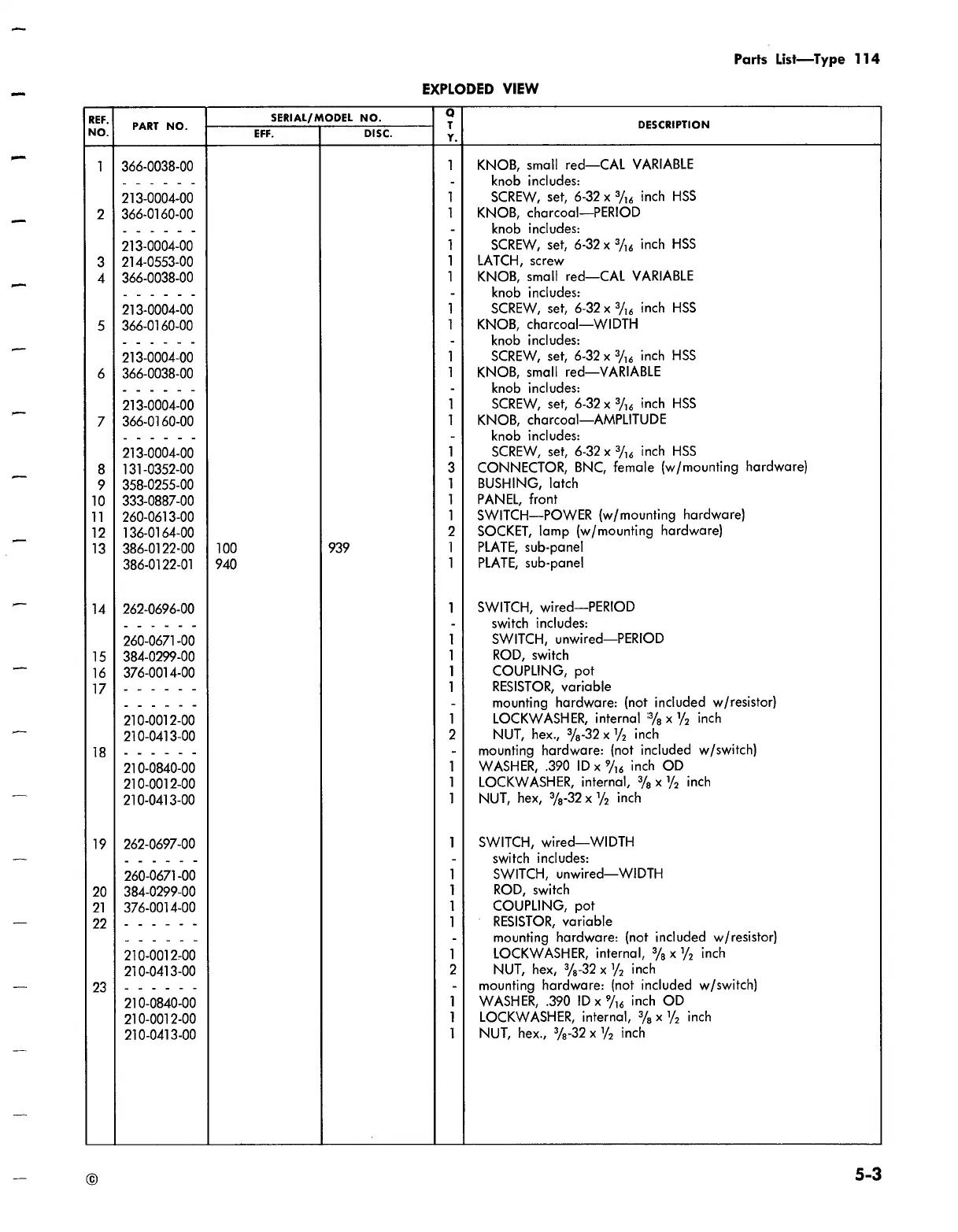

Parts List — Type 114
EXPLODED VIEW
REF.
NO.
PART NO.
SERIAL/MODEL NO.
Q
T
Y.
DESCRIPTION
EFF. DISC.
1
366-0038-00
1
KNOB, small red — CAL VARIABLE
-
knob includes:
213-0004-00
1
SCREW, set, 6-32 x 3 / ](S inch HSS
2 366-0160-00
1
KNOB, charcoal — PERIOD
-
knob includes:
213-0004-00
1
SCREW, set, 6-32 x 3 / 16 inch HSS
3
214-0553-00
1
LATCH, screw
4
366-0038-00
1
KNOB, small red — CAL VARIABLE
-
knob includes:
213-0004-00
1
SCREW, set, 6-32 x 3 / I6 inch HSS
5
366-0160-00
1
KNOB, charcoal — WIDTH
-
knob includes:
213-0004-00
1
SCREW, set, 6-32 x 3 / 16 inch HSS
6 366-0038-00
1
KNOB, small red — VARIABLE
-
knob includes:
213-0004-00
1
SCREW, set, 6-32 x 3 / 16 inch HSS
7
366-0160-00
1
KNOB, charcoal — AMPLITUDE
-
knob includes:
213-0004-00
1
SCREW, set, 6-32 x 3 / 16 inch HSS
8 131-0352-00
3
CONNECTOR, BNC, female (w/mounting hardware)
9
358-0255-00
1
BUSHING, latch
10
333-0887-00
1
PANEL, front
11 260-0613-00
1
SWITCH — POWER (w/mounting hardware)
12 136-0164-00
2
SOCKET, lamp (w/mounting hardware)
13
386-0122-00 100
939
1
PLATE, sub-panel
386-0122-01 940
1
PLATE, sub-panel
14 262-0696-00
1
SWITCH, wired — PERIOD
-
switch includes:
260-0671-00
1
SWITCH, unwired — PERIOD
15
384-0299-00
1
ROD, switch
16 376-0014-00
1
COUPLING, pot
17
1
RESISTOR, variable
-
mounting hardware: (not included w/resistor)
210-0012-00
1
LOCKWASHER, internal % x'/ 2 inch
210-0413-00
2
NUT, hex., 3 / 8 -32 x ’ / 2 inch
18
-
mounting hardware: (not included w/switch)
210-0840-00
1
WASHER, .390 ID x inch OD
210-0012-00
1
LOCKWASHER, internal, % x ’ / 2 inch
210-0413-00
1
NUT, hex, %-32 x y 2 inch
19
262-0697-00
1
SWITCH, wired — WIDTH
-
switch includes:
260-0671-00
1
SWITCH, unwired — WIDTH
20
384-0299-00
1
ROD, switch
21
376-0014-00
1
COUPLING, pot
22
1
RESISTOR, variable
-
mounting hardware: (not included w/resistor)
210-0012-00
1
LOCKWASHER, internal, 3 / 8 x ’ / 2 inch
210-0413-00
2
NUT, hex, %-32 x ’ / 2 inch
23
-
mounting hardware: (not included w/switch)
210-0840-00
1
WASHER, .390 ID x ’ / 16 inch OD
210-0012-00
1
LOCKWASHER, internal, % x y 2 inch
210-0413-00
1
NUT, hex., %-32 x '/ 2 inch
5-3
