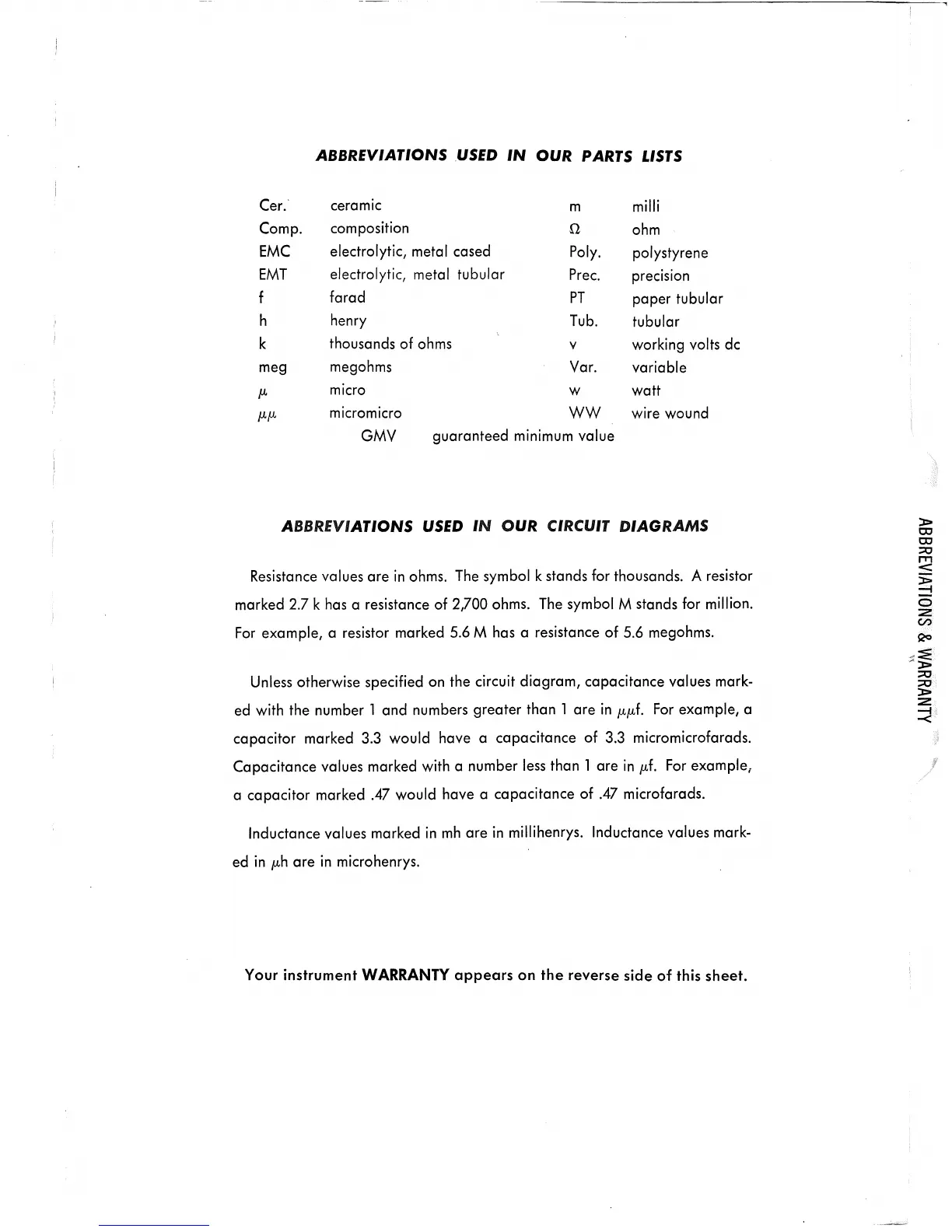

ABBREVIATIONS USED IN OUR PARTS LISTS
Cer.
ceramic
m
milli
Comp.
composition
a
ohm
EMC
electrolytic, metal cased
Poly.
polystyrene
EMT
electrolytic, metal tubular
Prec.
precision
f
farad
PT
paper tubular
h
henry
Tub.
tubular
k thousands of ohms
V
working volts dc
meg megohms Var.
variable
micro
w
watt
{ 1 [X
micromicro
WW
wire wound
GMV guaranteed minimum value
ABBREVIATIONS USED I N OUR C IR C U IT D IA G R A M S
Resistance values are in ohms. The symbol k stands for thousands. A resistor
marked 2.7 k has a resistance of 2/00 ohms. The symbol M stands for million.
For example, a resistor marked 5.6 M has a resistance of 5.6 megohms.
Unless otherwise specified on the circuit diagram, capacitance values mark
ed with the number 1 and numbers greater than 1 are in [ifxt For example, a
capacitor marked 3.3 would have a capacitance of 3.3 micromicrofarads.
Capacitance values marked with a number less than 1 are in fii. For example,
a capacitor marked .47 would have a capacitance of .47 microfarads.
Inductance values marked in mh are in millihenrys. Inductance values mark
ed in [xh are in microhenrys.
Your instrument WARRANTY appears on the reverse side of this sheet.
ABBREVIATIONS & WARRANTY
