Tektronix 502A

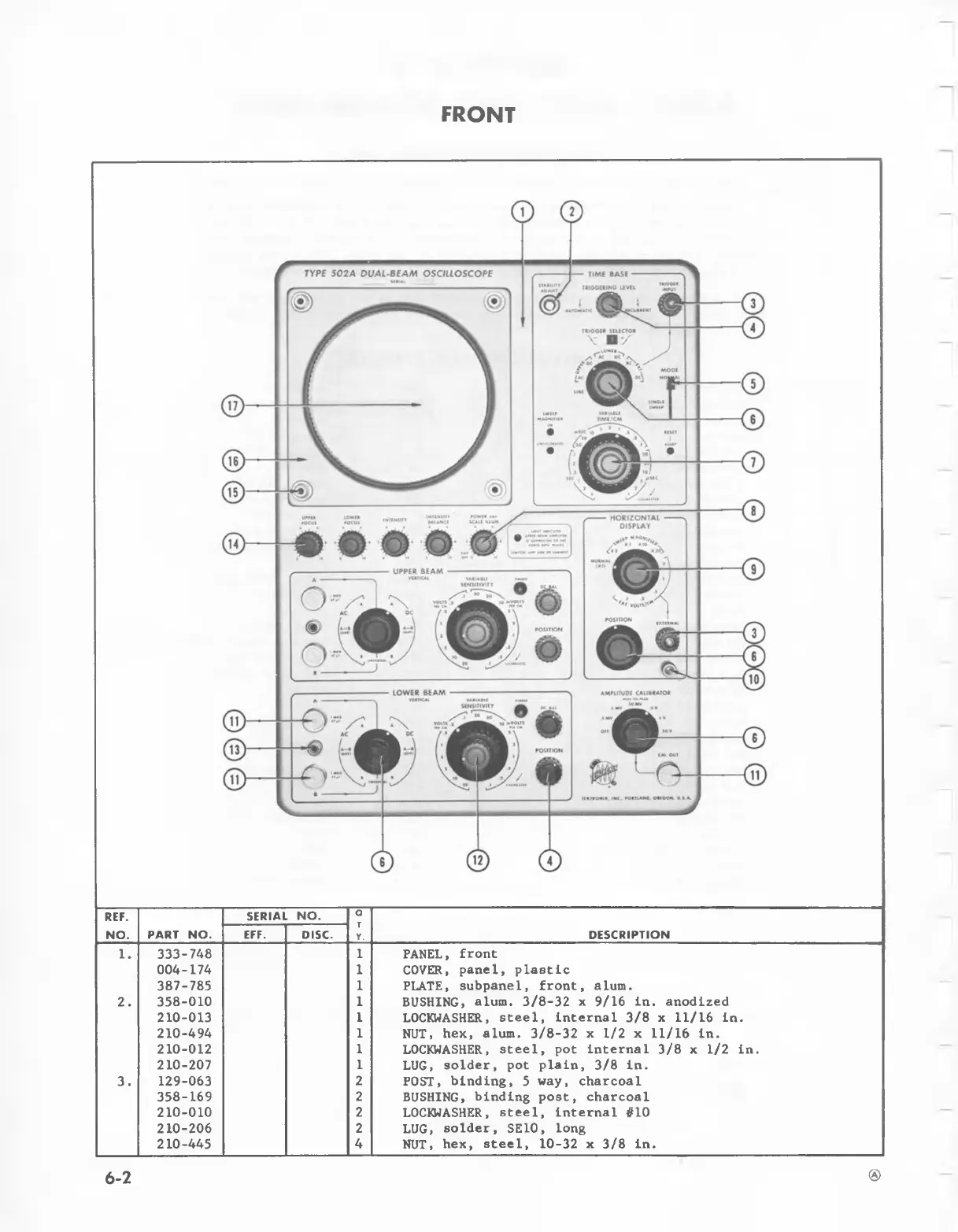

FRONT
REF.
NO.
PART NO.
SERIAL NO.
Q
T
Y .
DESCRIPTION EFF. DISC.
1.
333-748 1 PANEL, front
004-174 1 COVER, panel, plastic
387-785
1 PLATE, subpanel, front, alum.
2.
358-010 1
BUSHING, alum. 3/8-32 x 9/16 in. anodized
210-013
1
LOCKWASHER, steel, internal 3/8 x 11/16 in.
210-494 1
NUT, hex, alum. 3/8-32 x 1/2 x 11/16 in.
210-012 1
LOCKWASHER, steel, pot internal 3/8 x 1/2 in.
210-207 1
LUG, solder, pot plain, 3/8 in.
3. 129-063
2
POST, binding, 5 way, charcoal
358-169
2
BUSHING, binding post, charcoal
210-010 2 LOCKWASHER, steel, internal #10
210-206
2 LUG, solder, SE10, long
210-445
4
NUT, hex, steel, 10-32 x 3/8 in.
6-2
®
