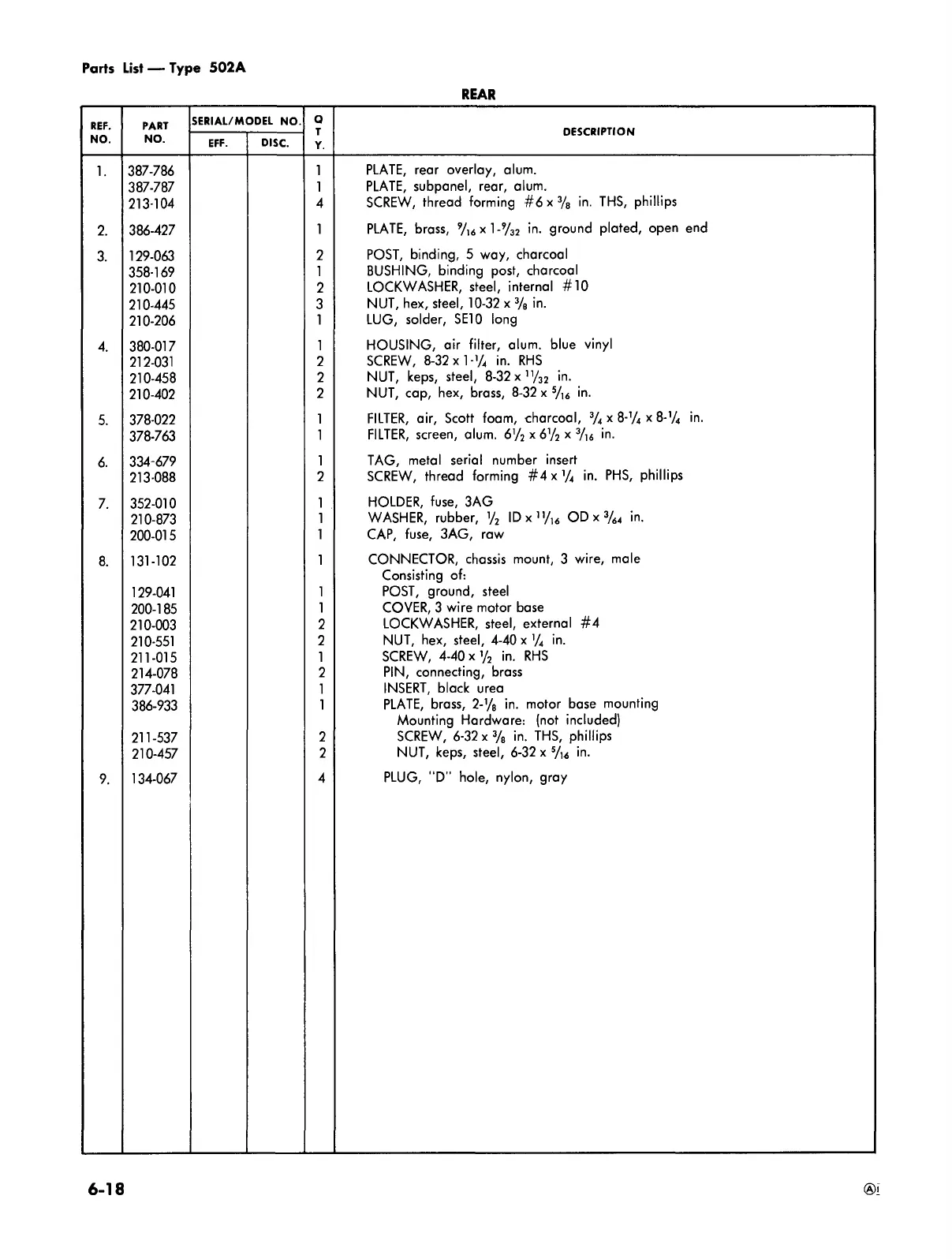

Parts List — Type 502A
REAR
REF.
NO.
PART
NO.
SERIAL/MODEL NO.
a
T
Y.
DESCRIPTION
EFF.
DISC.
1.
387-786
1
PLATE, rear overlay, alum.
387-787
1
PLATE, subpanel, rear, alum.
213-104
4
SCREW, thread forming #6 x % in. THS, phillips
2.
386-427
1
PLATE, brass, ’ /| 4 xl- ’ / 32 in. ground plated, open end
3.
129-063
2
POST, binding, 5 way, charcoal
358-169
1
BUSHING, binding post, charcoal
210-010
2
LOCKWASHER, steel, internal #10
210-445
3
NUT, hex, steel, 10-32 x % in.
210-206
1
LUG, solder, SE10 long
4.
380-017
1
HOUSING, air filter, alum, blue vinyl
212-031
2
SCREW, 8-32xl- ’ / 4 in. RHS
210-458
2
NUT, keps, steel, 8-32 x 11 / 32 in.
210-402
2
NUT, cap, hex, brass, 8-32 x 5 / 16 in.
5.
378-022
1
FILTER, air, Scott foam, charcoal, 3 / 4 x 8- ’ / 4 x 8-'/ 4 in.
378-763
1
FILTER, screen, alum. 6'/ 2 x 6'/ 2 x 3 / 16 in.
6.
334-679
1
TAG, metal serial number insert
213-088
2
SCREW, thread forming #4 x y 4 in. PHS, phillips
7.
352-010
1
HOLDER, fuse, 3AG
210-873
1
WASHER, rubber, '/ 2 ID x , '/ )4 OD x 3 / 64 in.
200-015
1
CAP, fuse, 3AG, raw
8.
131-102
1
CONNECTOR, chassis mount, 3 wire, male
Consisting of:
129-041
1
POST, ground, steel
200-185
1
COVER, 3 wire motor base
210-003
2
LOCKWASHER, steel, external #4
210-551
2
NUT, hex, steel, 4-40 x y 4 in.
211-015
1
SCREW, 4-40 x'/ 2 in. RHS
214-078
2
PIN, connecting, brass
377-041
1
INSERT, black urea
386-933
1
PLATE, brass, 2-y 8 in. motor base mounting
Mounting Hardware: (not included)
211-537
2
SCREW, 6-32 x % in. THS, phillips
210-457
2
NUT, keps, steel, 6-32 x 5 / 14 in.
9.
134-067
4
PLUG, "D" hole, nylon, gray
