Operating
Instructions
—
Type
502A

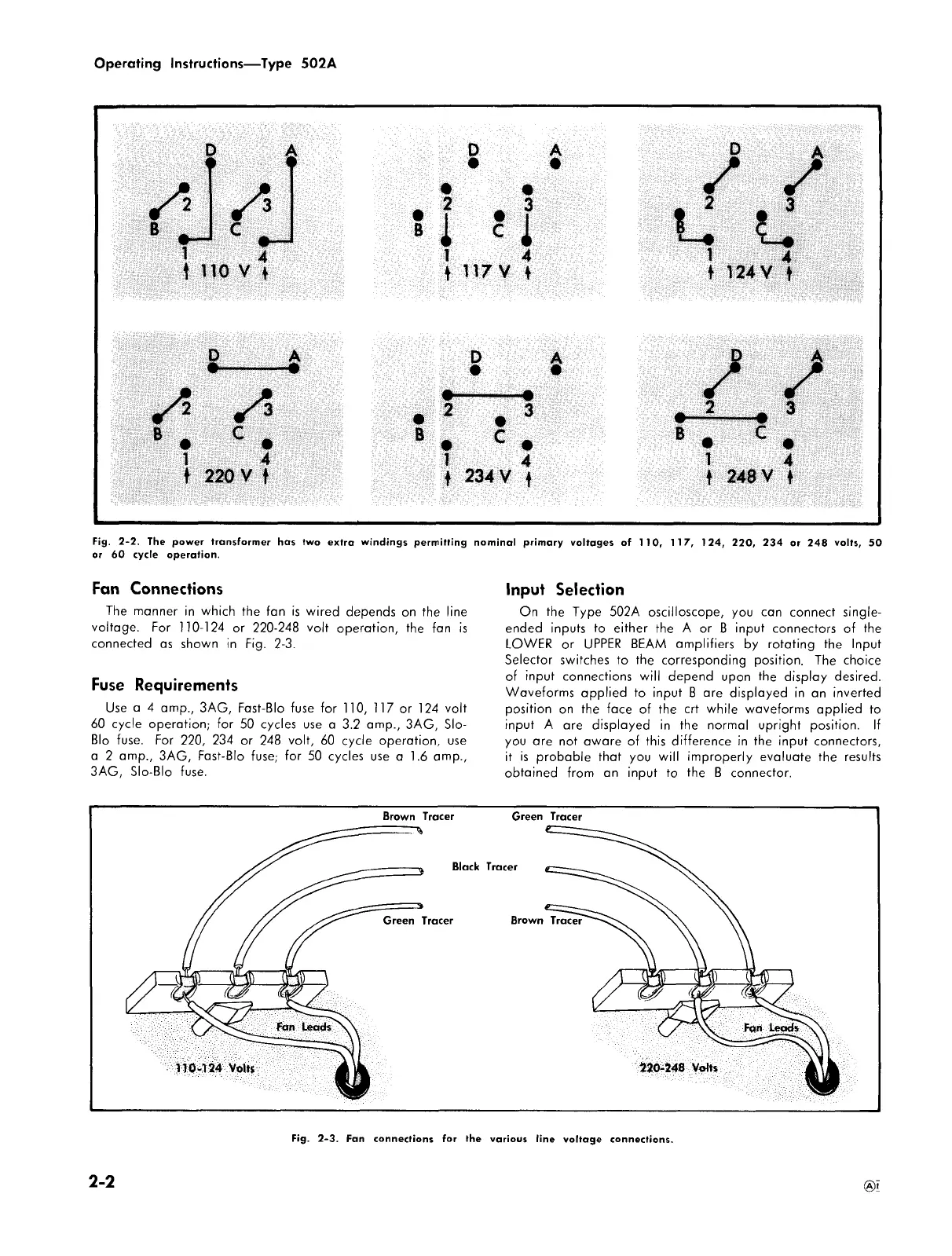

Fig.
2-2.
The
power
transformer
has
two
extra
windings
permitting
nominal
primary
voltages
of
110,
117,
124,
220,
234
or
248
volts,
50
or
60
cycle
operation.
Fan
Connections
The
manner
in
which
the
fan
is
wired
depends
on
the
line
voltage.
For
110-124
or
220-248
volt
operation,
the
fan
is
connected
as
shown
in
Fig.
2-3.
Fuse
Requirements
Use
a
4
amp.,
3AG,
Fast-Bio
fuse
for
110,
117
or
124
volt
60
cycle
operation;
for
50
cycles
use
a
3.2
amp.,
3AG,
S
l
o-
B
l
o
fuse.
For
220,
234
or
248
volt,
60
cycle
operation,
use
a
2
amp.,
3AG,
Fast-Bio
fuse;
for
50
cycles
use
a
1.6
amp.,
3AG,
S
l
o-B
l
o
fuse.
Input
Selection
On
the
Type
502A
oscilloscope,
you
can
connect
single-
ended
inputs
to
either
the
A
or
B
input
connectors
of
the
LOWER
or
UPPER
BEAM
amplifiers
by
rotating
the
Input
Selector
switches
to
the
corresponding
position.
The
choice
of
input
connections
will
depend
upon
the
display
desired.
Waveforms
applied
to
input
B
are
displayed
in
an
inverted
position
on
the
face
of
the
crt
while
waveforms
applied
to
input
A
are
displayed
in
the
normal
upright
position.
If
you
are
not
aware
of
this
difference
in
the
input
connectors,
it
is
probable
that
you
will
improperly
evaluate
the
results
obtained
from
an
input
to
the
B
connector.
Fig.
2-3.
Fan
connections
for
the
various
line
voltage
connections.
2-2
