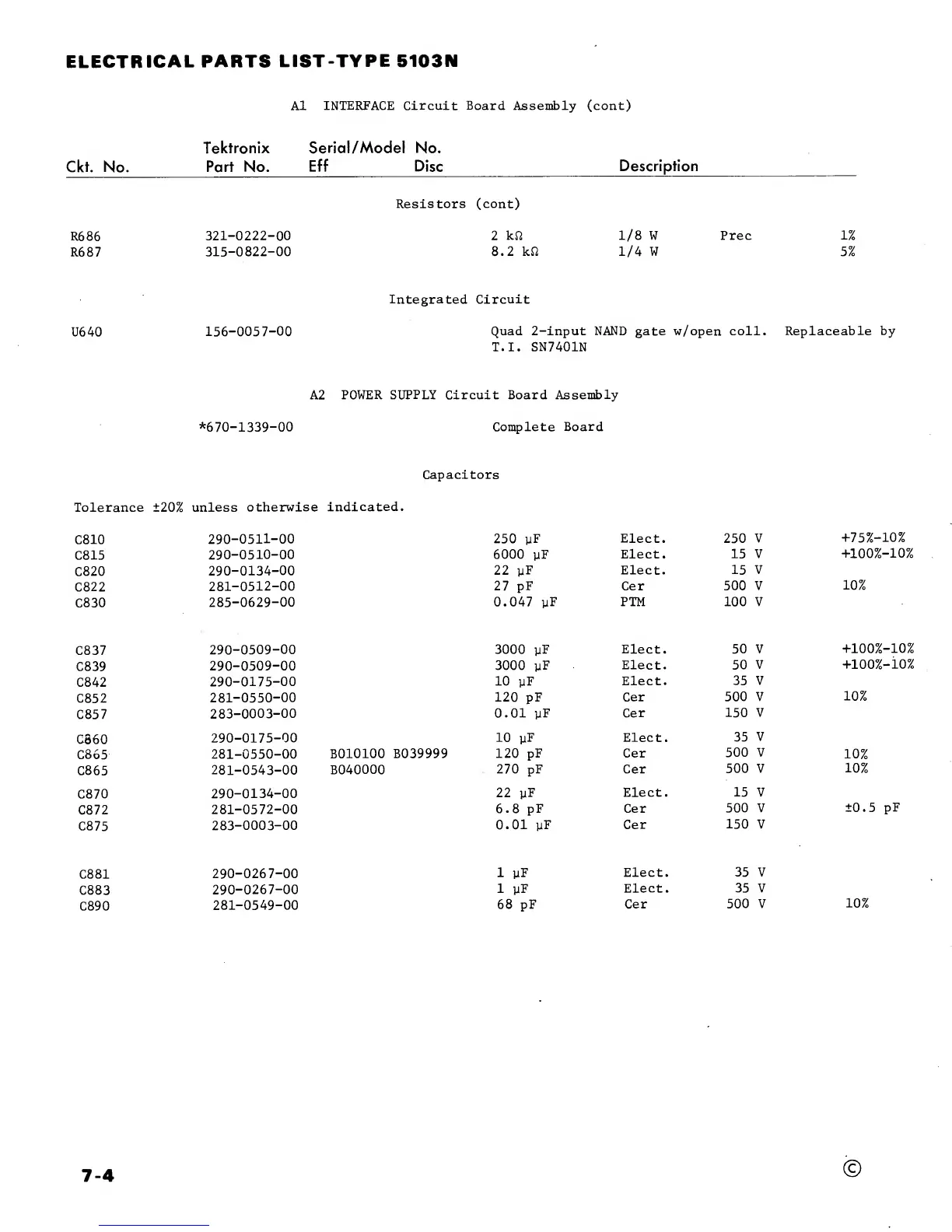

ELECTRICAL
PARTS
LIST-TYPE 5103N
Ckt.
No.
A1
INTERFACE Circuit
Board
Assembly (cont)
Tektronix Serial/Model No.
Part No.
Eff Disc
Description
R686
R687
Resistors (cont)
321-0222-00
315-0822-00
2
k
fl 1/8
W Prec 1%
8.2 kO
1/4
W
5%
U640
156-0057-00
Integrated Circuit
Quad 2-input
NAND
gate w/open coll.
Replaceable by
T.I.
SN7401N
A2
POWER SUPPLY Circuit Board Assembly
*670-1339-00
Complete
Board
Capacitors
Tolerance ±20%
unless
otherwise
indicated.
C810
290-0511-00
250
yF
Elect.
250
V
+75%-10%
C815
290-0510-00
6000
yF
Elect
.
15 V
+100%-10%
C820
290-0134-00
22
yF Elect. 15
V
C822
281-0512-00
27
pF Cer
500 V
10%
C830
285-0629-00
0.047
yF PTM 100 V
C837
290-0509-00
3000
yF
Elect. 50 V
+100%-10%
C839
290-0509-00
3000
yF
Elect. 50
V
+ioo%-io%
C842
290-0175-00
10
yF
Elect.
35 V
C852
281-0550-00
120
pF
Cer
500 V
10%
C857
283-0003-00
0.01
yF
Cer 150
V
C860
290-0175-00
10
yF Elect
.
35
V
C865
281-0550-00
B010100
B039999
120
pF Cer
500 V
10%
C865
281-0543-00
B040000 270
pF Cer
500 V
10%
C870
290-0134-00
22
yF
Elect
.
15
V
C872
281-0572-00
6.8
pF Cer
500 V ±0.5
pF
C875
283-0003-00 0.01
yF
Cer
150 V
C881
290-0267-00
1
yF
Elect.
35 V
C883
290-0267-00
1
yF
Elect. 35 V
C890
281-0549-00
68
pF
Cer
500 V
7-4
©
