Operating Instructions— Type 544/RM544
White with green stripes
/ White with black stripes
/ / Yellow with brown stripes
(solid black) operation, move fan
lead.
108 to 122 volt operation

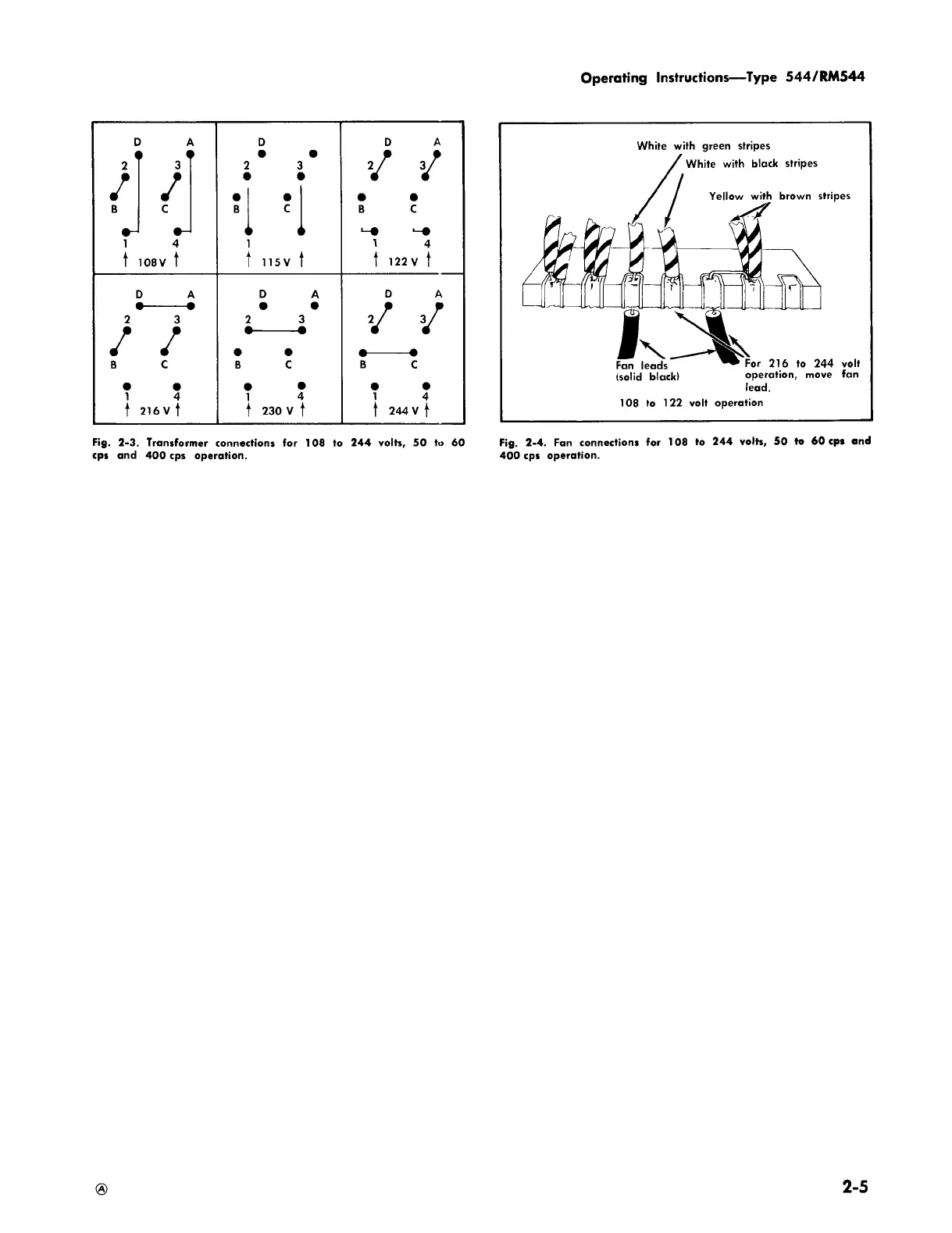

Fig. 2-3. Transformer connections for 108 to 244 volts, 50 to 60 Fig. 2-4. Fan connections for 108 to 244 volts, 50 to 60 cps and
cps and 400 cps operation. 400 cps operation.
®
