Tektronix AFG3000 Series Function Generator Guide v1.0 Portland State University
2
2 – Waveform Shapes
The AFG3000 Series outputs these standard waveforms:

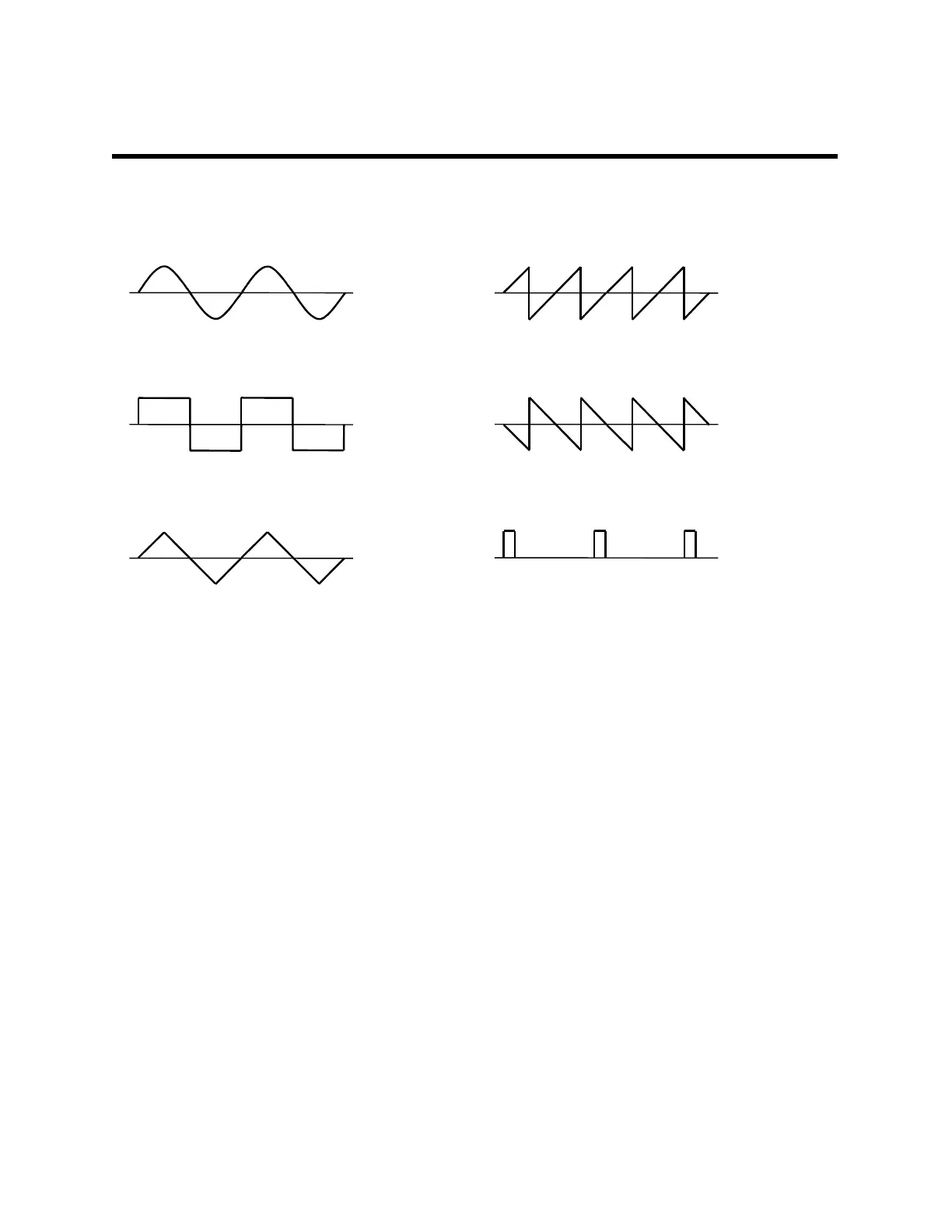

Figure 1: Idealized waveform shapes
In addition, the function generator supports user-defined waveforms of arbitrary shape.
Sine
Square
Triangle
Ramp (rising)
Ramp (falling)
Pulse
