Performance tests

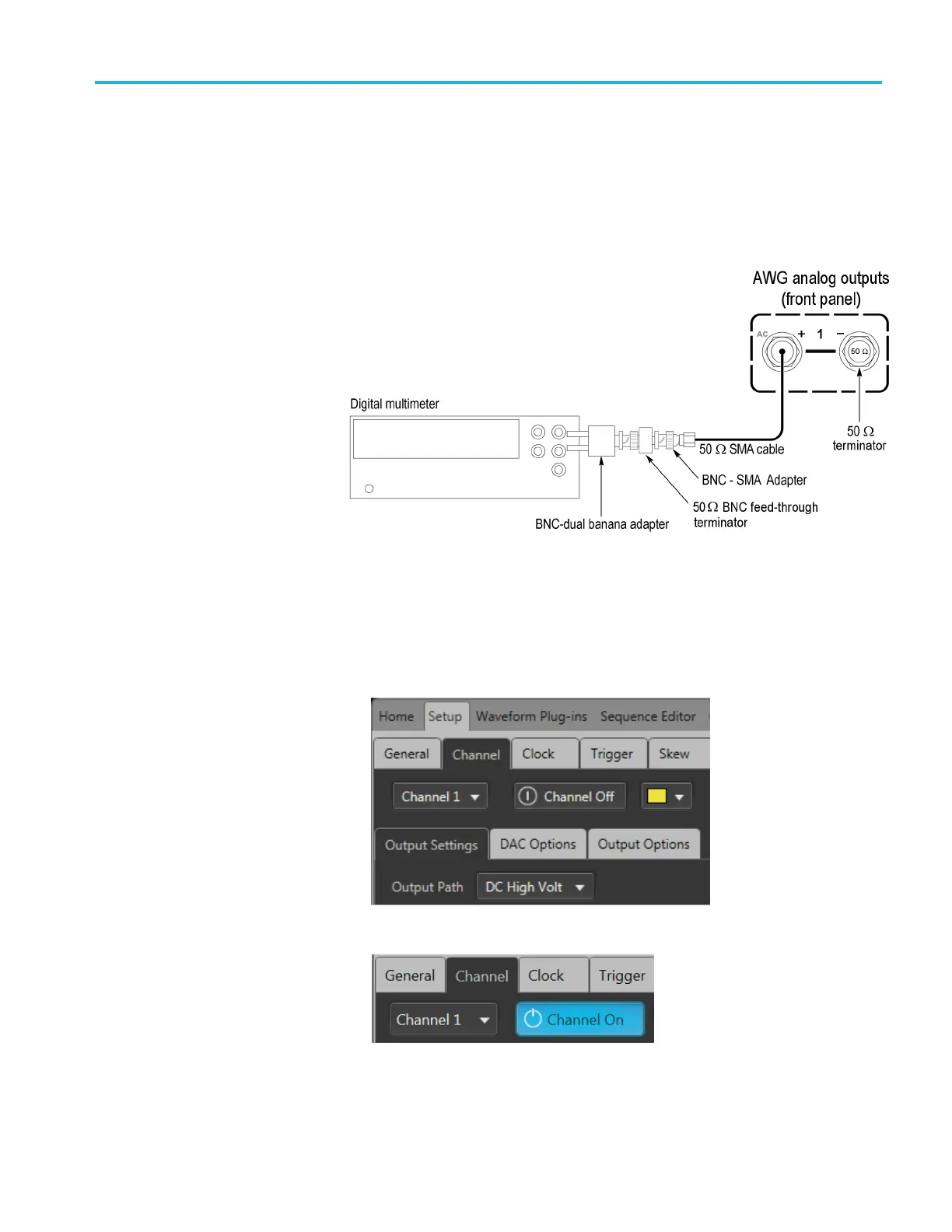

5. Connect the CH 1
(+) connector from the AWG to the HI and LO inputs of
the digital multimeter.
Use a 50 Ω SMA ca
ble, a BNC-SMA adapter, a 50 Ω BNC feed-through
terminator, and a BNC dual banana adapter.
6. Terminate t
he CH 1 (–) connector on the AWG with a 50 Ω SMA terminator.
7. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home screen) to enable the outputs (front panel light off).
8. Click the Setup -> Channel tab and click the Output Settings tab.
a. Select Channel 1.
b. Set th
e Output Path to DC High Volt.
c. Enable the Channel 1 output.
AWG5200 Series Technical Reference 49
