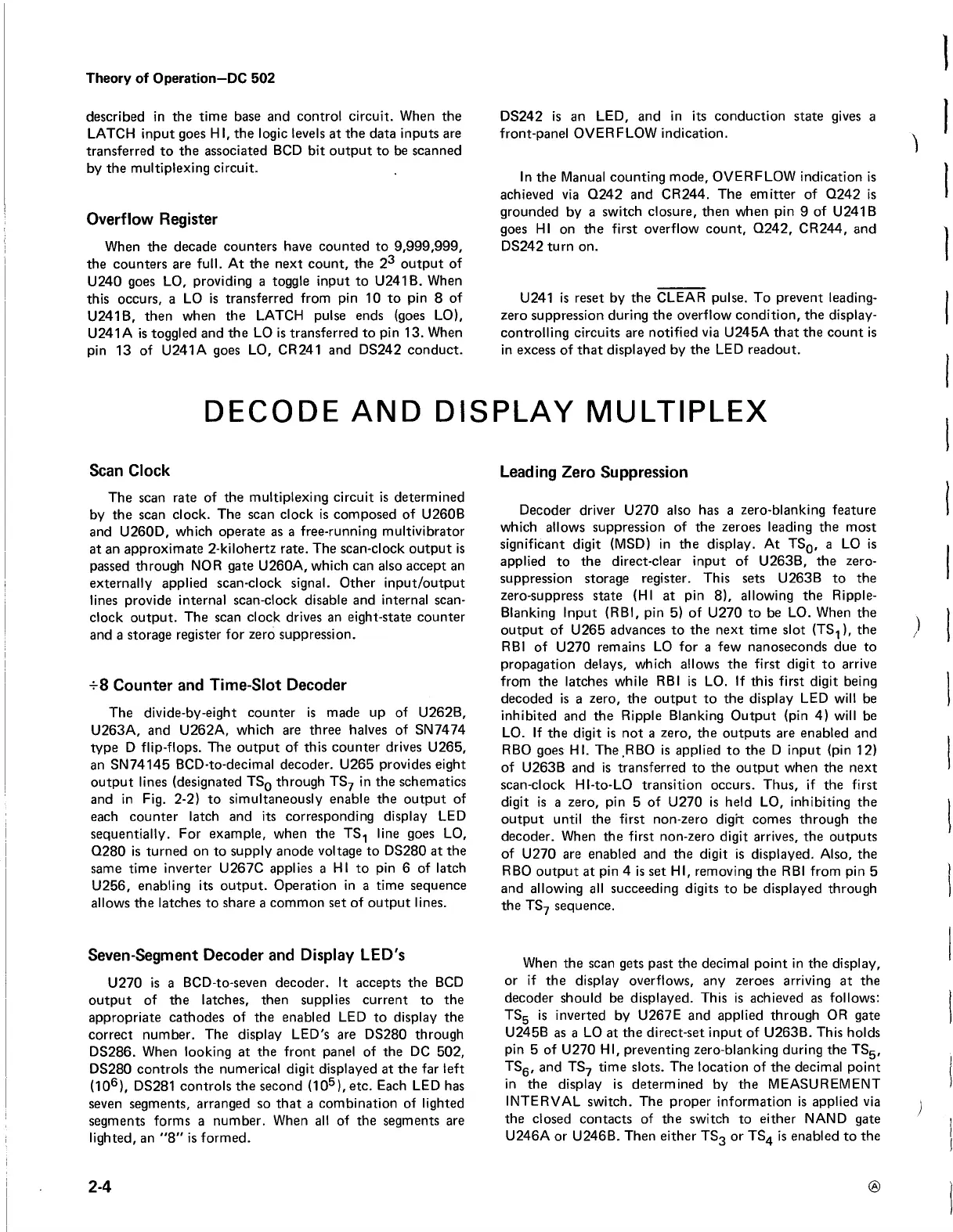

Theory
of
Operation
—
DC
502
described
in
the
time
base
and
control
circuit.
When
the
LATCH
input
goes
HI,
the
logic
levels
at
the
data
inputs
are
transferred
to
the
associated
BCD
bit
output
to
be
scanned
by
the
multiplexing
circuit.
Overflow
Register
When
the
decade
counters
have
counted
to
9,999,999,
the
counters
are
full.
At
the
next
count,
the
2
3
output
of
U240
goes
LO,
providing
a
toggle
input
to
U241B.
When
this
occurs,
a
LO
is
transferred
from
pin
10
to
pin
8
of
U241B,
then
when
the
LATCH
pulse
ends
(goes
LO),
U241A
is
toggled
and
the
LO
is
transferred
to
pin
13.
When
pin
13
of
U241A
goes
LO,
CR241
and
DS242
conduct.
DS242
is
an
LED,
and
in
its
conduction
state
gives
a
front-panel
OVERFLOW
indication.
In
the
Manual
counting
mode,
OVERFLOW
indication
is
achieved
via
Q242
and
CR244.
The
emitter
of
Q242
is
grounded
by
a
switch
closure,
then
when
pin
9
of
U241B
goes
HI
on
the
first
overflow
count,
Q242,
CR244,
and
DS242
turn
on.
U241
is
reset
by
the
CLEAR
pulse.
To
prevent
leading

zero
suppression
during
the
overflow
condition,
the
display

controlling
circuits
are
notified
via
U245A
that
the
count
is
in
excess
of
that
displayed
by
the
LED
readout.
DECODE
AND
DISPLAY
MULTIPLEX
Scan
Clock
The
scan
rate
of
the
multiplexing
circuit
is
determined
by
the
scan
clock.
The
scan
clock
is
composed
of
U260B
and
U260D,
which
operate
as
a
free-running
multivibrator
at
an
approximate
2-kilohertz
rate.
The
scan-clock
output
is
passed
through
NOR
gate
U260A,
which
can
also
accept
an
externally
applied
scan-clock
signal.
Other
input/output
lines
provide
internal
scan-clock
disable
and
internal
scan

clock
output.
The
scan
clock
drives
an
eight-state
counter
and
a
storage
register
for
zero
suppression.
÷
8
Counter
and
Time-Slot
Decoder
The
divide-by-eight
counter
is
made
up
of
U262B,
U263A,
and
U262A,
which
are
three
halves
of
SN7474
type
D
flip-flops.
The
output
of
this
counter
drives
U265,
an
SN74145
BCD-to-decimal
decoder.
U265
provides
eight
output
lines
(designated
TS
0
through
TS
7
in
the
schematics
and
in
Fig.
2-2)
to
simultaneously
enable
the
output
of
each
counter
latch
and
its
corresponding
display
LED
sequentially.
For
example,
when
the
TS
1
line
goes
LO,
Q280
is
turned
on
to
supply
anode
voltage
to
DS280
at
the
same
time
inverter
U267C
applies
a
HI
to
pin
6
of
latch
U256,
enabling
its
output.
Operation
in
a
time
sequence
allows
the
latches
to
share
a
common
set
of
output
lines.
Seven-Segment
Decoder
and
Display
LED's
U270
is
a
BCD-to-seven
decoder.
It
accepts
the
BCD
output
of
the
latches,
then
supplies
current
to
the
appropriate
cathodes
of
the
enabled
LED
to
display
the
correct
number.
The
display
LED's
are
DS280
through
DS286.
When
looking
at
the
front
panel
of
the
DC
502,
DS280
controls
the
numerical
digit
displayed
at
the
far
left
(10
6
),
DS281
controls
the
second
(10
5
),etc.
Each
LED
has
seven
segments,
arranged
so
that
a
combination
of
lighted
segments
forms
a
number.
When
all
of
the
segments
are
lighted,
an
“
8"
is
formed.
Leading
Zero
Suppression
Decoder
driver
U270
also
has
a
zero-blanking
feature
which
allows
suppression
of
the
zeroes
leading
the
most
significant
digit
(MSD)
in
the
display.
At
TS
0
,
a
LO
is
applied
to
the
direct-clear
input
of
U263B,
the
zero

suppression
storage
register.
This
sets
U263B
to
the
zero-suppress
state
(HI
at
pin
8),
allowing
the
Ripple-
Blanking
Input
(RBI,
pin
5)
of
U270
to
be
LO.
When
the
output
of
U265
advances
to
the
next
time
slot
(TS
1
)
,
the
RBI
of
U270
remains
LO
for
a
few
nanoseconds
due
to
propagation
delays,
which
allows
the
first
digit
to
arrive
from
the
latches
while
RBI
is
LO.
If
this
first
digit
being
decoded
is
a
zero,
the
output
to
the
display
LED
will
be
inhibited
and
the
Ripple
Blanking
Output
(pin
4)
will
be
LO.
If
the
digit
is
not
a
zero,
the
outputs
are
enabled
and
RBO
goes
HI.
The.RBO
is
applied
to
the
D
input
(pin
12)
of
U263B
and
is
transferred
to
the
output
when
the
next
scan-clock
HI-to-LO
transition
occurs.
Thus,
if
the
first
digit
is
a
zero,
pin
5
of
U270
is
held
LO,
inhibiting
the
output
until
the
first
non-zero
digit
comes
through
the
decoder.
When
the
first
non-zero
digit
arrives,
the
outputs
of
U270
are
enabled
and
the
digit
is
displayed.
Also,
the
RBO
output
at
pin
4
is
set
HI,
removing
the
RBI
from
pin
5
and
allowing
all
succeeding
digits
to
be
displayed
through
the
TS
7
sequence.
When
the
scan
gets
past
the
decimal
point
in
the
display,
or
if
the
display
overflows,
any
zeroes
arriving
at
the
decoder
should
be
displayed.
This
is
achieved
as
follows:
TS
5
is
inverted
by
U267E
and
applied
through
OR
gate
U245B
as
a
LO
at
the
direct-set
input
of
U263B.
This
holds
pin
5
of
U270
HI,
preventing
zero-blanking
during
the
TS
5
,
TS
6
,
and
TS
7
time
slots.
The
location
of
the
decimal
point
in
the
display
is
determined
by
the
MEASUREMENT
INTERVAL
switch.
The
proper
information
is
applied
via
the
closed
contacts
of
the
switch
to
either
NAND
gate
U246A
or
U246B.
Then
either
TS
3
or
TS
4
is
enabled
to
the
2-4
