Theory of Operation-DC 502
1 MHz clock
RESET
Forced by RESET
RBI, pin 5
U270

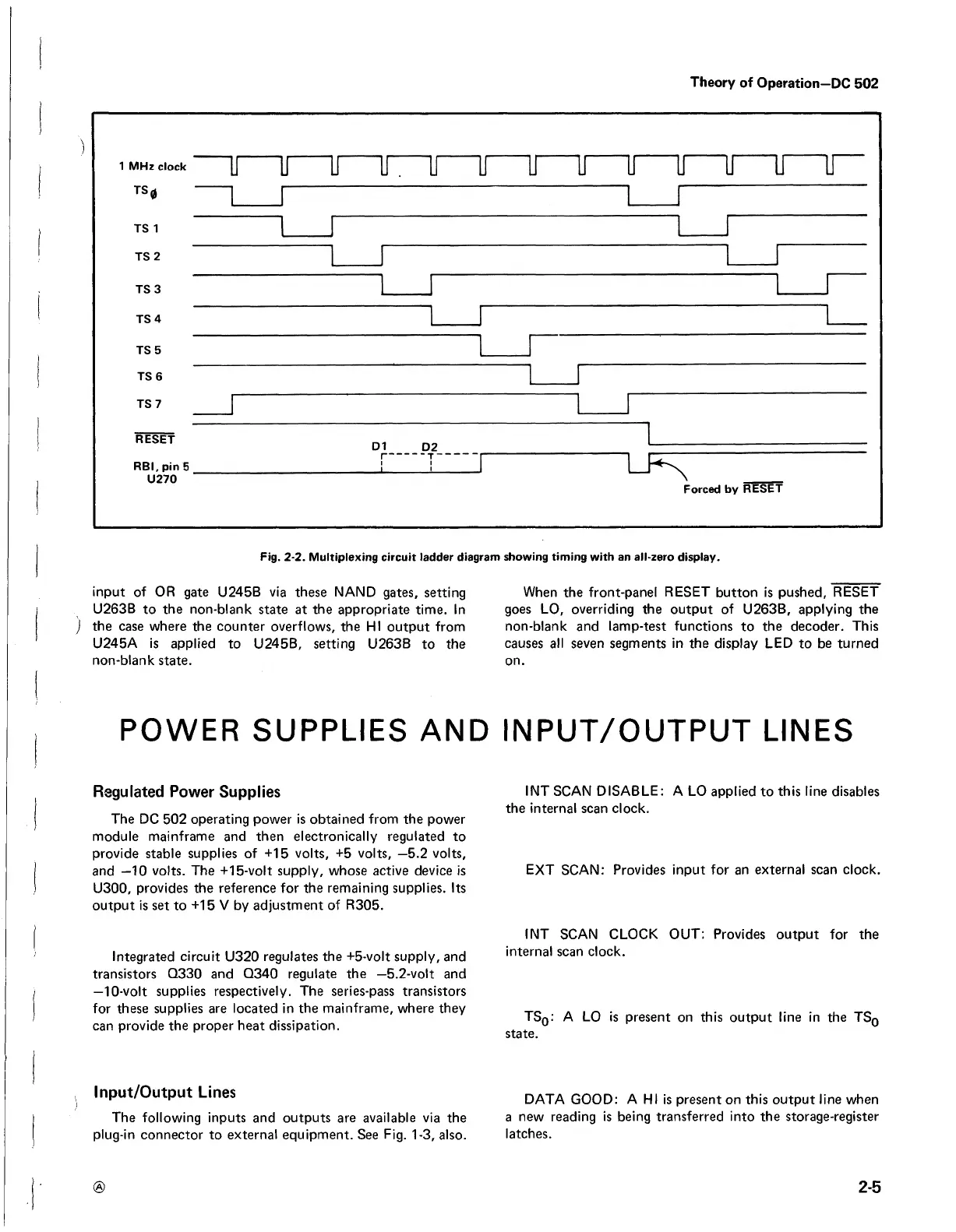

Fig. 2-2. Multiplexing circuit ladder diagram showing timing with an all-zero display.
input of OR gate U245B via these NAND gates, setting
U263B to the non-blank state at the appropriate time. In
the case where the counter overflows, the HI output from
U245A is applied to U245B, setting U263B to the
non-blank state.
When the front-panel RESET button is pushed, RESET
goes LO, overriding the output of U263B, applying the
non-blank and lamp-test functions to the decoder. This
causes all seven segments in the display LED to be turned
on.
POWER SUPPLIES AND INPUT/OUTPUT LINES
Regulated Power Supplies
The DC 502 operating power is obtained from the power
module mainframe and then electronically regulated to
provide stable supplies of +15 volts, +5 volts, — 5.2 volts,
and — 10 volts. The +15-volt supply, whose active device is
U300, provides the reference for the remaining supplies. Its
output is set to +15 V by adjustment of R305.
Integrated circuit U320 regulates the +5-volt supply, and
transistors Q330 and Q340 regulate the — 5.2-volt and
— 10-volt supplies respectively. The series-pass transistors
for these supplies are located in the mainframe, where they
can provide the proper heat dissipation.
INT SCAN DISABLE: A LO applied to this line disables
the internal scan clock.
EXT SCAN: Provides input for an external scan clock.
INT SCAN CLOCK OUT: Provides output for the
internal scan clock.
TS 0 : A LO is present on this output line in the TS q
state.
Input/Output Lines
The following inputs and outputs are available via the
plug-in connector to external equipment. See Fig. 1-3, also.
DATA GOOD: A HI is present on this output line when
a new reading is being transferred into the storage-register
latches.
2-5
