Model 7700 Multiplexer Module Instructions for use with 2750
077182400 July 2023 3
Schematic

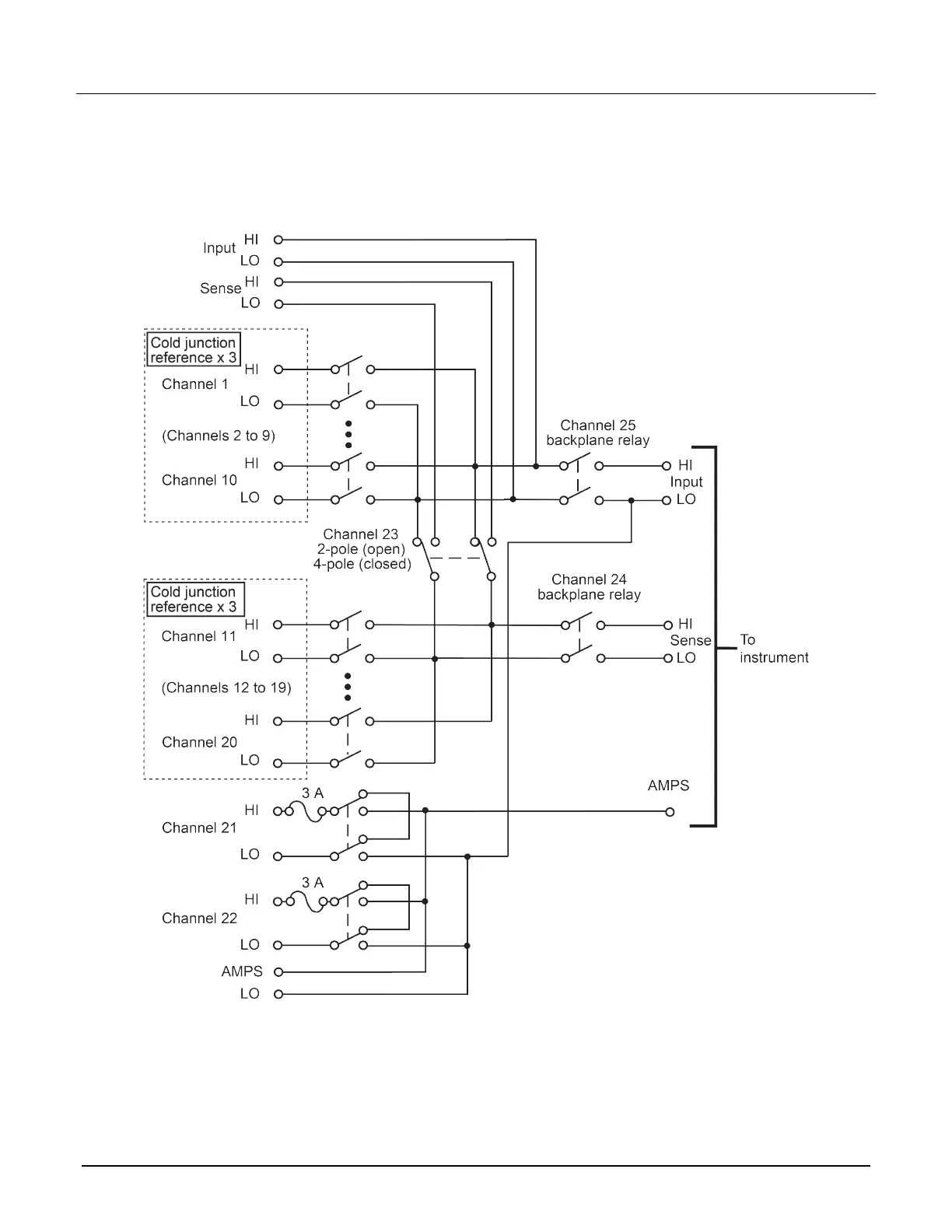

The simplified schematic of the 7700 is shown in the following figure.
Figure 2: 7700 simplified schematic
