Tektronix KEITHLEY 7700 - Module Handling; Module Removal; Module Installation

Model 7700 Multiplexer Module Instructions for use with 2750
077182400 July 2023 7
3. Use a small flat-blade screwdriver to loosen the terminal screws and install the wires as needed.

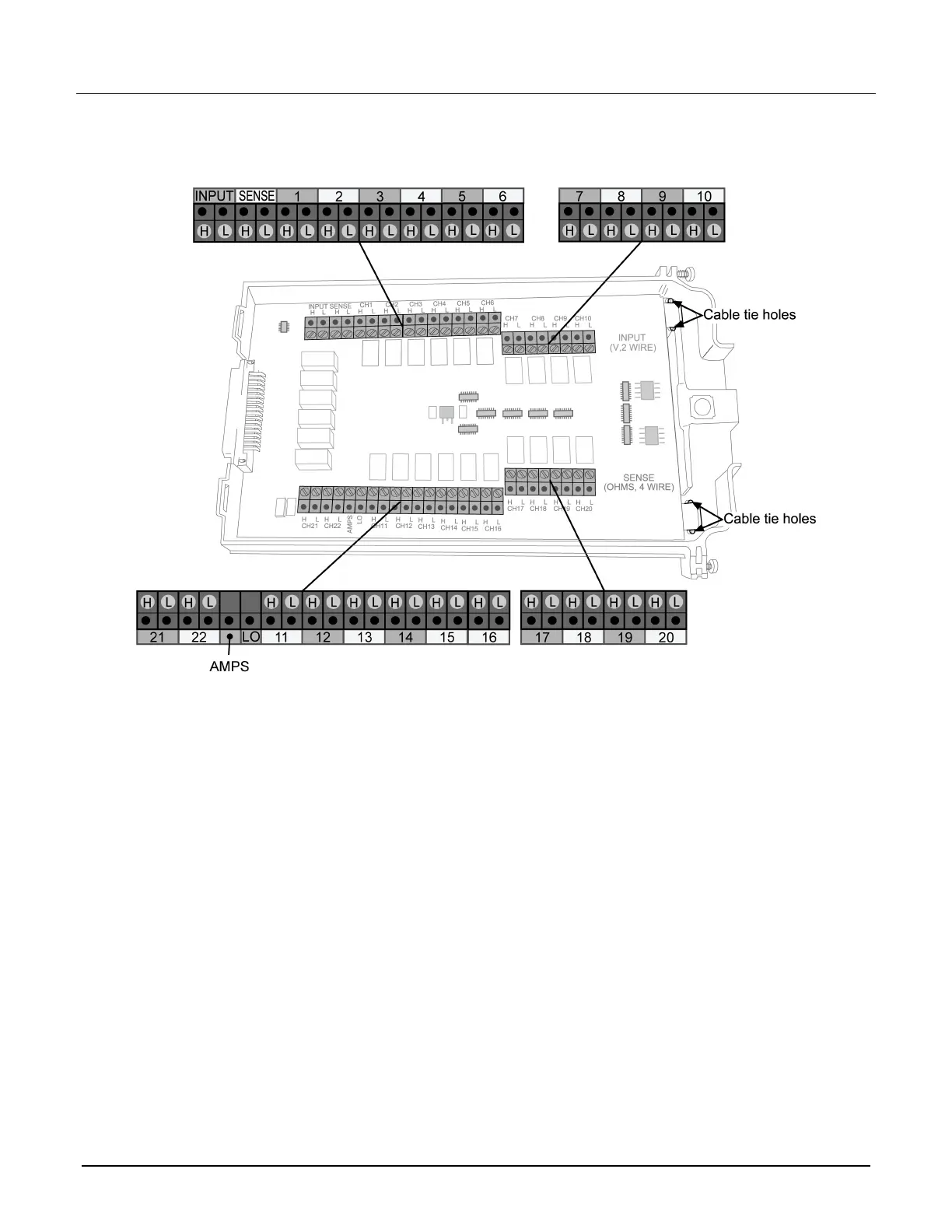

Figure 4: 7700 screw terminal channel designations
