Tektronix MSO3000 Series Instruction Manual

Giving Demos of MSO Features

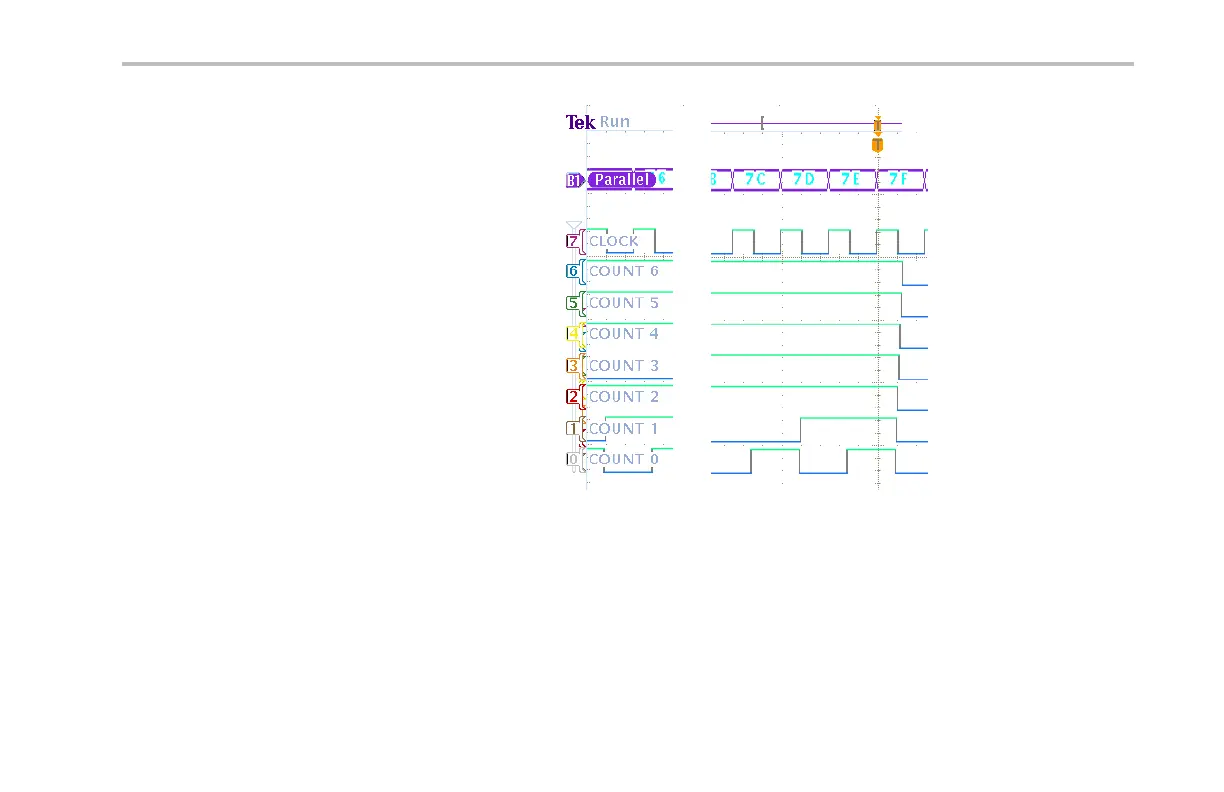

7. Push the front-panel Run/Stop button.
Notice that the oscilloscope triggers when the
7F (the all 1’s, green) data value you selected
above occurs. Triggering on a data pattern is
a common request from engineers working on
embedded designs.
Demo 2 Board Instruction Manua l 101
