Tektronix MSO3000 Series Instruction Manual

Giving Demos of MSO Features

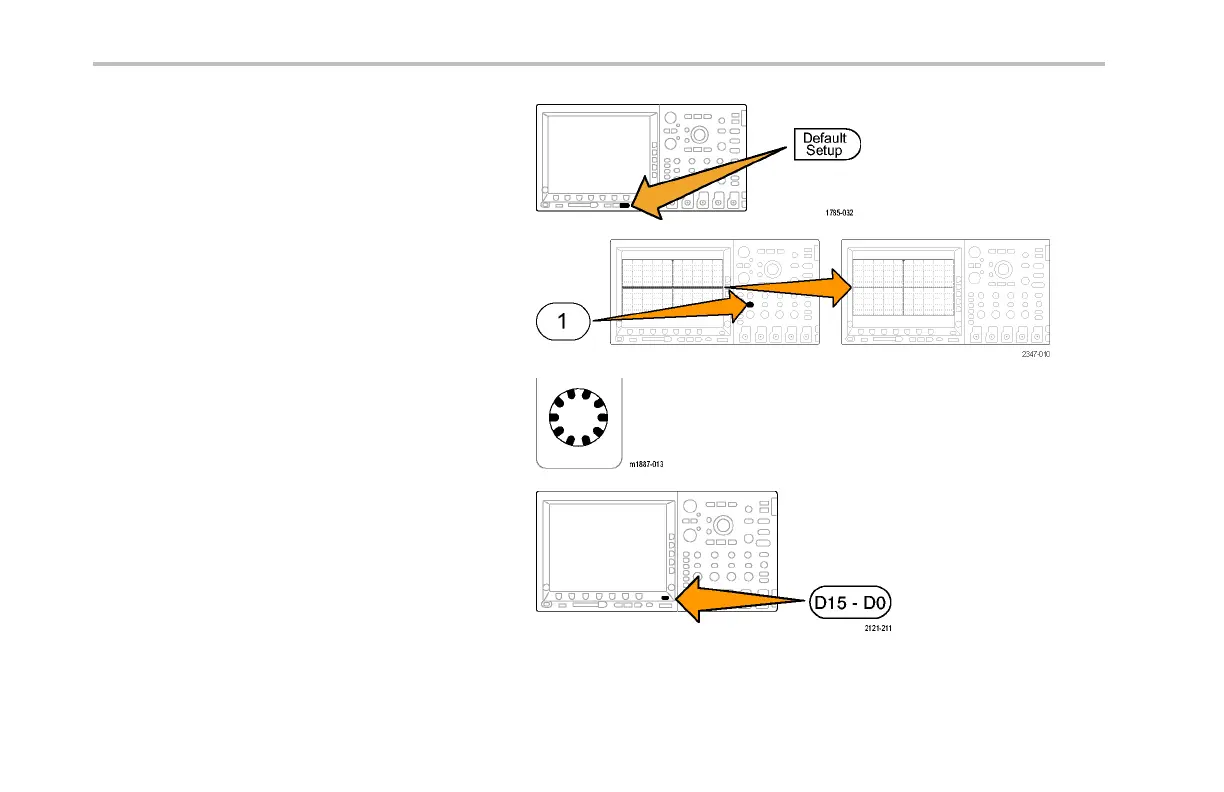

2. Push Default Setup.
3. Push the front-panel channel 1 button a s many
times as needed (e.g. two times) to remove
the channel 1 waveform from the display.
4. Turn the front-panel Horizontal Scale knob to
set the time/division to 200 ns/div.
5. Push the front-panel D15-D0 button.
Green
Blue
84 Demo 2 Board Instruction Manual
