Giving Demos of MSO Features

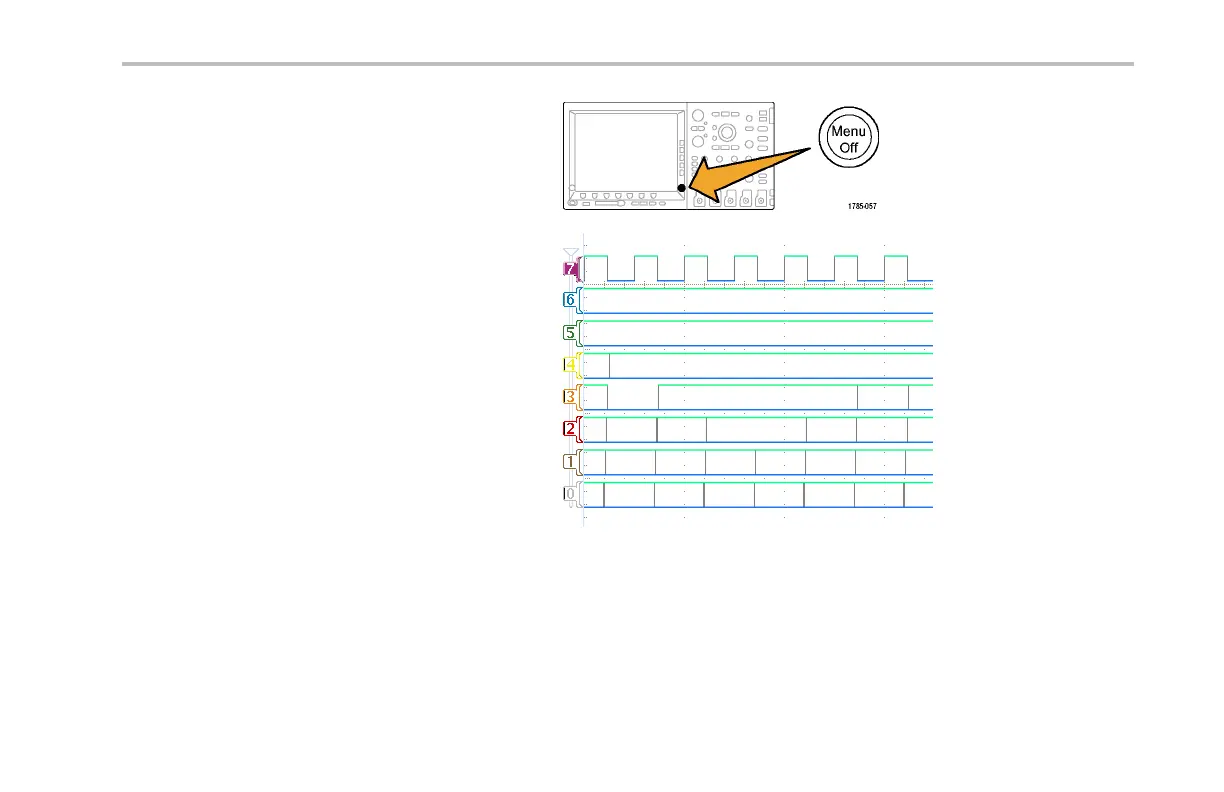

15. Push Menu Off to remove the side menu.
You should n ow see all seven counter data
signals and the counter clock. Notice the
upside down triangle on the left side of the
display, above the channel 7 marker. This is
the channel’s group marker.
When multiple channels are placed adjacent to
each other on the screen, they form a group.
Groups provide you with an easy way to set
up multiple digital channels at once. You can
use the group to easily position multiple digital
waveforms on the screen. You can also use
them to easily alter the vo ltage thresholds for
all the channels in the group.
Demo 2 Board Instruction Manua l 87
