TDS 684A, TDS 744A, & TDS 784A User Manual

A–1

Appendix A: Options and Accessories

This appendix describes the various options as well as the standard and optional

accessories that are available for the TDS Oscilloscope.

Options

Tektronix will ship the options shown in Table A–1:

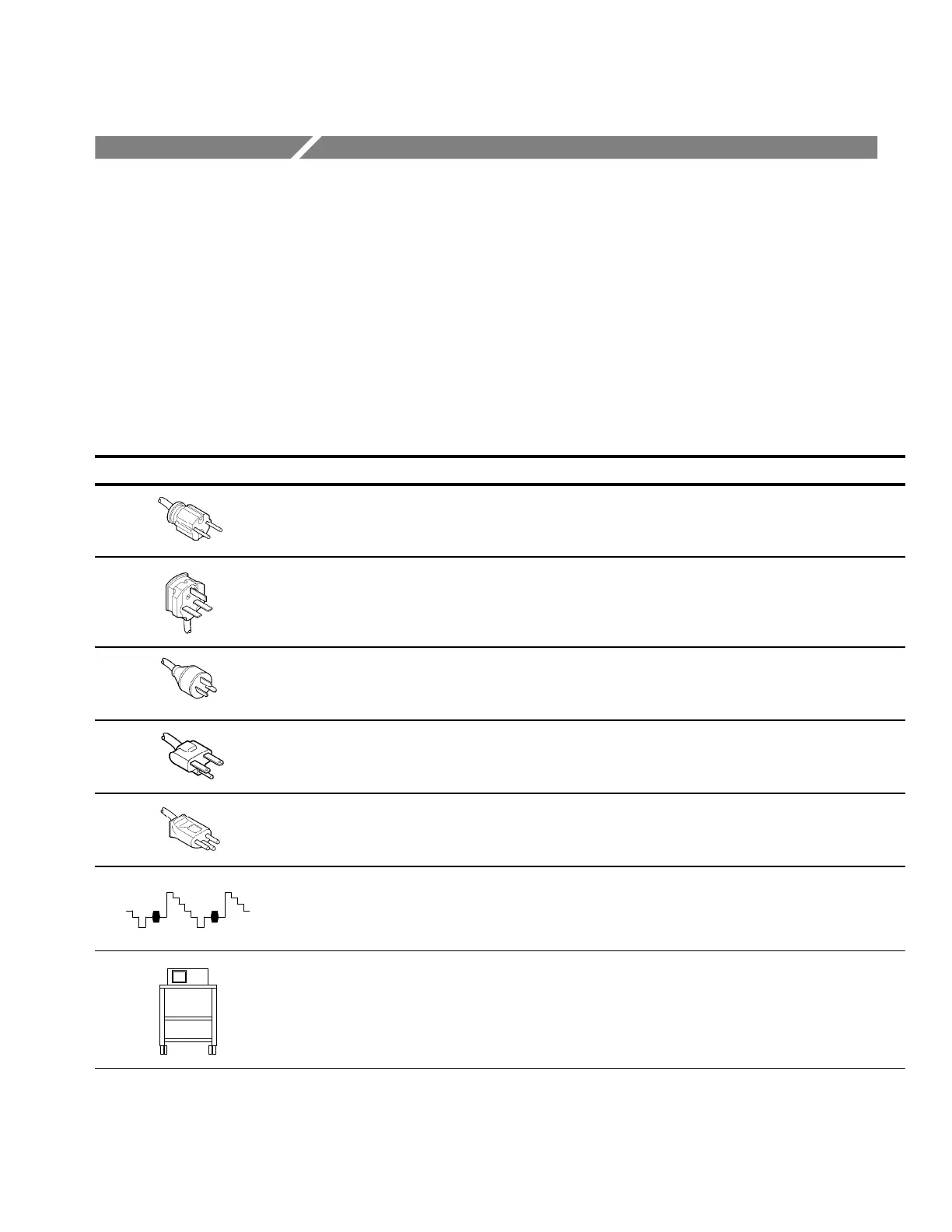

Table A–1: Options

Option # Label Description

A1 Universal European

power cord

220 V, 50 Hz power cord

A2 UK power cord 240 V, 50 Hz power cord

A3 Australian power cord 240 V, 50 Hz power cord

A4 North American power

cord

240 V, 60 Hz power cord

A5 Switzerland power cord 220 V, 50 Hz power cord

05 Video trigger Oscilloscope comes with tools for investigating events that

occur when a video signal generates a horizontal or vertical

sync pulse. It allow investigation of a range of NTSC, PAL,

SECAM, and high definition TV signals.

1K Scope cart K420 scope cart. This cart can help transport the oscilloscope

around many lab environments.

Table of Contents10
Table 1-1: Key Features of the TDS Oscilloscopes23
Figure 1-1: Rear Panel Controls Used in Start up26
Figure 1-2: ON/STBY Button27
Table 1-2: Fuse and Fuse Cap Part Numbers27
Figure 2-1: Connecting a Probe for the Examples (P6245 Shown)38
Figure 2-2: SETUP Button Location39
Figure 2-3: the Setup Menu39
Figure 2-4: Trigger Controls40
Figure 2-5: the Display after Factory Initialization41
Figure 2-6: the VERTICAL and HORIZONTAL Controls42
Figure 2-7: TRIGGER Controls43
Figure 2-8: AUTOSET Button Location43
Figure 2-9: the Display after Pressing Autoset44
Figure 2-10: Display Signals Requiring Probe Compensation44
Figure 2-11: the Channel Buttons and Lights45
Figure 2-12: the Vertical Main Menu and Coupling Side Menu46
Figure 2-13: the Menus after Changing Channels47
Figure 2-14: Measure Main Menu and Select Measurement Side Menu49
Figure 2-15: Four Simultaneous Measurement Readouts50
Figure 2-16: General Purpose Knob Indicators51
Figure 2-17: Snapshot of Channel 152
Figure 2-18: Save/Recall Setup Menu54
Figure 3-1: How Probe Compensation Affects Signals60
Figure 3-2: P6139A Probe Adjustment60
Table 3-1: Autoset Defaults62
Figure 3-3: the Channel Readout64
Figure 3-4: Waveform Selection Priority65
Figure 3-5: Scaling and Positioning66
Figure 3-6: Vertical Readouts and Channel Menu67
Figure 3-7: Record View and Time Base Readouts69
Figure 3-8: Horizontal Controls70
Figure 3-9: Acquisition: Input Analog Signal, Sample, and Digitize73
Figure 3-10: Several Points May be Acquired for each Point Used73
Table 3-2: How Interleaving Affects Sample Rate75
Table 3-3: Additional Resolution Bits78
Table 3-4: TDS 744A Sampling Mode Selection80
Table 3-5: TDS 784A Sampling Mode Selection81
Table 3-6: XY Format Pairs88
Table 3-7: Pattern and State Logic118
Table 3-8: Pulse Trigger Definitions127
Table 3-9: Measurement Definitions144
Table 3-10: Probe Cal Status165
Table A-2: Standard Accessories230
Table A-1: Options231
Table A-3: Optional Accessories231
Table A-4: Accessory Software232
Table D-1: Factory Initialization Defaults250
