Acquiring and Displaying Waveforms
TDS 684A, TDS 744A, & TDS 784A User Manual
3–29
NOTE. TDS 700A models only: See Using InstaVuT Acquisition Mode, on
page 3–43, for differences in how Style setup differs for InstaVu mode.

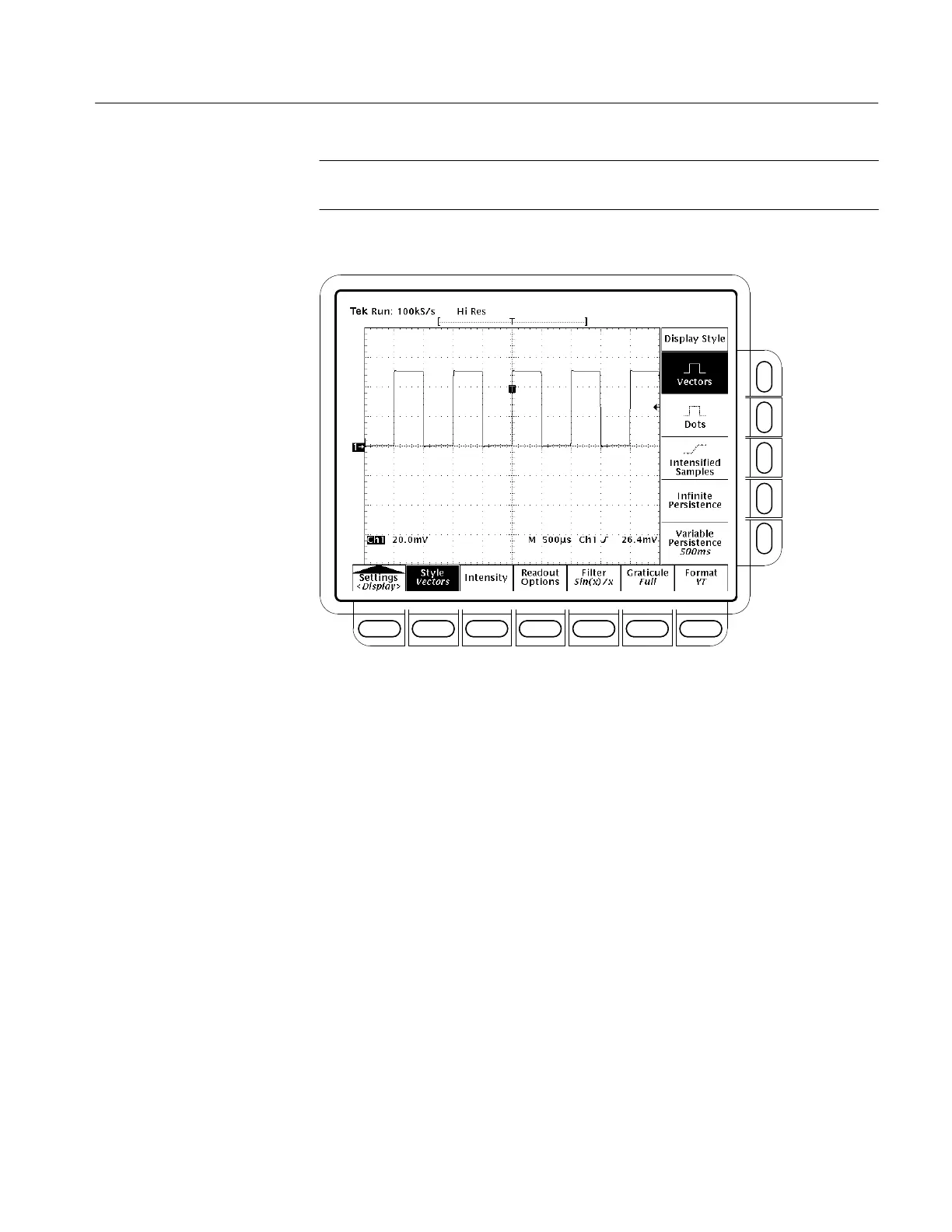

Figure 3–17: Display Menu — Style
Intensity lets you set text/graticule and waveform intensity (brightness) levels.
To set the intensity:
Press DISPLAY ➞ Intensity (main) ➞ Text/Grat or Waveform (side). Enter
the intensity percentage values with the keypad or the general purpose knob.
All intensity adjustments operate over a range from 20% (close to fully off) to
100% (fully bright).
Readout options control whether the trigger indicator, trigger level bar, and
current date and time appear on the display. The options also control what style
trigger level bar, long or short, is displayed.
1. TDS 684A: Press DISPLAY ➞ Readout Options (main).
TDS 700A Models: Press DISPLAY ➞ Mode (main) ➞ Normal
(pop-up) ➞ Format/RO (main).
Adjust Intensity
Set Display Readout
Options
To Next Page
