Acquiring and Displaying Waveforms
TDS 684A, TDS 744A, & TDS 784A User Manual
3–33
Customizing the Display Color
The TDS Oscilloscope can display information in different colors. This
subsection describes how to use the Color menu to choose the colors in which
the various display objects appear.
To bring up the Color menu:
1. Press DISPLAY to show the Display menu.
2. Press Settings in the main menu until you select Color from the pop-up
menu. (See Figure 3–19.)

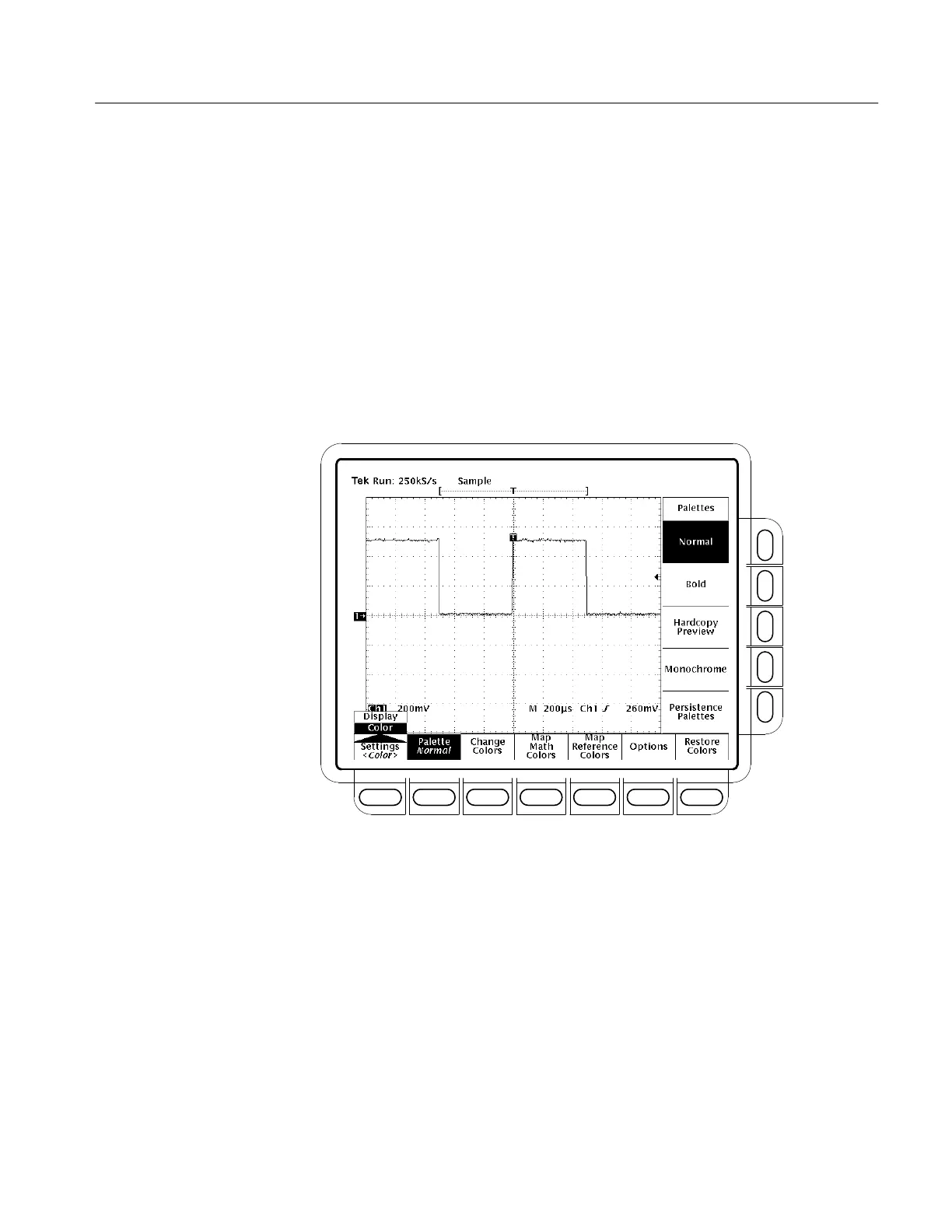

Figure 3–19: Display Menu — Setting
The Color menu allows you to alter color settings for various display compo-
nents such as waveforms and text. The Display menu allows you to adjust the
style, intensity level, graticule, and format features. To find more information on
display, see Change the Display Settings on page 3–28.
To choose a palette of 13 colors from a menu of preset palettes:
1. Choose the starting palette by selecting Palette from the main menu.
Change the Display Color
Choose a Palette
