Triggering on Waveforms

TDS 500B, TDS 600B, & TDS 700A User Manual

3–67

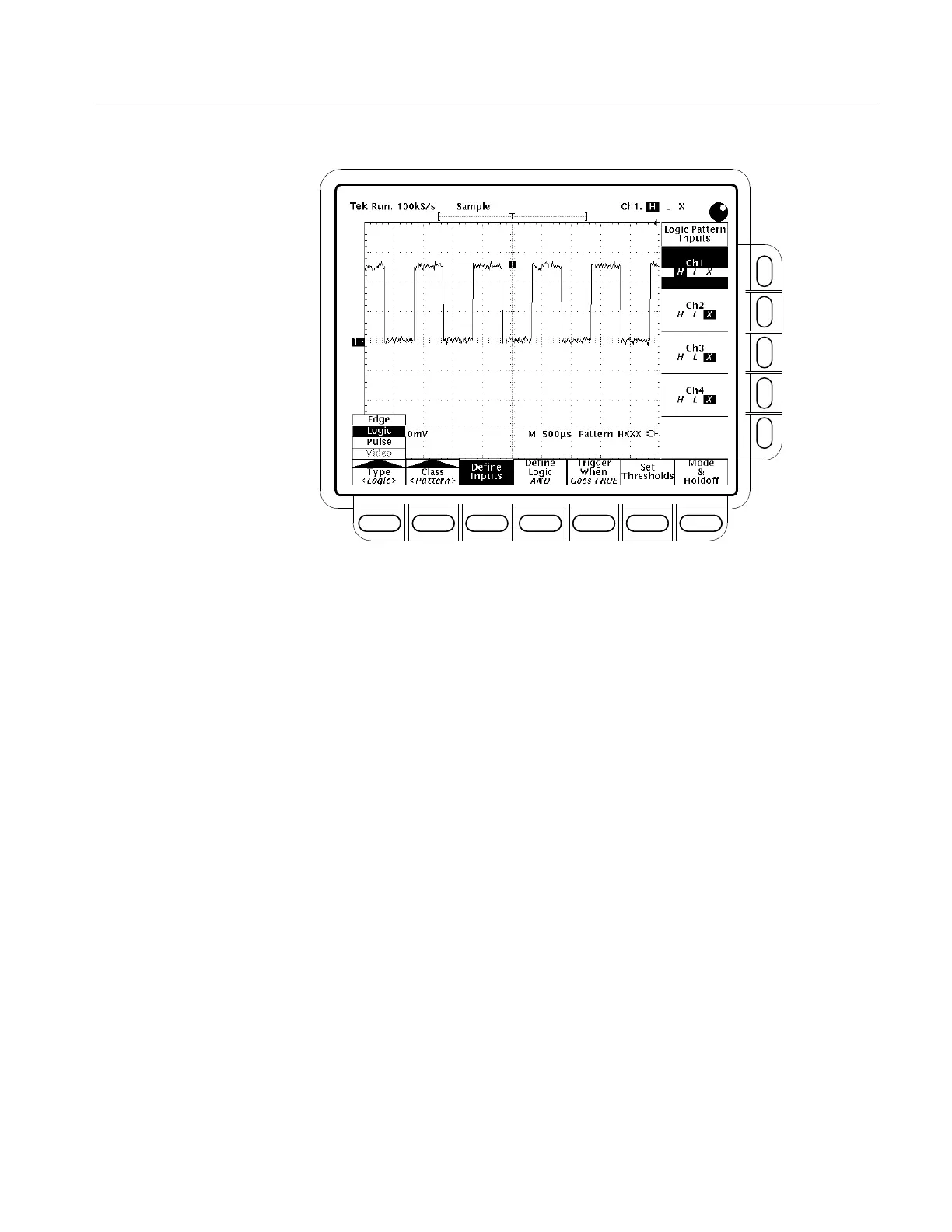

Figure 3–40: Logic Trigger Menu

To Define Pattern Inputs. To set the logic state for each of the input channels

(Ch1, Ch2, ...):

1. Press TRIGGER MENU ➞ Type (main) ➞ Logic (pop-up) ➞

Class (main) ➞ Pattern (pop-up) ➞ Define Inputs (main) ➞ Ch1, Ch2,

Ch3, or Ch4 (side).

2. Repeatedly press each input selected in step 1 to choose either High (H),

Low (L), or Don’t Care (X) for each channel.

To Set Thresholds. To set the logic threshold for each channel:

1. Press TRIGGER MENU ➞ Type (main) ➞ Logic (pop-up) ➞

Class (main) ➞ Pattern (pop-up) ➞ Set Thresholds (main) ➞ Ch1, Ch2,

Ch3, or Ch4 (side).

2. Use the MAIN TRIGGER LEVEL knob, the general purpose knob, or the

keypad to set each threshold.
