Service manual: TAC-12D-10
3/9
3.2 Assembly
Uplift air conditioner unit into front door of the cabinet, position it on the fixing frame
bonded with gaskets, and rivet it with M4 nuts. Care must be taken to ensure that the
internal air outlet of the unit is contraposed to that of the cabinet(see figure 3.1)

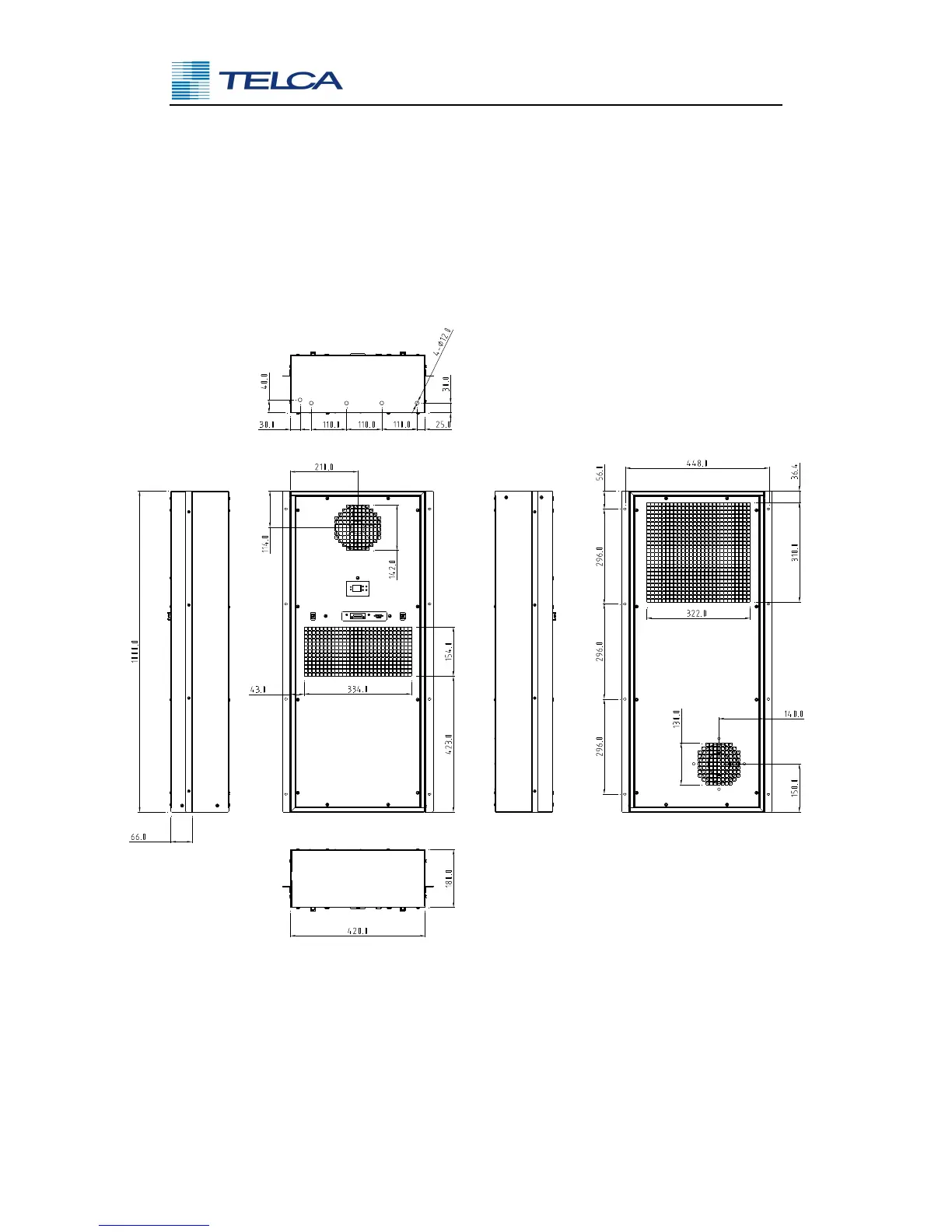

Fig.3.1
