Assembly instructions
Magic Sat Easy Vers. 003
8

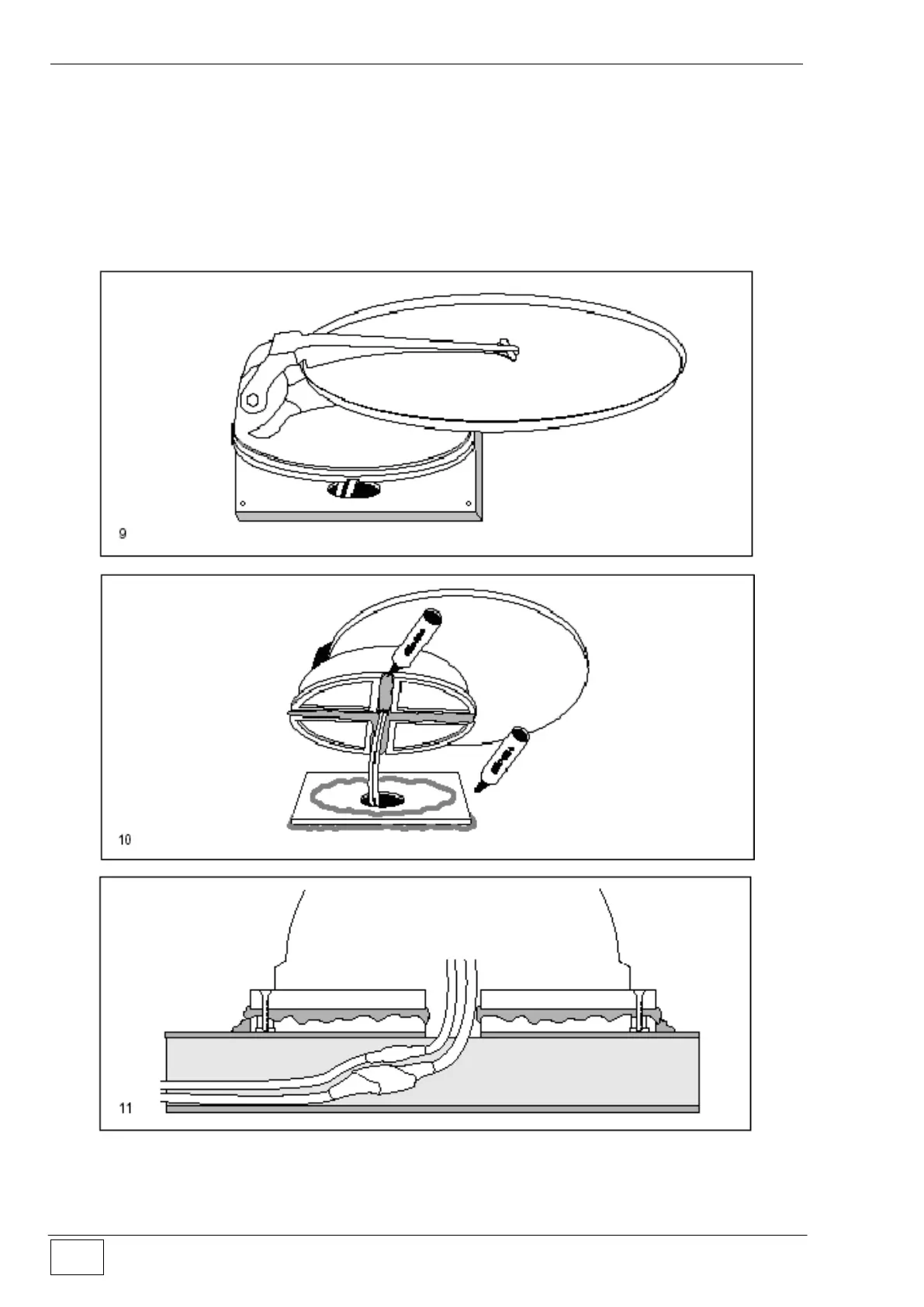

11) Install the OUTSIDE UNIT on the base plate, remembering that:
a) The right position is the one shown on (Fig. 9)
b) Apply an abundant layer of silicone on both the base plate and the bottom of
the driving unit (Fig. 10) so as to prevent any infiltration by water. Screw
down the 4 supplied nuts by the screws and tighten properly (Fig. 11)
