Attach the second blue wire:

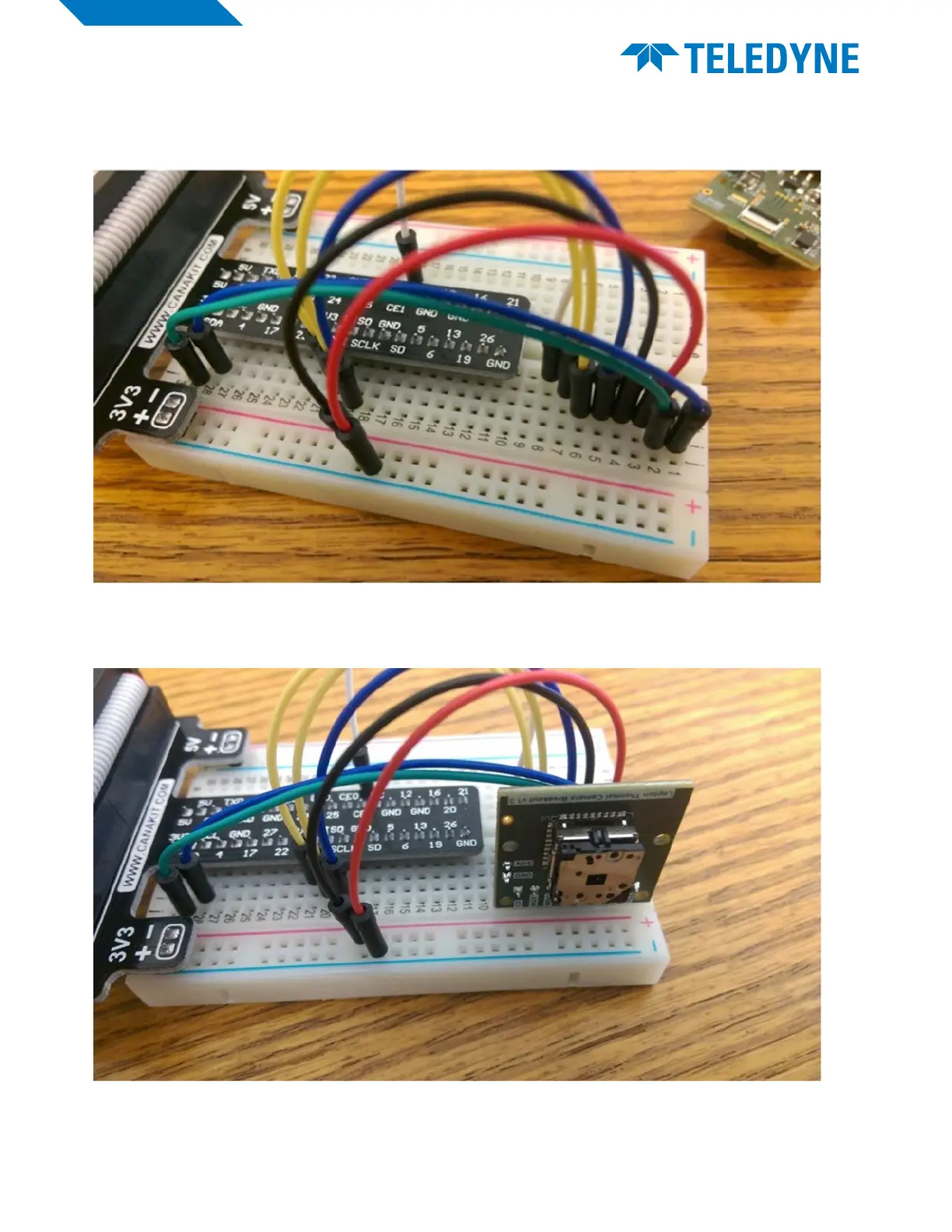

7 Attach Lepton camera to bread board such that it is facing outwards and that the pins occupy rows
1-8 as shown below.
