Teleflex MV-2 Series - Reversing Throttle Action; Throttle Arm and Dwell Block Adjustment

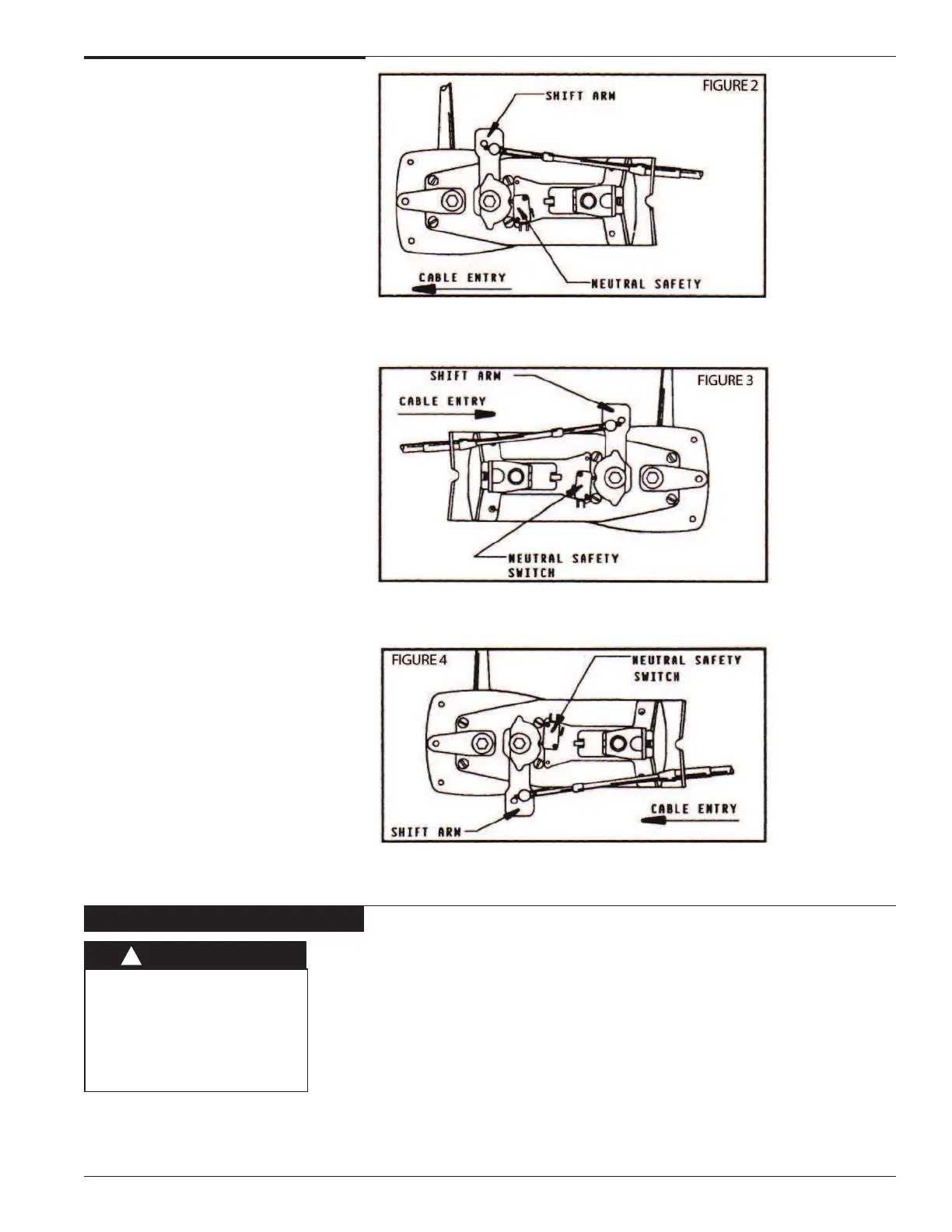

R.H. CABLE FROM FRONT-PULL TO GO FORWARD
L.H. CABLE FROM REAR-PUSH TO GO FORWARD
R.H. CABLE FROM REAR-PUSH TO GO FORWARD
L.H. CABLE FROM FRONT-PULL TO GO FORWARD
R.H. CABLE FROM FRONT-PUSH TO GO FORWARD
L.H. CABLE FROM REAR-PULL TO GO FORWARD
Reversing Throttle Action
Check the carburetor throttle arm to determine whether Push or Pull is required
to open the throttle.
If action is incorrect, reverse throttle arm by unscrewing Hex Head Bolt and
large Flat Washer. Remove arm and assemble in opposite position as shown in
FIGURE 5.
Also reverse position of Dwell Block and Spring by remoning the Round Head
Slotted Screw, Flat Washer and Nut. Reassemble in the opposite position as shown
in Figure 5.
Throttle Arm and Dwell Block
must both point with cable en-
try for “Push To Open” or both
must point against cable entry
for “Pull To Open, as shown in
FIGURE 5.
Page 4 of 10
WARNING
!
