Telefunken M 204 E - Mechanical Parts

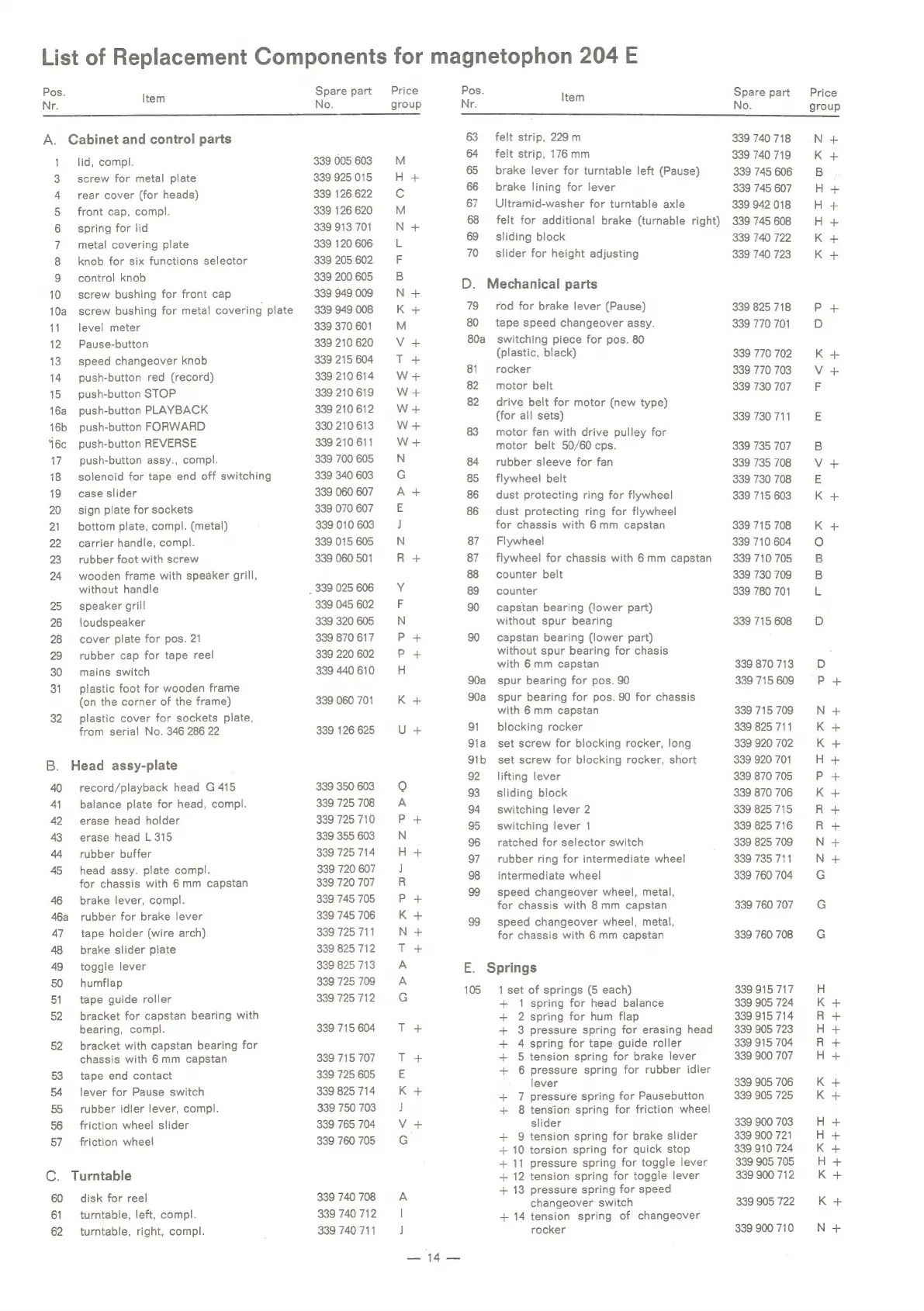

List of Replacement Components for magnetophon 204 E
~ te oo
A. Cabinet and control parts
1 lid, compl. 339 005 603 M
3 screw for metal plate 339 925 015 H+
4 rear cover (for heads) 339 126 622 Cc
5 front cap, compl. 339 126 620 M
6 — spring for lid 339 913 701 N +
7 metal covering plate 339 120 606 L
8 knob for six functions selector 339 205 602 E
9 control knob 339 200 605 B
10 screw bushing for front cap 339 949 009 N +
10a screw bushing for metal covering plate 339949008 K +
11 level meter 339 370 601 M
12 Pause-button 339 210 620 V+
13 speed changeover knob 339 215 604 T+
14 push-button red (record) 339 210 614 W +
15 push-button STOP 339 210 619 W+
16a push-button PLAYBACK 339 210 612 W+
16b push-button FORWARD 330 210 613 W+
46c push-button REVERSE 339210611 W+
17. push-button assy., compl. 339 700 605 N
18 solenoid for tape end off switching 339 340 603 G
19 case slider 339 060 607 A+
20 sign plate for sockets 339 070 607 E
21. bottom plate, compl. (metal) 339 010 603 J
22 ~carrier handle, compl. 339 015 605 N
23 rubber foot with screw 339 060 501 R +
24 wooden frame with speaker grill,
without handle , 339 025 606 Y
25 speaker grill 339 045 602 F
26 loudspeaker 339 320 605 N
28 cover plate for pos. 21 339 870 617 P+
29 rubber cap for tape reel 339 220 602 P+
30 mains switch 339 440 610 H
31 plastic foot for wooden frame
(on the corner of the frame) 339 060 701 K +
32 plastic cover for sockets plate,
from serial No. 346 286 22 339 126 625 U+
B. Head assy-plate
40 record/playback head G 415 339 350 603 QO
41 balance plate for head, compl. 339 725 708 A
42 erase head holder 339 725 710 P+
43 erase head L315 339 355 603 N
44 rubber buffer 339 725 714 H+
45 head assy. plate compl. 339 720 607 J
for chassis with 6 mm capstan 339 720 707 R
46 brake lever, compl. 339 745 705 P+
46a rubber for brake lever 339 745 706 K+
47 tape holder (wire arch) 339 725 711 N +
48 brake slider plate 339 825 712 T+
49 toggle lever 339 825 713 A
50 humflap 339 725 709 A
51.‘ tape guide roller 339 725 712 G
52 bracket for capstan bearing with
bearing, compl. 339 715 604 T+
52 bracket with capstan bearing for
chassis with 6mm capstan 339 715 707 T+
53 tape end contact 339 725 605 E
54 lever for Pause switch 339 825 714 K+
55 ~—rubber idler lever, compl. 339 750 703 J
56 friction wheel slider 339 765 704 V+
57 friction wheel 339760705 GG
C. Turntable
60 disk for reel 339 740 708 A
61 turntable, left, compl. 339 740 712 I
62 turntable, right, compl. 339 740 711 J
= ta
Pos. iismn Spare part Price
Nr. No. group
63 felt strip, 229m 339 740 718 N +
64 felt strip, 176 mm 339 740 719 K +
65 brake lever for turntable left (Pause) 339 745 606 B
66 brake lining for lever 339 745 607 H+
67 Ultramid-washer for turntable axle 339 942 018 H+
68 felt for additional brake (turnable right) 339 745 608 H+
69 sliding block 339 740 722 K+
70 slider for height adjusting 339 740 723 K +
D. Mechanical parts
79 rod for brake lever (Pause) 339 825 718 P+
80 tape speed changeover assy. 339 770 701 D
80a _ switching piece for pos. 80
(plastic, black) 339 770 702 K+
81 rocker 339 770 703 V+
82. motor belt 339 730 707 F
82 drive belt for motor (new type)
(for all sets) 339 730 711 E
83 motor fan with drive pulley for
motor belt 50/60 cps. 339 735 707 B
84 rubber sleeve for fan 339 735 708 V+
85 flywheel belt 339 730 708 E
86 dust protecting ring for flywheel 339 715 603 K +
86 dust protecting ring for flywheel
for chassis with 6 mm capstan 339 715 708 K +
87 Flywheel 339 710 604 oO
87 flywheel for chassis with 6 mm capstan 339 710 705 B
88 counter belt 339 730 709 B
89 counter 339 780 701 L
90 capstan bearing (lower part)
without spur bearing 339 715 608 D
90 capstan bearing (lower part)
without spur bearing for chasis :
with 6 mm capstan 339 870 713 D
90a spur bearing for pos. 90 339 715 609 P+
90a spur bearing for pos. 90 for chassis
with 6 mm capstan 339 715 709 N +
91. blocking rocker 339 825 711 K +
91a set screw for blocking rocker, long 339 920 702 K +
91b set screw for blocking rocker, short 339 920 701 H+
92 lifting lever 339 870 705 P+
93 sliding block 339 870 706 K +
94 switching lever 2 339 825 715 R +
95 switching lever 1 339 825 716 R +
96 __ratched for selector switch 339 825 709 N+
97 rubber ring for intermediate wheel 339 735 711 N +
98 intermediate wheel 339 760 704 G
99 speed changeover wheel, metal,
for chassis with 8mm capstan 339 760 707 G
99 speed changeover wheel, metal,
for chassis with 6 mm capstan 339 760 708 G
E. Springs
105 1 set of springs (5 each) 339 915 717 H
+ 1 spring for head balance 339 905 724 K +
+ 2 spring for hum flap 339 915 714 R +
+ 3 pressure spring for erasing head 339905 723 H +
+ 4 spring for tape guide roller 339 915 704 R+
+ 5 tension spring for brake lever 339 900 707 H +
+ 6 pressure spring for rubber idler
lever 339 905 706 K +
+ 7 pressure spring for Pausebutton 339 905 725 K +
+ 8 tension spring for friction wheel
slider 339 900 703 H+
+ 9 tension spring for brake slider 339 900 721 H+
+ 10 torsion spring for quick stop 339 910 724 K +
+ 11 pressure spring for toggle lever 339 905 705 H+
+ 12 tension spring for toggle lever 339 900 712 K +
+ 13 pressure spring for speed
changeover switch 339 905 722 K+
+ 14 tension spring of changeover
rocker 339 900 710 N+
