If you have an S-Video player you can
connect it to SCART socket 3 (optional)
via an adaptor from scart to S-Video/RCA
audio (not supplied).
S-Video Player
Plug a coaxial plug into the RF out socket on
the rear of the video recorder and plug the
other end into the aerial socket of the TV.
Switch on the video recorder and the TV.
If your video recorder has a test signal, switch
it on. (Refer to the video recorder user guide).
See ‘Tuning the TV’ and carry out the tuning
procedure for the video recorder test signal.
Select a program number 0.
Press the AV button repetitively
to select AV3-S.(3 scart models only)
Press the AV button repetitively
to select AV3-S or AV4-S (optional).
Plug the S-Video plug into the S-Video
socket and the audio leads into the audio
sockets.
You can also connect it through the
S-Video socket of the TV.

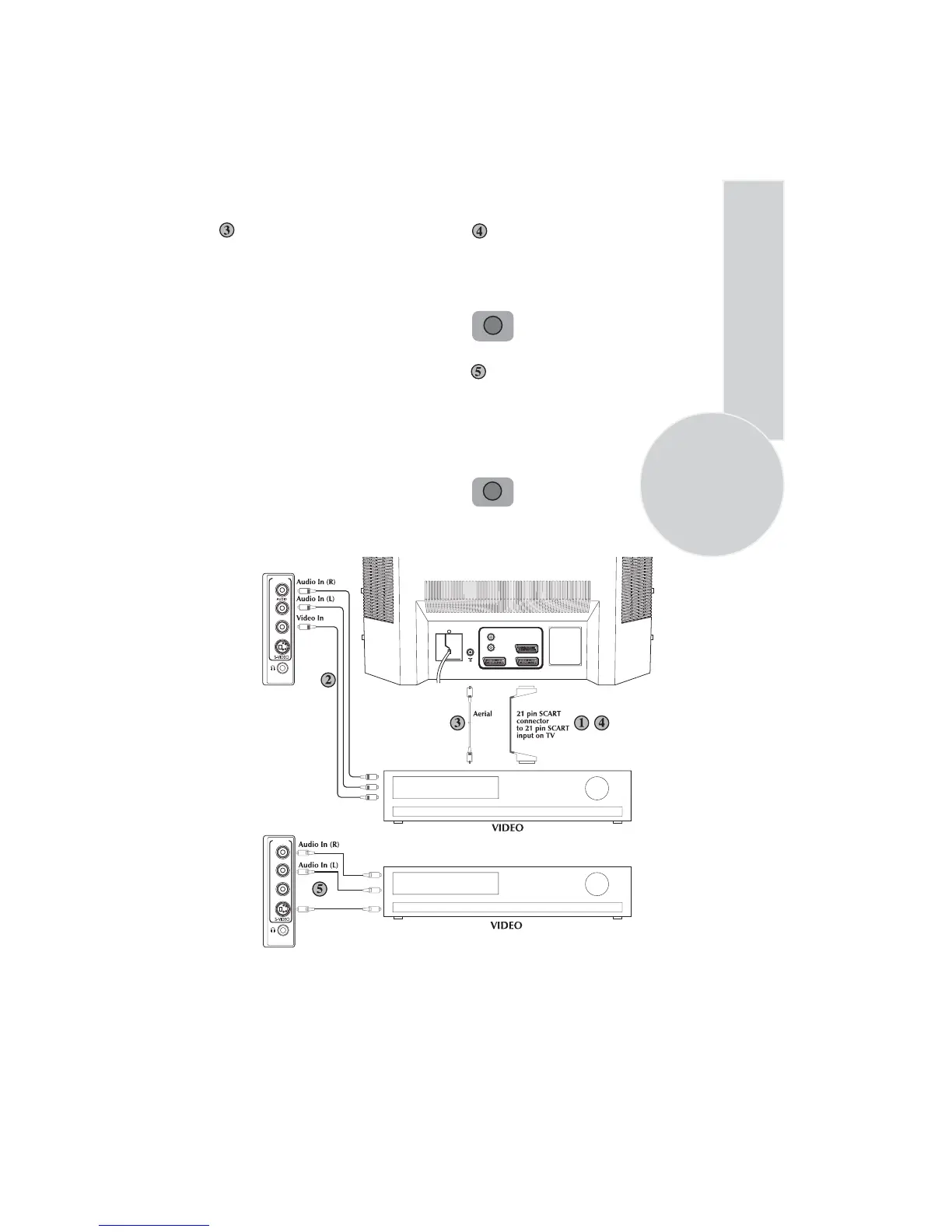

Via RCA lead and S-Video socket
AV3/AV4
Via aerial socket
Make sure the TV and video recorder are
both switched off.
Unplug the aerial lead from the TV and plug
it into the aerial socket on the video
recorder (if fitted).
