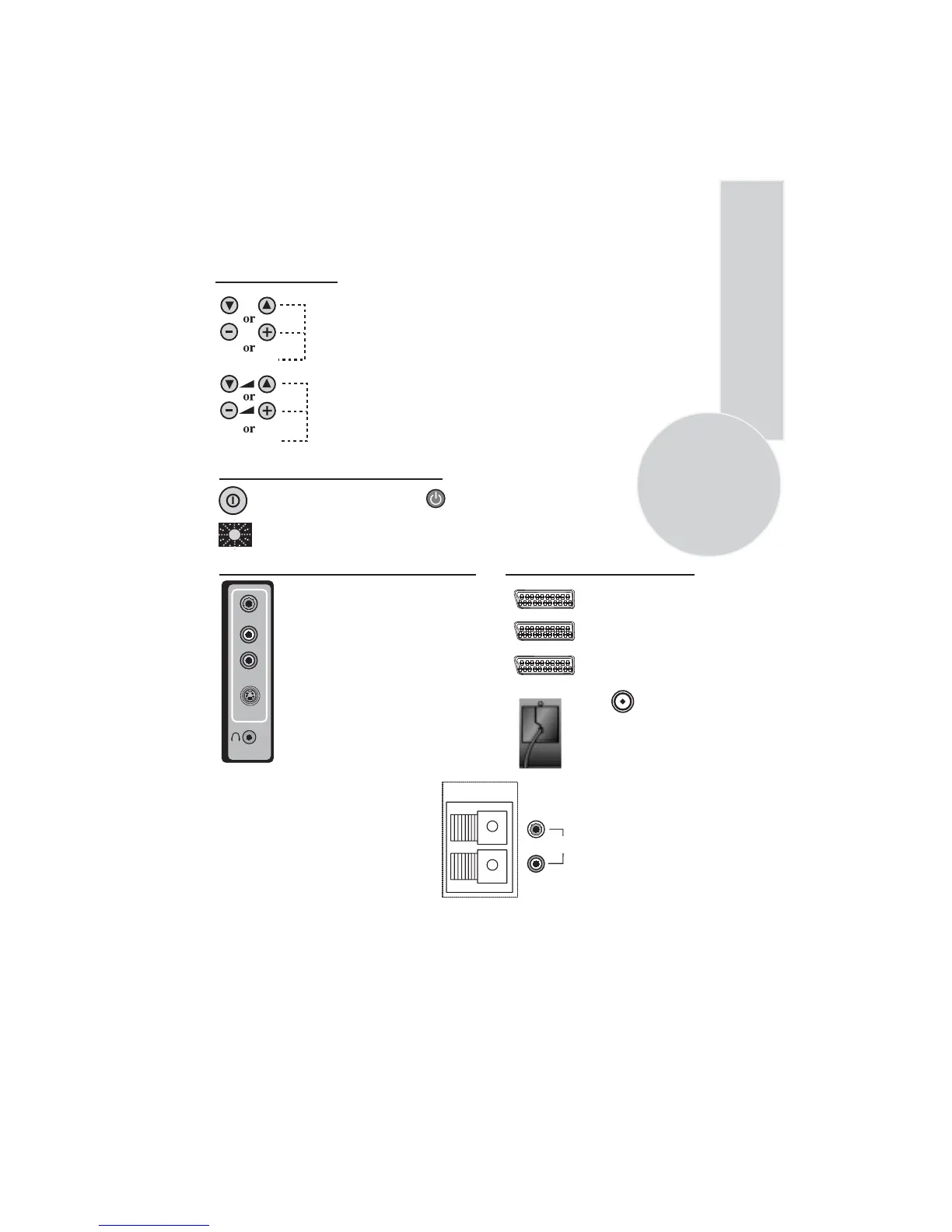

Control Unit
Front panel
Program Down/Up button
Volume Down/Up button.
General
Program ON/OFF switch Stand by (Depends on model)
Stand by indicator
External Connections: (Front or side)
Right audio RCA (Red)
Left audio RCA (White)
Video RCA (Yellow)
S-Video connection
Headphone socket
Please note
• See the external connections table on next page for available connections depending on the size
and model of your TV set.
• Do not use Video RCA and S-Video connections at the same time, otherwise they will effect the
picture each other.
• RGB inputs from scart will give you better picture quality.
AV1 scart (RGB)
(External connections: (Rear)
AV2 scart (Composite)
Aerial socket
You may wish to connect
audio amplifier or any
similar devices to audio
out. The output is always
the current channel you
are watching.
AV3 scart (RGB) (Optional)
Power cable
5
P- P+
V- V+
AUDIO
VIDEO
S-VIDEO
R
L
AUDIO
OUT
R
L
SUBWOOFER
Optional
It is used for external
subwoofer in 33” televisions
