makes it easy to bolt the indexer to the bottom of the chamber with the nut of a 1"
feedthru.
With Telemark thru baseplate Sources (231, 238, 267, 268, 277 or 281) the motor
can be installed on the motor bracket.
With an internal chain drive the source can lined up so the pocket is in the center
of the chamber or new source can be fitted in an existing chamber.
External chain drives can be used when space under the chamber is at a
premium, it is best not to mount the indexer farther away than needed.
3-2 INSTALLATION
Telemark 376/379 Crucible Indexer

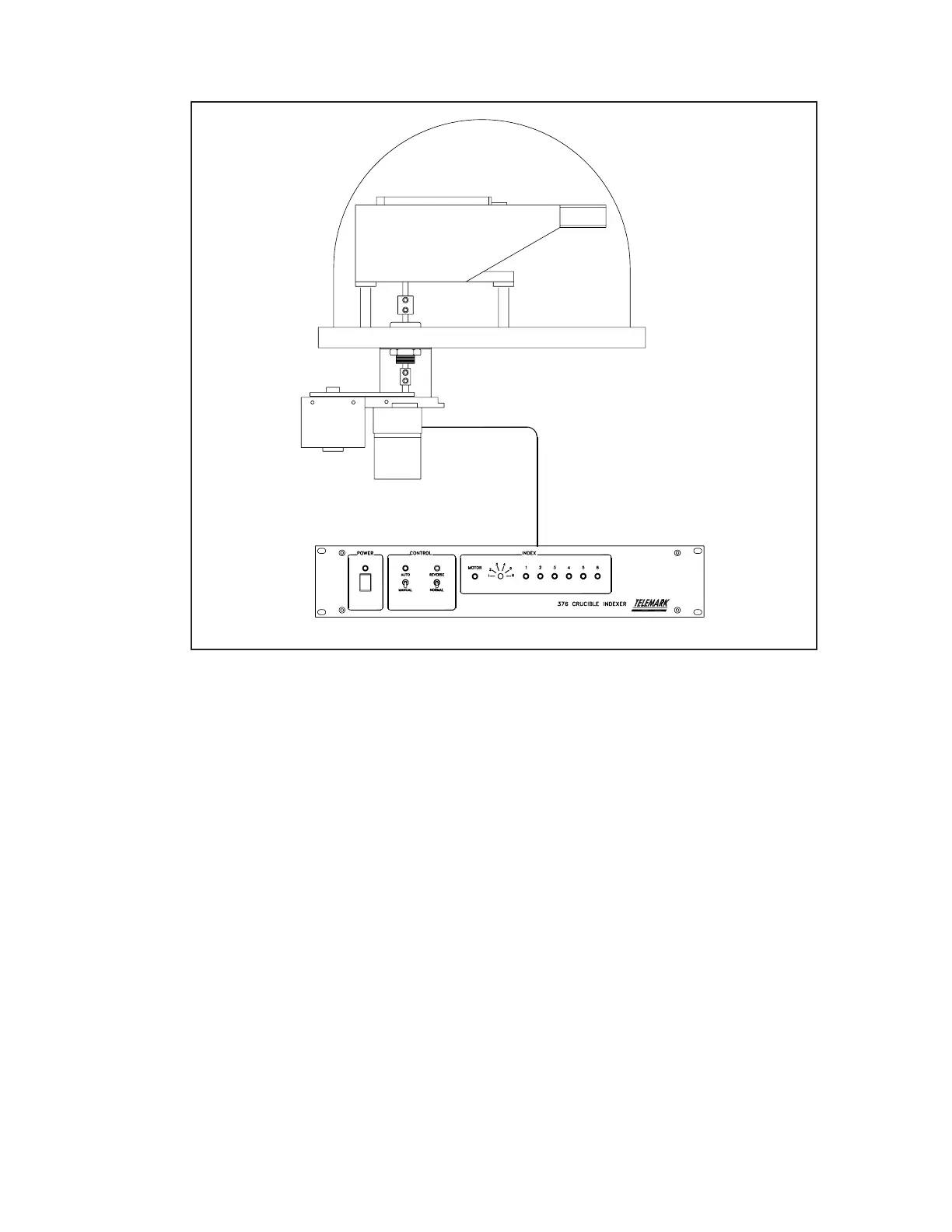

Figure 3-A
Sugested
Installation
