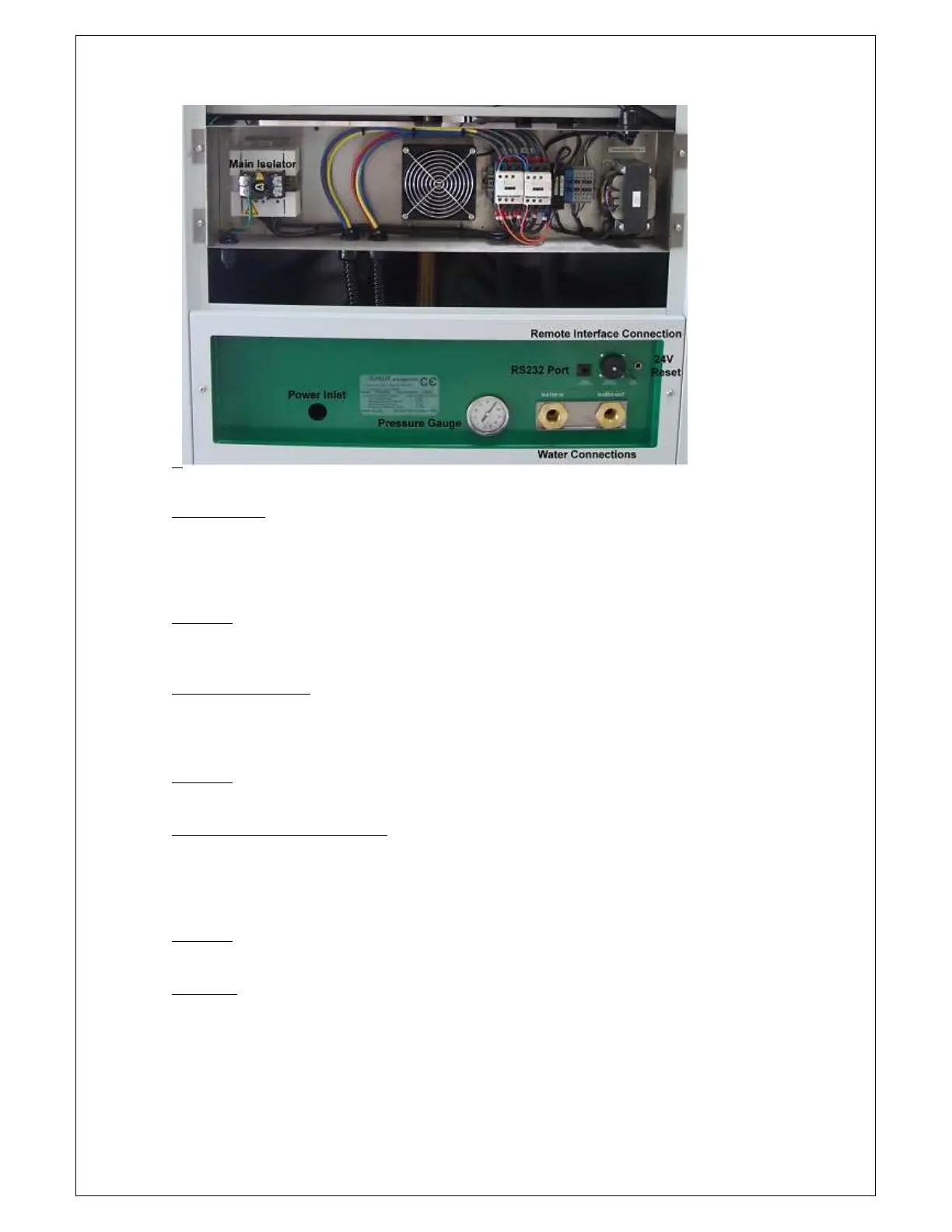

Diagram 9 Services panel
Warranty Card
Included with every system is a warranty card. Please complete this and either post, email or
fax the form to the address shown. We will register your machine and ensure that you receive
the latest software upgrades. Failure to complete the warranty card may cause delays in
servicing or providing parts.
CAUTION
The TVP must only be moved either by forklift or by strapping through the forklift truck points.
Do not install the system on shipping pallet.
2.03 Location of TVP
Position the TVP to minimise the length of the refrigeration lines. It is also important that the
lines are well supported and are manufactured from annealed copper tubing allowing for
thermal expansion and vibration.
CAUTION
70mm access to left hand panel must be maintained to ensure air flow to the unit compressor.
2.04 Electrical Power Installation
The electrical system requires no neutral, a circuit breaker with a value suitable for the
maximum current draw must be selected. Local electrical codes must be followed in selecting
the correct values. The unit is phase sensitive and may require the phases to be swapped
following initial start.
CAUTION
Phase protection against the loss of phase is strongly recommended.
WARNING
The system contains high voltage (208 or 415VAC) and high power components. To avoid the
possibility of a fatal electrical shock always isolate the unit from the mains supply before
working on the system. A qualified technician should carry out the electrical work.
