Page 30 of 30
TVP Manual (full) March 2007 CE rev 03.doc

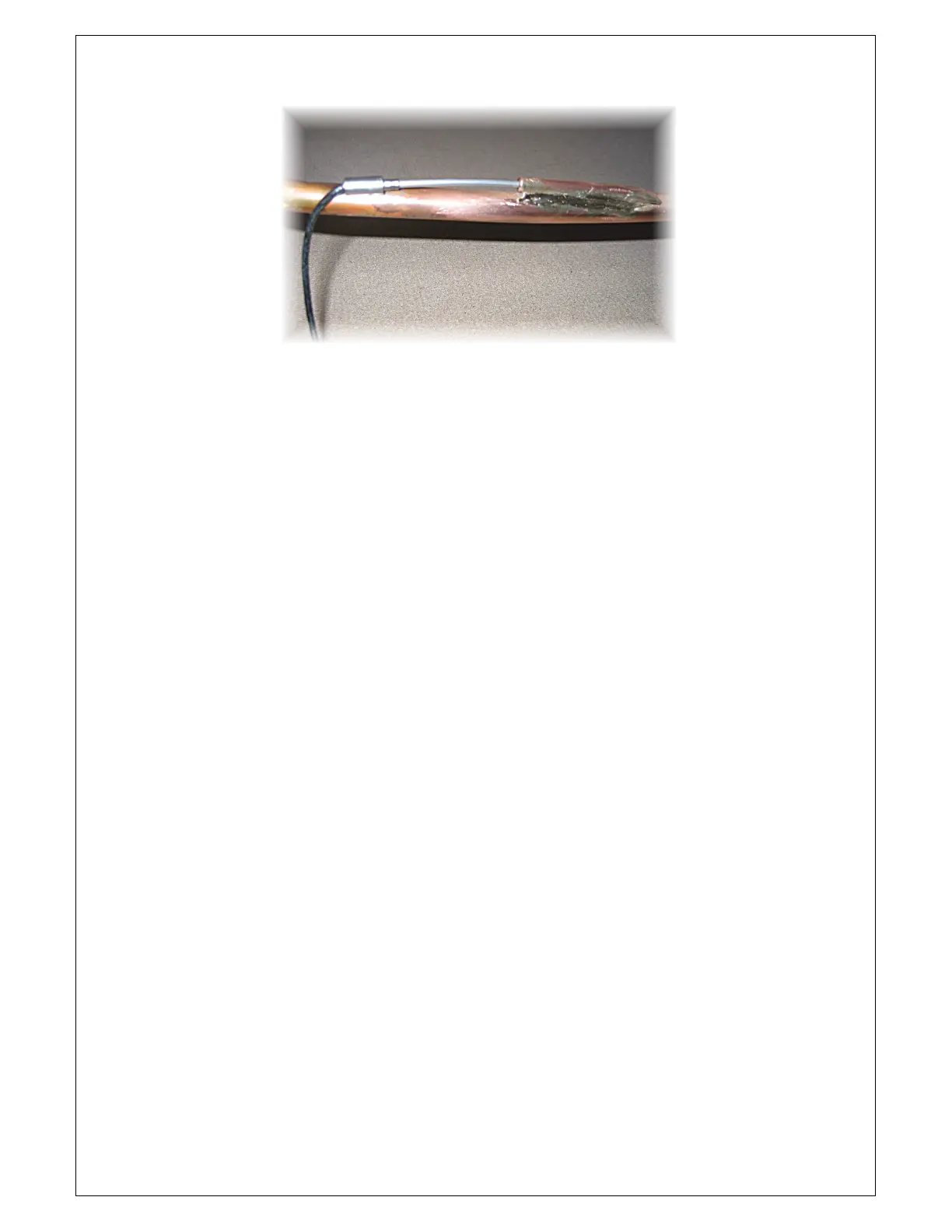

Diagram 15 Remote sensor attached to copper line.
Telemark has supplied high quality sensors with a ductile stainless steel sheaths never directly
silver solder these couplings onto refrigeration lines. Solder a ¼” copper line on to the
refrigeration where they leave the vacuum feed-through and insert the sensor into the pocket
formed use a little thermally conductive grease.
