Telematrix Retro Series - Retro Series Phone Map; Base Features and Controls

RETRO SERIES USER GUIDE www.telematrix.net 3
Retro Series Phone Map

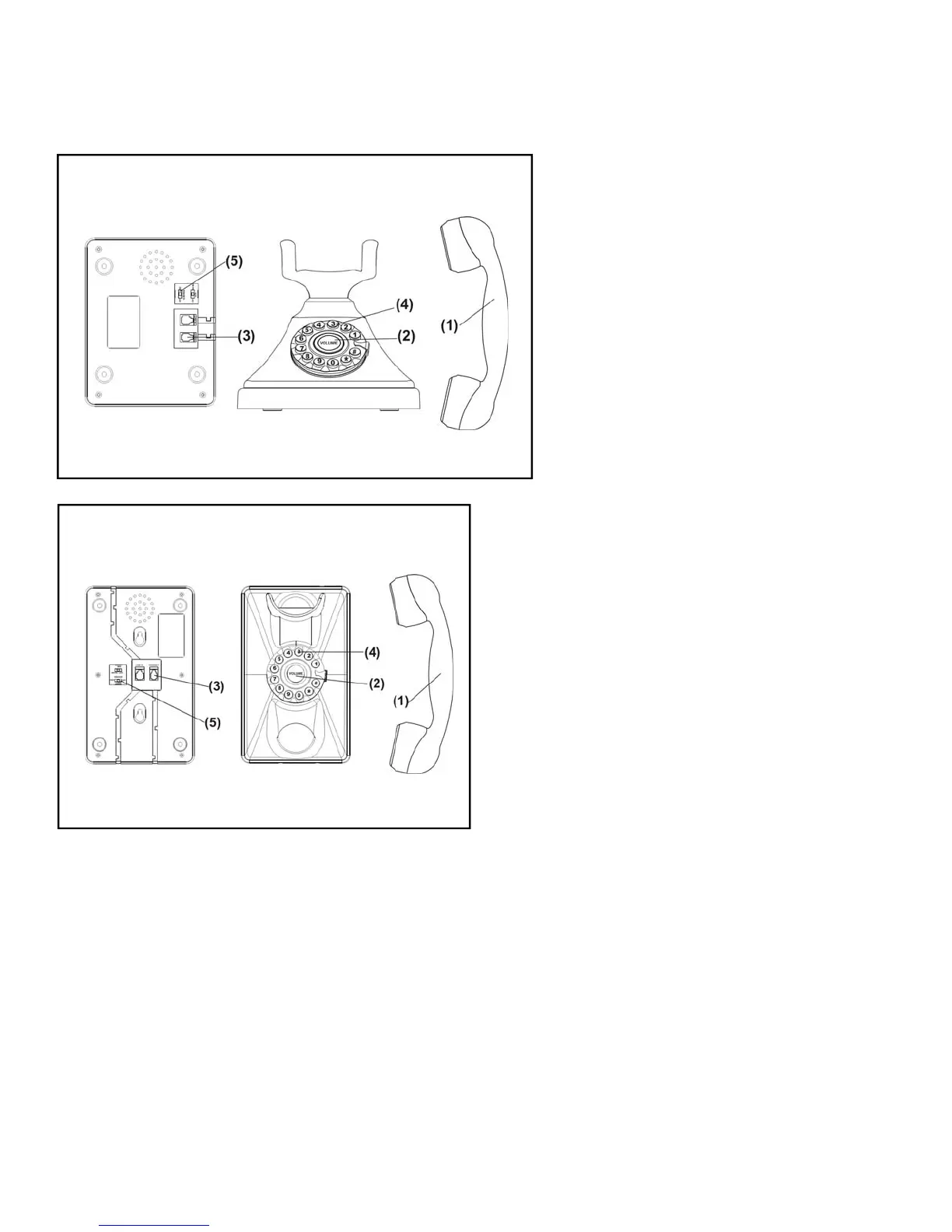

BASE FEATURES AND CONTROLS
1. Handset
2. Handset Volume Control
3. Handset Jack
4. Dial Pad
5. Ringer Controls
1
DESK MOUNT VERSION
WALL MOUNT VERSION
DEFINITION OF CONTROLS
1. Handset ..........…………..…… Hearing aid compatible, low profile styling.
2. Handset Volume Control …. Adjusts the loudness of the receiver volume when pressed.
3. Handset Jack ……………………. Modular receptacle where handset cord plugs into the base unit.
4. Dial Pad ……………………………. Large keys used for dialing.
5. Ringer Controls ………………… Adjusts the volume of the ringers to ON/OFF setting.
1
DESK MOUNT VERSION
WALL MOUNT VERSION
DEFINITION OF CONTROLS
1. Handset ..........…………..…… Hearing aid compatible, low profile styling.
2. Handset Volume Control …. Adjusts the loudness of the receiver volume when pressed.
3. Handset Jack ……………………. Modular receptacle where handset cord plugs into the base unit.
4. Dial Pad ……………………………. Large keys used for dialing.
5. Ringer Controls ………………… Adjusts the volume of the ringers to ON/OFF setting.
