DDL : S0/T0 Basic Rate ISDN Card (Expansion Card for PX24M)

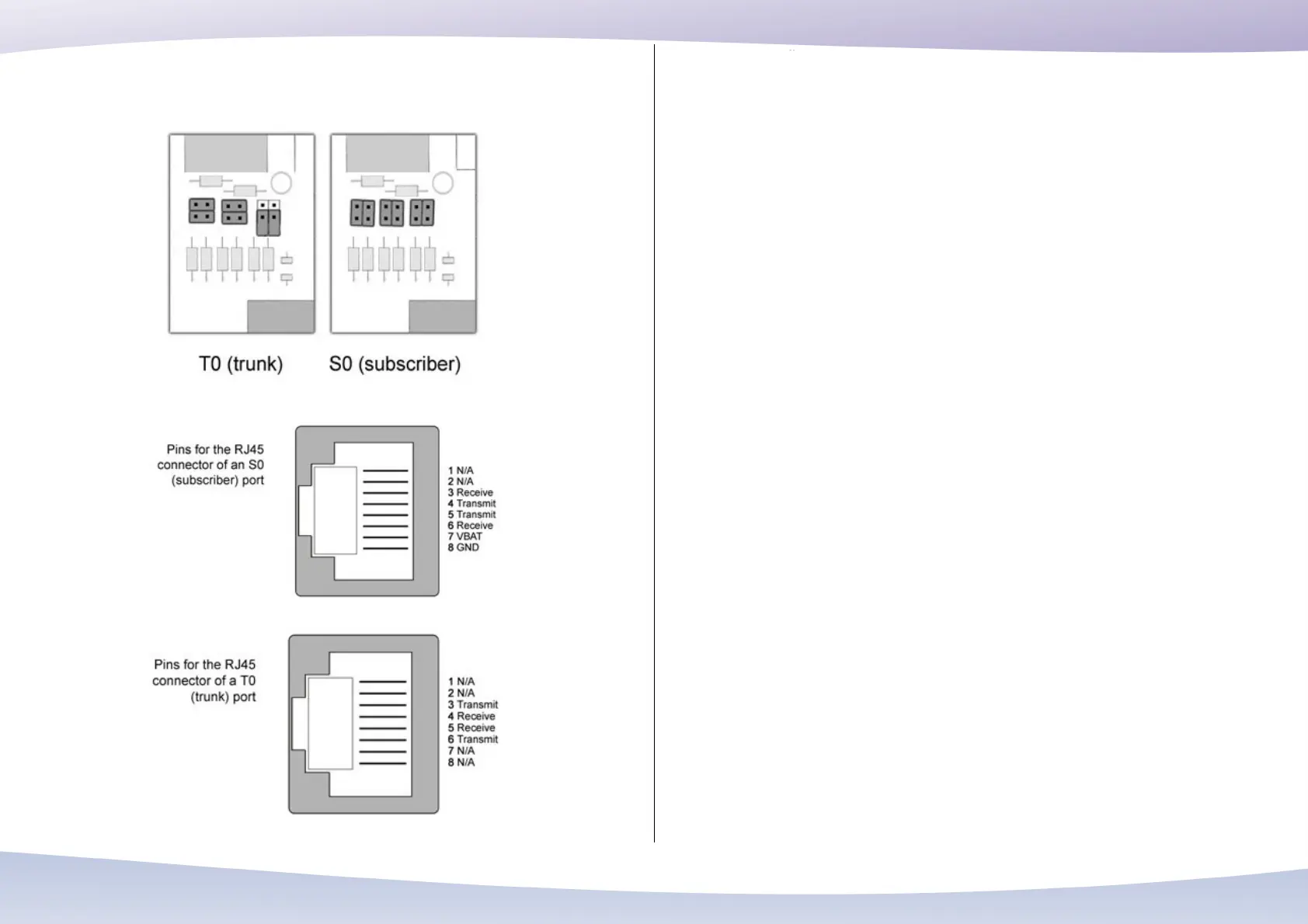

Each port can be configured individually as a subscriber (S0) or a trunk (T0) through
the jumpers as shown below.
Conductors of the RJ45 connector for S0 and T0 configuration are shown below.
Note: DDL card can be inserted into the Expansion Slot -2 only
This page is left blank intentionally
41
