Teleton SAQ-307 - Operating Your

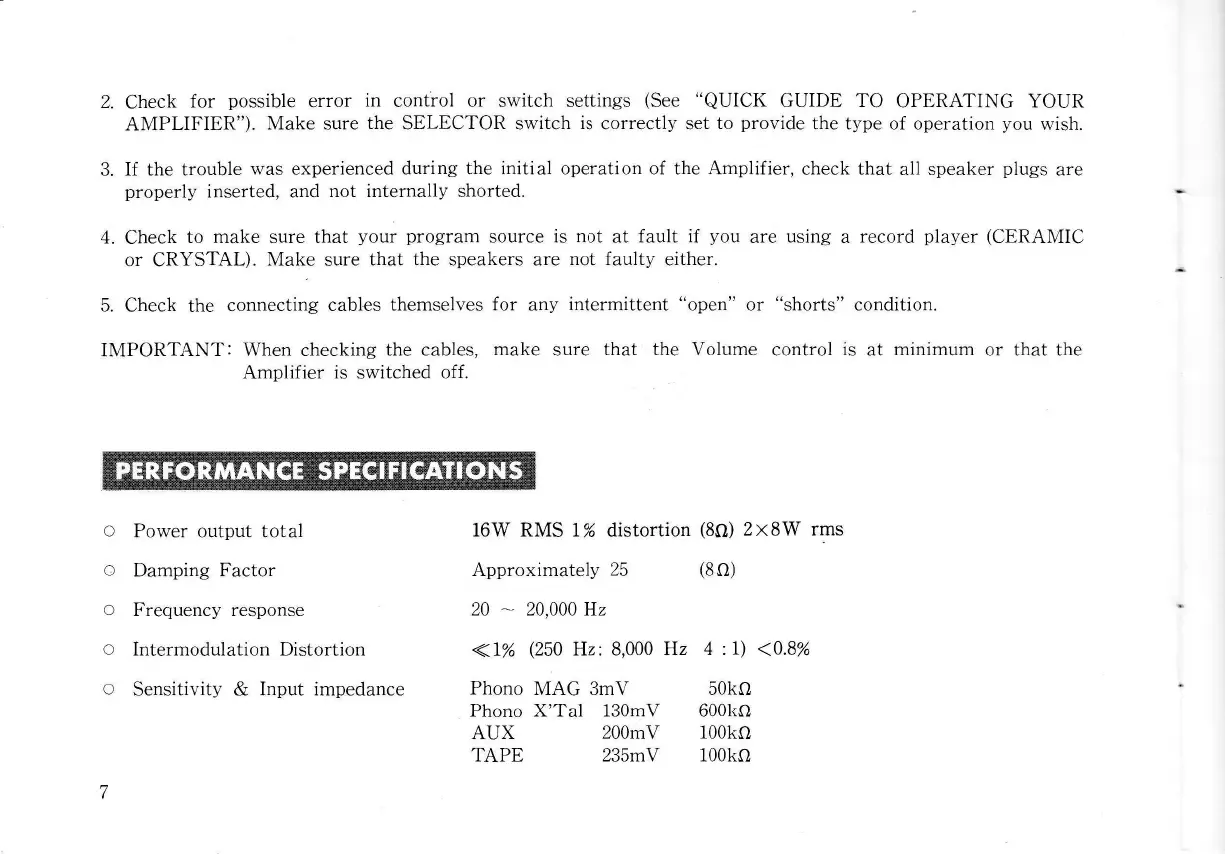

2.
Check
for
possible
error
in
control or switch settings
(See "QUICK
GUIDE TO
OPERATING YOUR
AMPLIFIER").
Make sure
the
SELECTOR switch
is
correctly set
to
provide
the type of operation
you
wish.
3.
If the trouble
was
experienced
during the initial operation of the Amplifier,
check
that
a1l speaker
plugs
are
properly
inserted, and
not internally shorted.
4.
Check
to make sure that
your program
source is
not
at
fault if
you
are
using
a
record
piayer
(CERAMIC
or CRYSTAL).
Make
sure
that the speakers are
not faulty
either.
5.
Check the
connecting
cables
themselves for any
intermittent
"open"
or
"shorts"
condition.
IMPORTANT:
When checking
the cables,
make
sure
that the Volume
control
is
at
minimum
or that the
Amplifier
is
switched
off.
o
Power output total
o
Damping Factor
o
Frequency response
o
Intermodulation Distortion
o
Sensitivity & Input impedance
16W RMS l%
distortion
(8O)
2x8W
rms
Approximately
25
(8O)
20
-
20,000 Hz
<l%
(250
Hz: 8,000
Hz 4 :7)
<0.8%
Phono
MAG 3mV 50kO
Phono X'Tal 130mV 600k0
AUX 200mV
100kC)
TAPE 235mV 100kO
