9 MECHANICAL DESIGN
9.1 General
The FN990 Family module was designed to be compliant with a standard lead-free SMT
process.
9.2 Finishing & Dimensions
The FN990 Family module’s overall dimensions are:
•
Length: 52.00 mm
•
Width: 30.00 mm
•
Thickness: 2.25 mm
9.3 Drawing

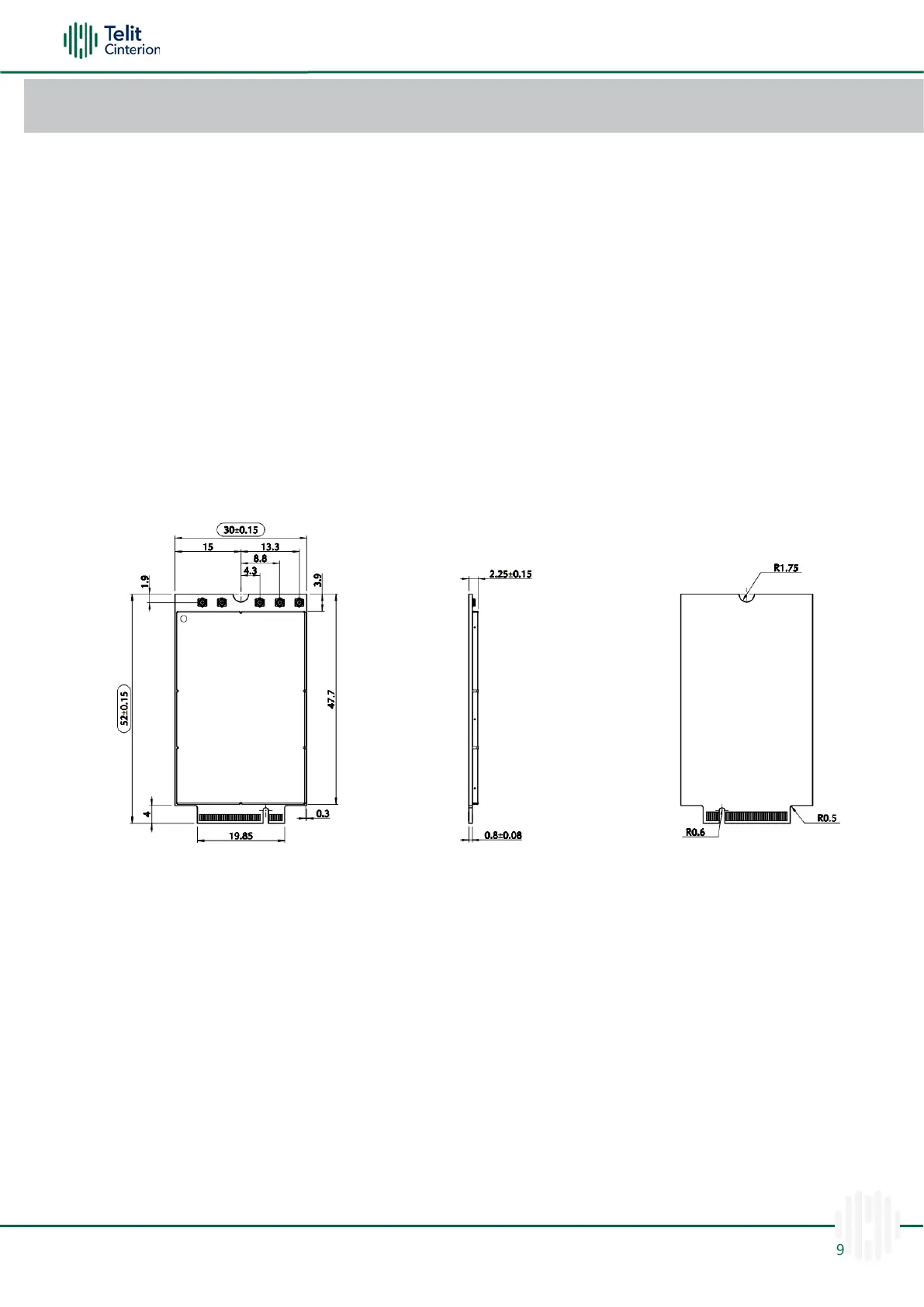

This figure shows the mechanical dimensions of the FN990 Family module.
Figure 22: FN990 Family Module Mechanical Dimensions
