INSTALLATION INSTRUCTIONS R−410A Ductless Split System: DLF4(A/H), DLC4(A/H)
421 01 9220 00 5
13.4
(340.4)
35
(889.0)
37.6
(955.0)
22
(558.8)
14.5
(368.3)
27.6
(701.0)
15.6
(396.2)
in. (mm)

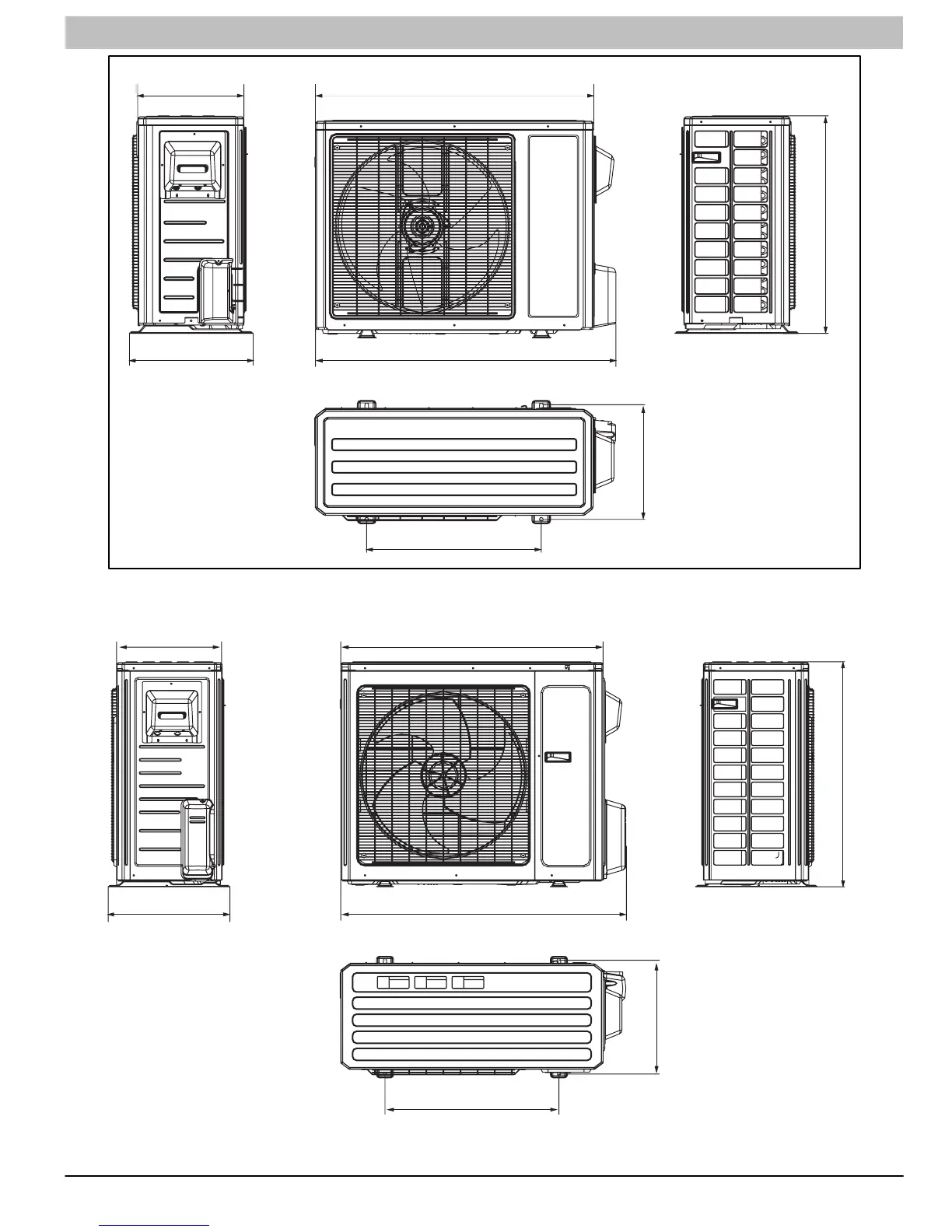

UNIT SIZE − 18
(Net Operating Weight: 99 lbs.- 45 kg.)
A12382
14.6
(368.3)
16.8
(426.7)
38.6
(980.4)
36
(914.4)
24
(609.6)
15.7
(398.8)
31.1
(789.9)
in. (mm)
UNIT SIZE − 24
(Net Operating Weight: 121 lbs.- 55 kg.)
A12383
