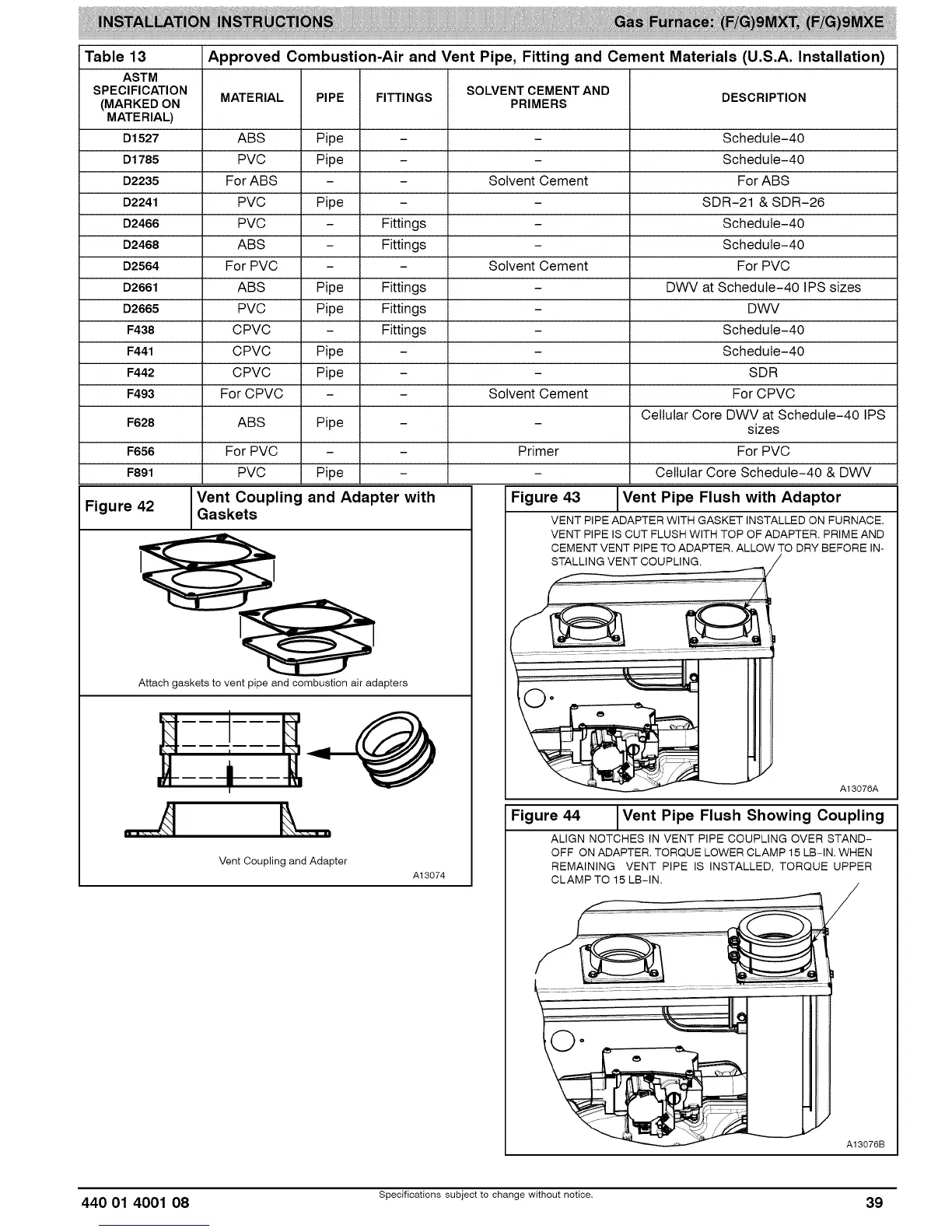

Approved Combustion-Air and Vent Pipe, Fitting and Cement Materials (U.S.A. Installation)
Table 13
ASTM
SPECIFICATION
(MARKED ON
MATERIA_
D1527
D1785
D2235
D2241
D2466
D2468
D2564
D2661
D2665
F438
F441
F442
F493
F628
F656
F891
MATERIAL PIPE FITTINGS
Figure 42
ABS Pipe -
PVC Pipe -
For ABS - -
PVC Pipe -
PVC - Fittings
ABS - Fittings
For PVC - -
ABS Pipe Fittings
PVC Pipe Fittings
CPVC - Fittings
CPVC Pipe -
CPVC Pipe -
For CPVC - -
ABS Pipe -
For PVC - -
PVC Pipe -
Vent Coupling and Adapter with
Gaskets
Attach gaskets to vent pipe and combustion air adapters
I
Vent Coupling and Adapter
A13074
SOLVENT CEMENT AND
PRIMERS
Solvent Cement
Solvent Cement
Solvent Cement
Primer
Figure 43
DESCRIPTION
Schedule-40
Schedule-40
For ABS
SDR-21 & SDR-26
Schedule-40
Schedule-40
For PVC
DWV at Schedule-40 IPS sizes
DWV
Schedule-40
Schedule-40
SDR
For CPVC
Cellular Core DWV at Schedule-40 IPS
sizes
For PVC
Cellular Core Schedule-40 & DWV
Vent Pipe Flush with Adaptor
VENT PIPE ADAPTER WITH GASKET INSTALLED ON FURNACE.
VENT PIPE IS CUT FLUSH WITH TOP OF ADAPTER. PRIME AND
CEMENT VENT PIPE TO ADAPTER. ALLOW TO DRY BEFORE IN-
A13076A
Figure 44 I Vent Pipe Flush Showing Coupling
ALIGN NOTCHES IN VENT PIPE COUPLING OVER STAND-
OFF ON ADAPTER. TORQUE LOWER CLAMP 15 LB-IN. WHEN
REMAINING VENT PIPE IS INSTALLED, TORQUE UPPER
CLAMP TO 15 LB-IN.
A13076B
