FOUR NOZZLES VACUUM FILLING MACHINE
MIGNON SET - INSTALLATION

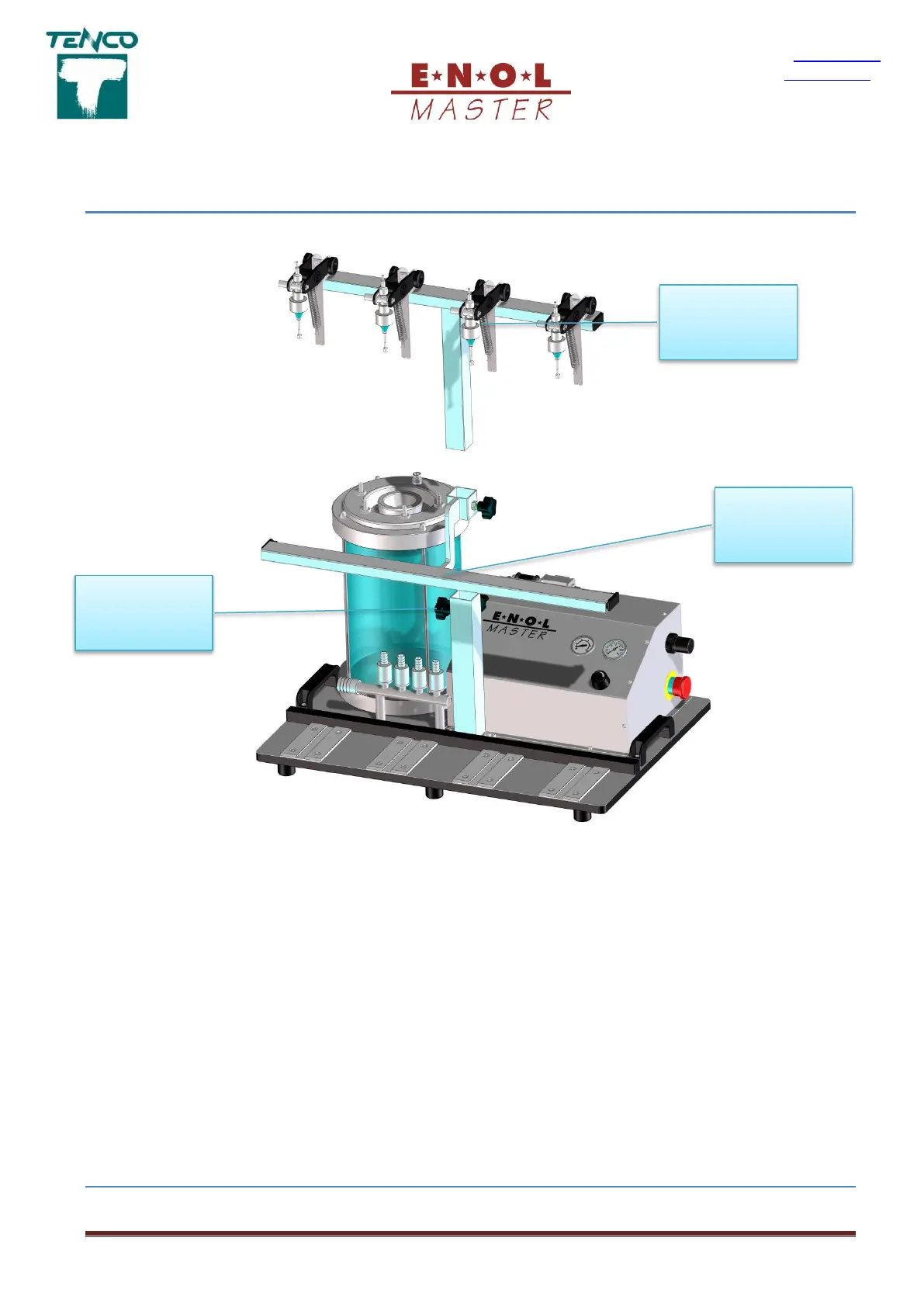

1. Loosen the column knobs.
2. Pull out the “T” rod.
3. Install the miniature bottles stand (2 or 4 positions) on the “T” rod. Pull in the rod on its column. Fasten
the knobs.
4. Connect the flexible hoses from the suction collector to the nozzles lateral manifolds .
COLUMN KNOB
MINIATURE
