Soldering Station
User’s Manual
5. Temperature calibration
You need calibrate the temperature of tip after you replace with a new heating element or tip.
5.1 Enter into calibrating station by long pressing knob “
*
” (>3s).
5.2. You can directly adjust the value of calibration by pressing knob “▲” or “▼”.
5.3. The value of calibration is temperature measure minus the setting. (e.g. Actual value 380°C - Setting value
350°C = +30°C. Pressing knob “▲” adds 30°C; Actual value 320°C - Setting value 350°C = 30°C.
Pressing knob “▼” minus 30°C)
5.4. The calibrating temp range is +50°C to -50°C.
5.5. You can press knob “
*

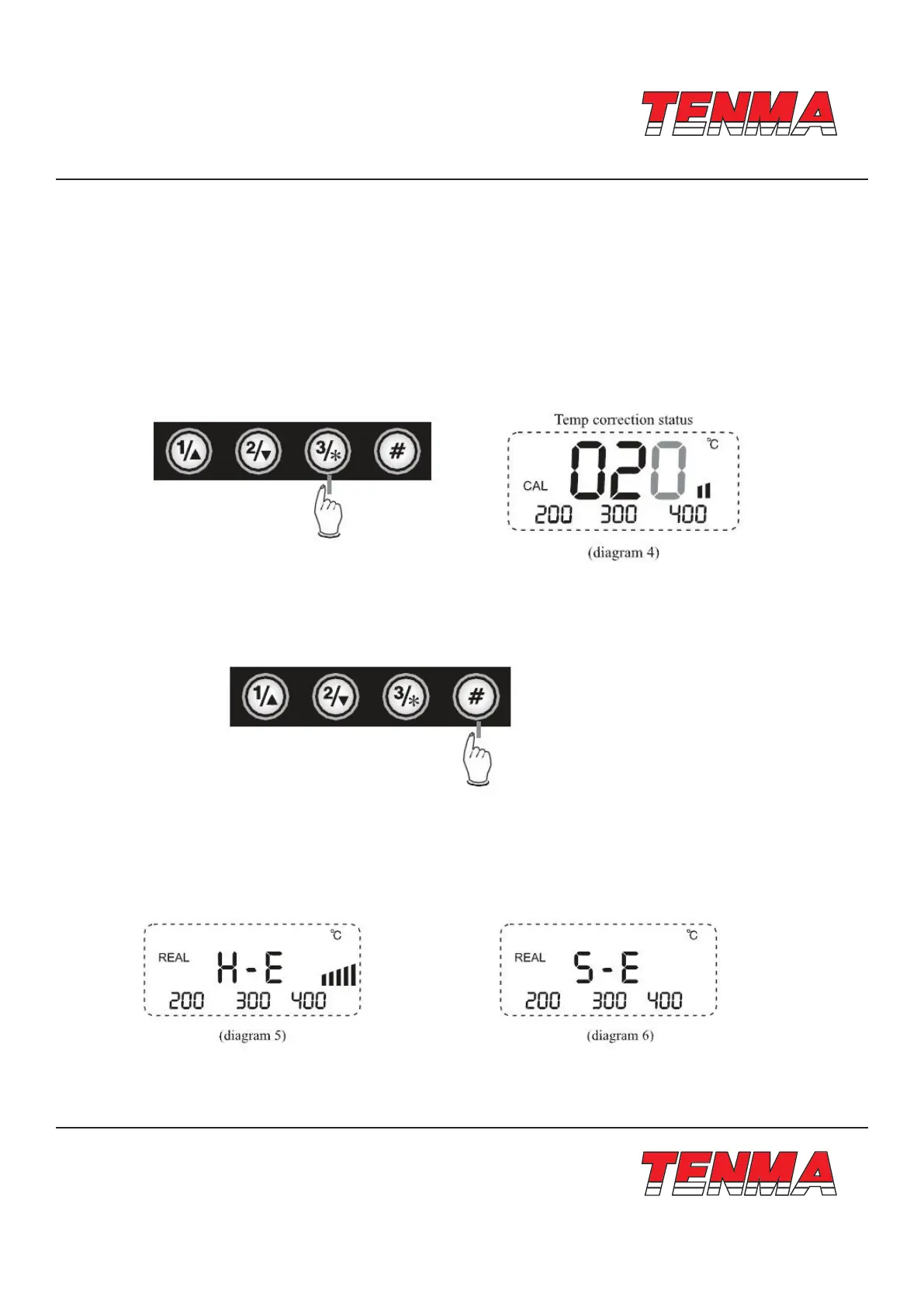

” to store after you nish calibration. (Diagram 4)
6. Temp. unit exchange
In the power off condition, press and hold knob “#”, then turn on the station, the temp unit will be changed
between “°C” and “°F” and store automatically
7. False alarm
When “H-E” or “S-E”is displayed on the screen, there is some wrong in heating element or the circuit.
(Diagram 5,6). Turn off the unit and follow the instructions to replace the heating element.
To Next Page
