Lift the inner
latch handle
to disengage
locking plate
Push down so
it latches at.
19, Once achieved, move the
handle to the closed
position and lock.
18, Do this until the handle
has strong resistance.
16, This will release the handle
and allow it to be cranked.
15, Release the Ratchet
lock by pushing the inner
latch upwards.
17, Pull the handle back
and begin cranking
it back and forth.

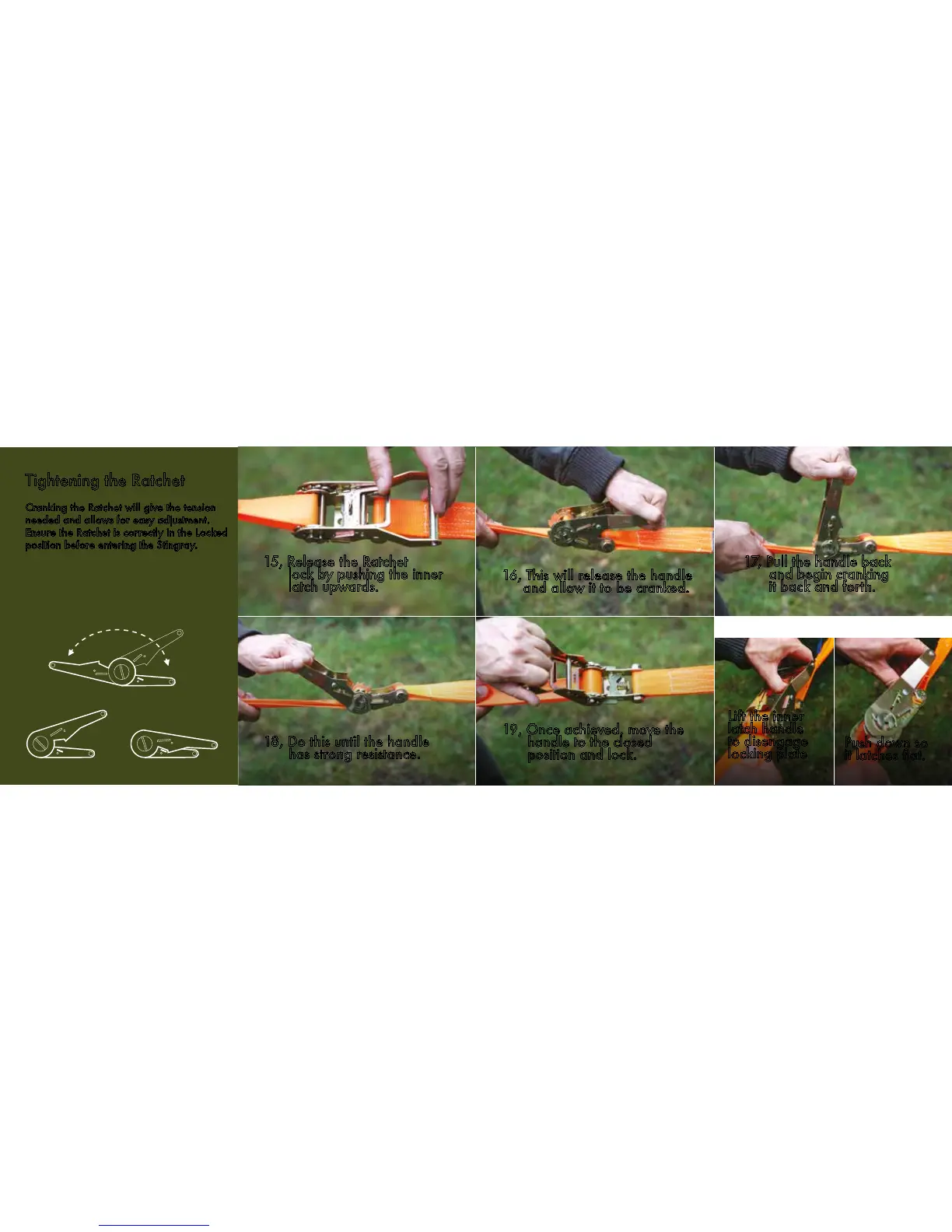

Tightening the Ratchet
Cranking the Ratchet will give the tension
needed and allows for easy adjustment.
Ensure the Ratchet is correctly in the Locked
position before entering the Stingray.
Attention - Ratchet Locking
Crank the Ratchet handle back & forth
7- 9 times to increase tension to straps.
15 16
UNLOCKED LOCKED
LOCKING RATCHET
