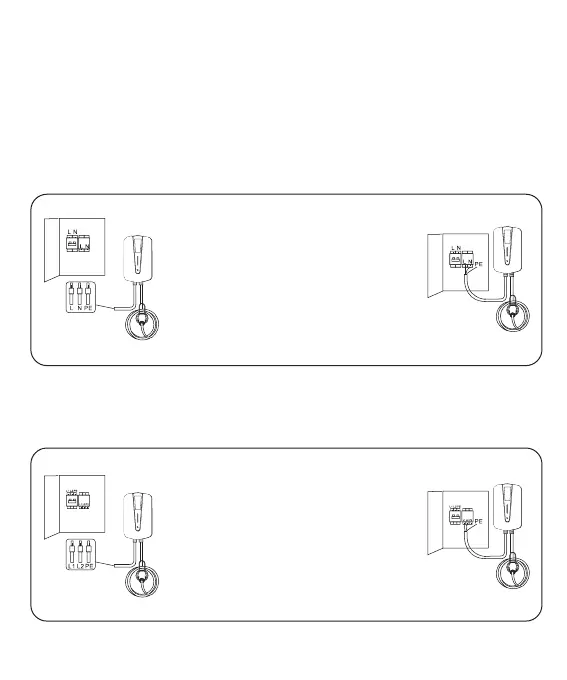

Follow these steps to wire the power for
Level 1 charging
Follow these steps to wire the power for
Level 2 charging
09
If a power distribution box is
being used, make sure to
connect the L1, L2 (Line 1 and
Line 2), and PE (Protective Earth)
ends of the input cable of the plug
to the corresponding L1, L2, and
PE ends of the circuit breaker
respectively.
If a power distribution box is
being used, make sure to
connect the L (Line), N (Neutral),
and PE (Protective Earth) ends
of the input cable of the plug to
the corresponding L, N, and PE
ends of the circuit breaker respectively.
Note:
1. Once the vehicle is fully charged, the device will automatically stop
charging.
2. Please read the instructions thoroughly before using the device.
