Making Connections
With Your New FM+ Antenna
Radio tuners and receivers can have different
connections for your new FM+ antenna. Please find
the connection that best matches your tuner or
receiver and follow the listed instructions.
FM Connections:
75 Ohm Coaxial:
Your TERK antenna has a Slip-On Coaxial connector
on the FM lead. Simply slide the connector onto the
coaxial terminal. See Fig. 1.
75 Ohm Push-Button Connection:
If your Radio tuner or receiver has Push-Button
terminals for FM you will need to use the supplied
RED 75 Ohm matching transformer. First slide the
RED 75 Ohm matching transformer into the connector
on the FM lead of the antenna. Next slide the Red wire
into the terminal marked “FM 75 Ohm”. Lastly
connect the BLACK wire into the terminal marked
“FM Ground” or “GND”. See Fig. 2.
FM+
1

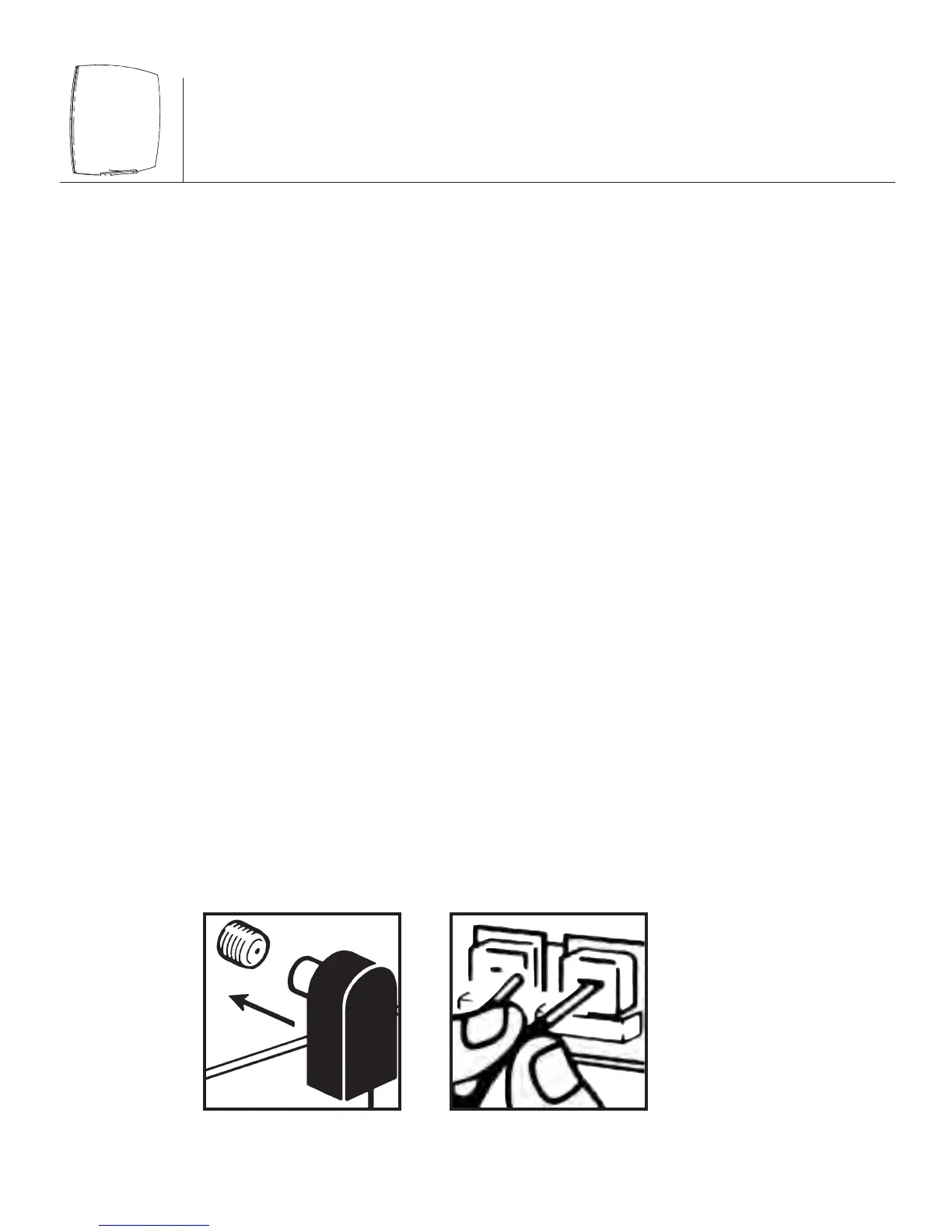

Fig. 1
Fig. 2
